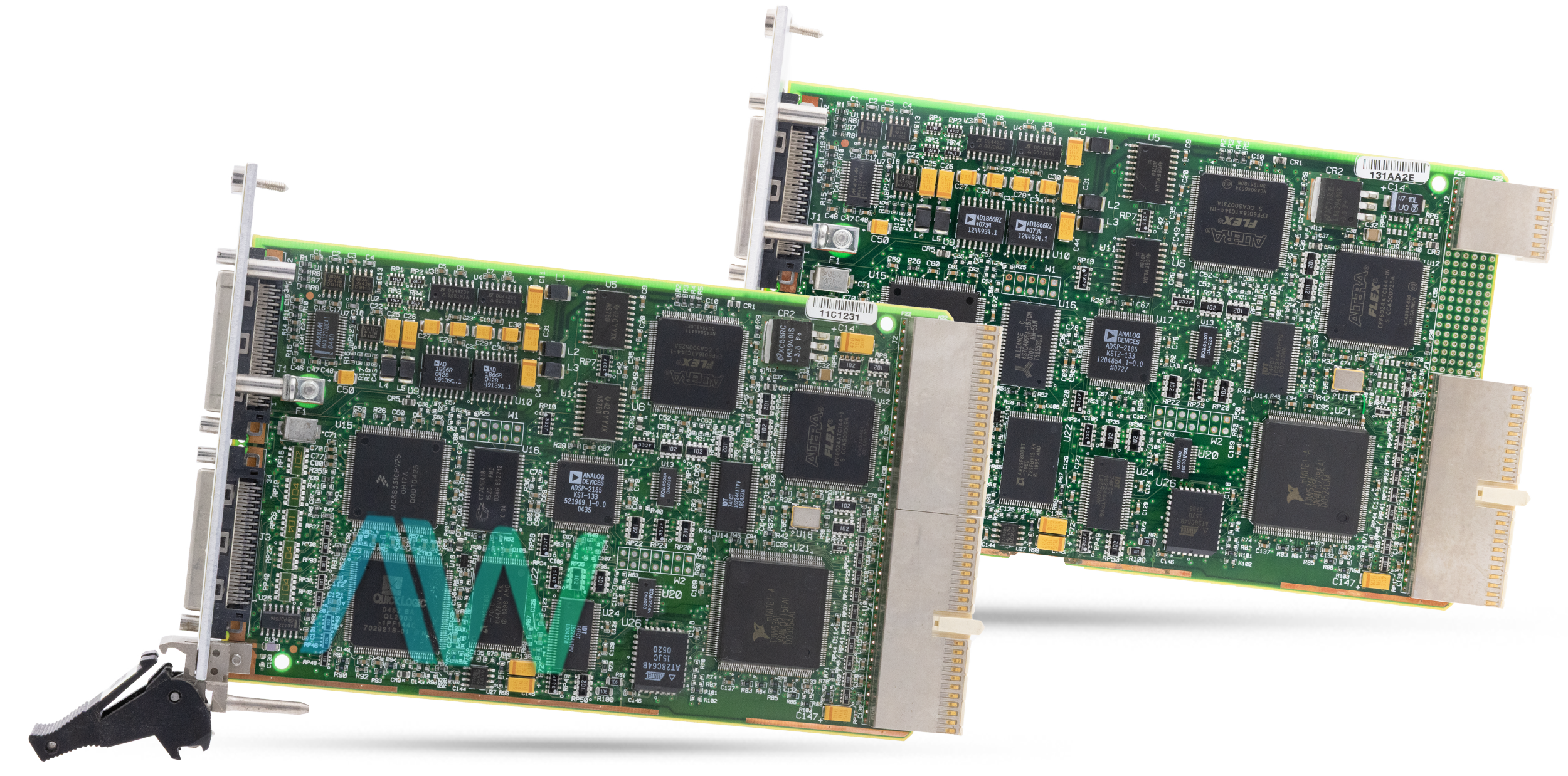

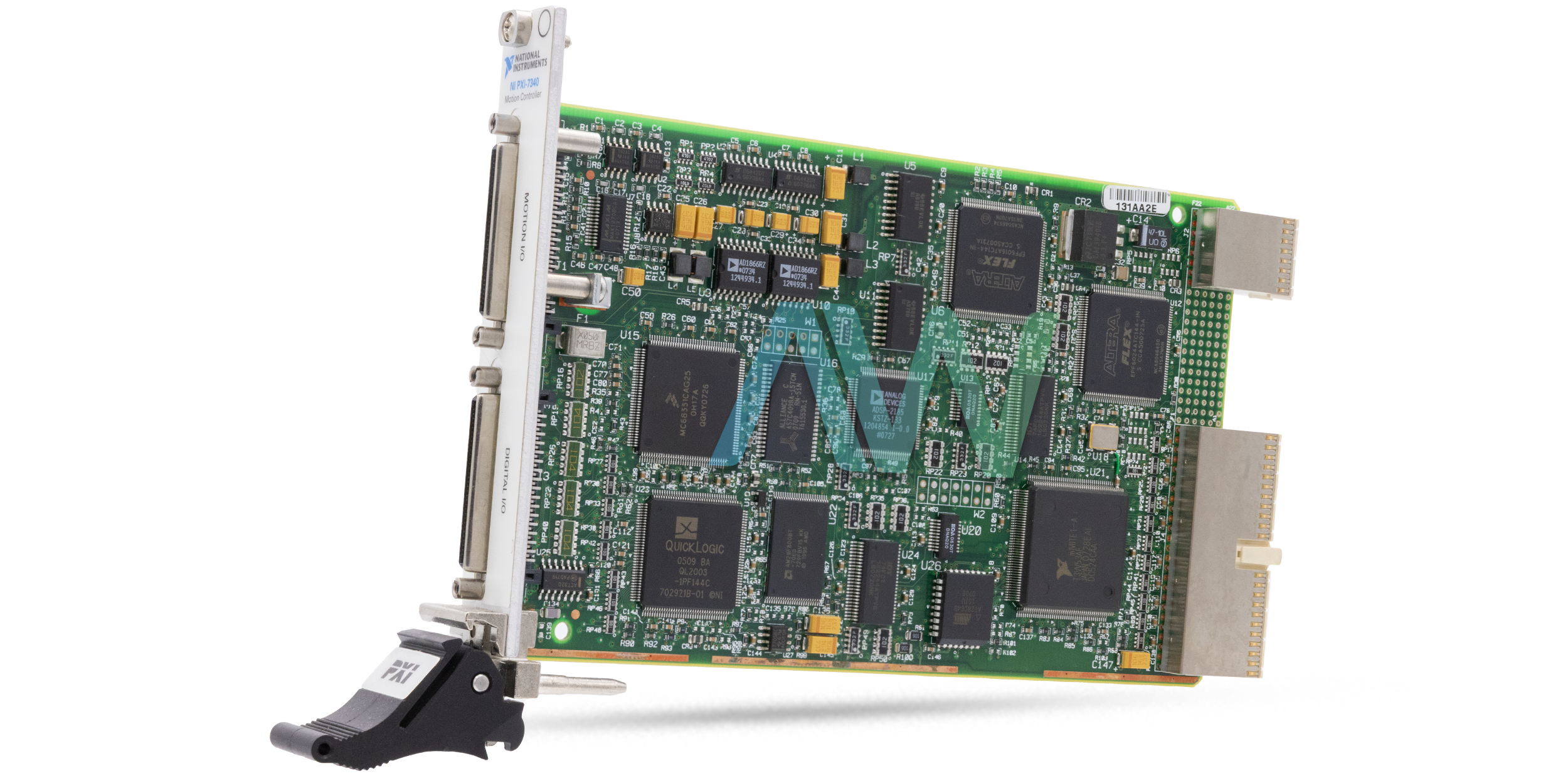

PXI-7344 National Instruments Stepper/Servo Motion Controller Module | Apex Waves | Image PXI-7344 National Instruments Stepper/Servo Motion Controller Module | Apex Waves | Image
PXI-7344 National Instruments Stepper/Servo Motion Controller Module | Apex Waves | Image
PXI-7344 National Instruments Stepper/Servo Motion Controller Module | Apex Waves | Image
Rate the PXI-7344
Rated 4.6/5 based on 10 ratings.

PXI-7344

Modular Systems > National Instruments > NI-73xx Series

Part Number PXI-7344
Manufacturer/Brand National Instruments
Description PXI-7344, 32 digital I/O channels, Stepper/Servo Motion Controller Module
In Stock - Ships Today
In Stock | Ships Today

Speak to a sales representative for pricing & lead time:


National Instruments PXI-7344 Stepper/Servo Motion Controller Module

Featured with advanced motion control, handy software tools, and motion VI libraries (to be used with LabVIEW), the NI PXI-7344 (Part Number: 777935-01) is a 4-Axis, PXI Stepper/Servo Motion Control Module. This controller is designed for PXI, PCI, and 1394 bus computers. With this model, the user can run as many as 10 motion programs at the same time in a real-time, preemptive, multitasking OS environment. This model comes featured with enhanced, PID/PIVff servo updates at a rate of 62 μs per axis. The NI PXI-7344 has motion Input/Output for home switch inputs, a breakpoint output, end-of-travel limit, trigger input, and up to 20 MHz encoder feedback rates.

The NI PXI-7344 is designed to support the National Instruments’ proprietary Real-Time System Integration (RTSI) bus. This bus offers high-speed and efficient connectivity between different products from National Instruments. The RTSI bus is an ideal solution for data acquisition (DAQ) and image acquisition (IMAQ) products. With this bus, the user can synchronize their NI PXI-7344 easily across multiple IMAQ, DAQ, or motion devices to a common timing or trigger event. There is a high density 68-pin female VHDCI connector provided for Motion I/O connections.

This model supports LabVIEW, which is an application software based on a graphical programming language. This program provides the user with sources required in the creation of 32-bit standalone executable and compiled programs. Thus, the user can consider the NI PXI-7344 as a viable solution for their custom automation requirements. In addition, National Instruments also offers the FlexMotion VI Library - a series of VIs (Virtual Instruments) for using LabView with the NI PXI-7344.

PXI-7344 Obsolete Status has been announced by National Instruments, but the motion controller will still be available for purchase and repairs by Apex Waves.

ModelPXI-7344, 777935-01
ManufacturerNational Instruments
SeriesNI-73xx Series
TypeStepper/Servo Motion Controller Module
Digital I/O Channels32
Input Resolution12
Axes4
WarrantyOne Year Warranty
PXI-7344 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-7344 Frequently Asked Questions



Question: Are you able to operate more than one motion control program at once with the PXI-7344?



Answer: Yes, the PXI-7344 has an onboard CPU that uses an embedded real-time operating system, which has event-driven multitasking control, so you can run several programs and processes simultaneously.



Question: What system do I go into to configure my NI PXI-7344 motion controller to control my stepper motor?



Answer: To configure your NI PXI-7344 motion controller to control the stepper motor, open MAX and go to the NI Motion Device.



Question: What operating systems does the PXI 7344 work on?



Answer: The PXI 7344 runs on Windows Vista/XP/2000 and LabVIEW Real-Time.

PXI-7344 Technical Specifications:


Manufacturer:National Instruments
Model:PXI-7344
Part Number:777935-01
Type:Stepper/Servo Motion Controller Module
Repair Evaluation:$150

Why Buy From Apex Waves

Delivery: UPS, FedEX and DHL – Free UPS Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All parts new, new surplus, used or reconditioned are covered by Apex Waves 1 Year Warranty
Returns: No hassle return policy.
Dedicated customer service team.
Payment:
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
Share this page:

PXI-7344

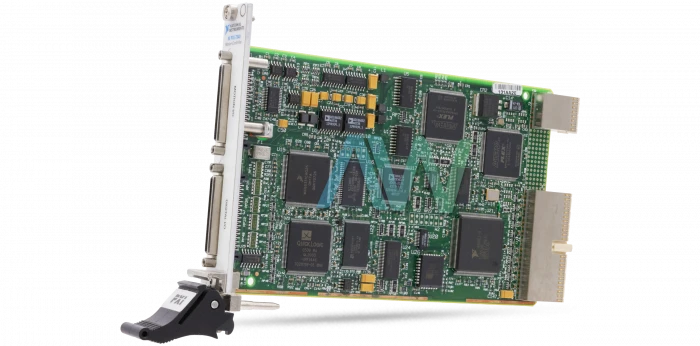

PXI-7344 National Instruments Stepper/Servo Motion Controller Module | Apex Waves | Image

Main Image

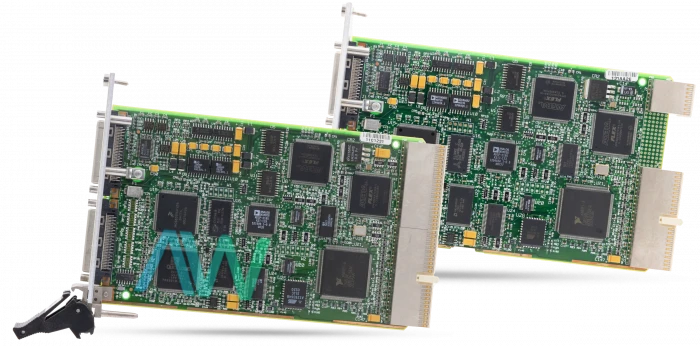

PXI-7344 National Instruments Stepper/Servo Motion Controller Module | Apex Waves | Image
