PCI-7330

Modular Systems > National Instruments > PCI Controllers

Part Number PCI-7330
Manufacturer/Brand National Instruments
Description PCI-7330 32-bit CPU Motion Controller
In Stock - Ships Today
In Stock | Ships 3-5 Days

Speak to a sales representative for pricing & lead time:


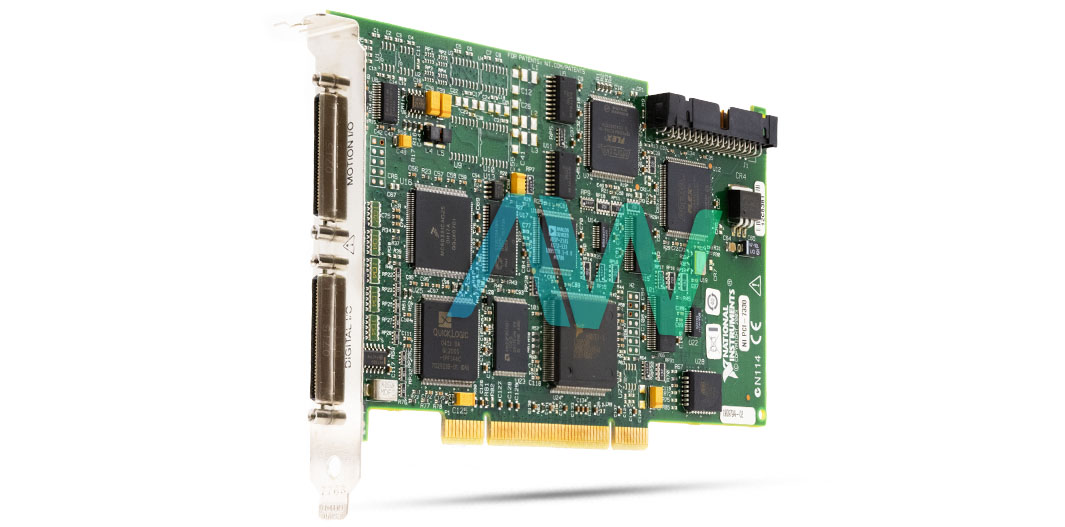

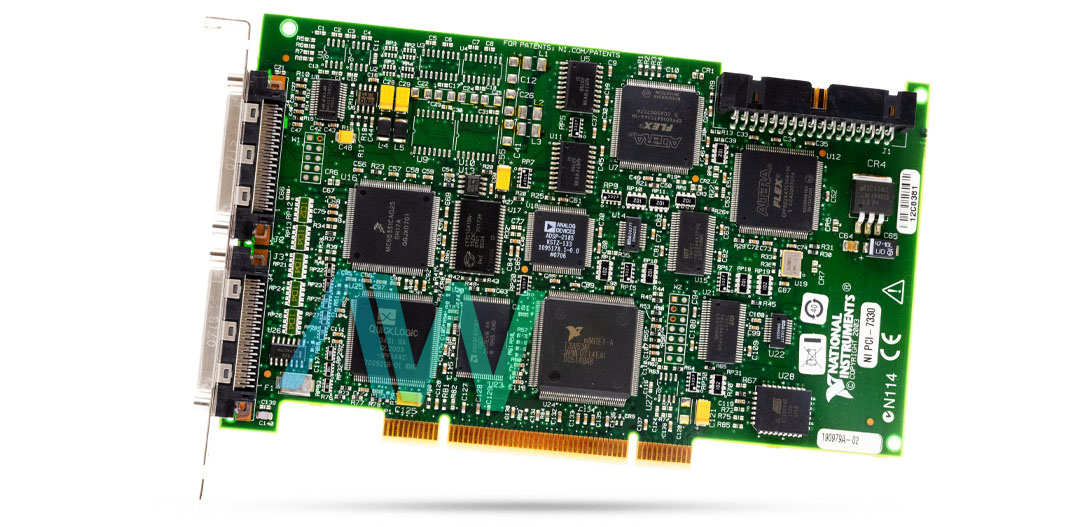

National Instruments PCI-7330 Motion Controller

The National Instruments PCI-7330 is a PCI based Stepper Motion Controller. This model offers fully programmable controlling for up to four coordinated or independent axes of motion. Moreover, it can also provide dedicated motional I/O for home and limit switches and various other general purpose I/O functions. This Motion Controller is a viable solution for straight line vector moves, as well as for applications involving point-to-point moves. With the NI PCI 7330, the user can achieve complex and arbitrary motion trajectories by utilizing stepper motors.

This Stepper Motion Controller comes with an integrated, dual-processor architecture consisting of a 32-bit central processing unit, custom FPGAs (field programmable gate arrays), and DSP. The FIFO (first-in, first-out) bus interface incorporated in this module offers efficient communications, while transmitting complicated motion trajectories to ensure optimum system performance and command throughput.

Stepper axes can be operated in either open-loop or closed-loop mode. In the closed-loop mode of operation, the stepper axes utilize analog inputs or quadrature encoders for velocity and position feedback and provide clockwise/counter-clockwise digital command outputs. Each axis of the National Instruments PCI-7330 has various motion I/O, including: encoder feedback, a home switch input, end-of-travel limit, etc. All signals are contained by the motion I/O connector of the device. Moreover, this Controller also has four analog inputs and one 32 bit digital I/O. The analog inputs provided on this controller can be used for joystick inputs, ±10 V signals, as well as for the monitoring of analog sensors.

ModelPCI-7330
ManufacturerNational Instruments
TypeMotion Controller
Trajectory Update Rate Range62.5 to 500 µs/sample
Maximum Step Frequency4 MHz (full, half, and microstep)
Step Output ModeStep and direction or CW/CCW
Number of Inputs8 multiplexed, single ended (12 bits)
Number of Outputs4 (1 per axis)
Input Voltage Range0 to 5 V
Output Voltage Range0 to 5 V
Digital I/O4 Ports (8-bit)
PWM Outputs2 (50 kHz, 8-bit)
Power Consumption5.7 W
Power Requirements+5, +12 V, –12 V -- 1 A, 30 mA, 30 mA
Motion I/O Connector68-pin Female High-Density VHDCI
32-bit Digital I/O Connector68-pin Female High-Density VHDCI
Dimensions6.9 in. × 3.9 in
Weight0.25 lb.
Software DriverNI-Motion
WarrantyOne Year Warranty
PCI-7330 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PCI-7330 Frequently Asked Questions



Question: Why doesn’t my PC detect PCI-7330? It says PCI-7334 is found but not PCI-7330.



Answer: PCI-7330 is the name of the board family, which includes models PCI-7332 and PCI-7334. If MAX detects a PCI-7334, your system is working with no problems. Be sure to configure and initialize your hardware before using it.



Question: What does it mean when I have an error that says “This device cannot start (Code 10)” when trying to install NI PCI 7330?



Answer: If you get the error “This device cannot start” when trying to install NI PCI 7330, make sure that you have installed the NI-Motion drivers that came with the PCI card.



Question: How many analog input ports does the NI PCI-7330 have?



Answer: The NI PCI-7330 has 4 analog input ports.



Question:  Which version of NI-Motion supports the PCI 7330?



Answer: NI-Motion 8.1 is the version that’s compatible with the PCI 7330

PCI-7330 Technical Specifications:


Manufacturer:National Instruments
Model:PCI-7330
Type:Motion Controller
Repair Evaluation:$150

Why Buy From Apex Waves

Delivery: UPS, FedEX and DHL – Free UPS Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All parts new, new surplus, used or reconditioned are covered by Apex Waves 1 Year Warranty
Returns: No hassle return policy.
Dedicated customer service team.
Payment:
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
