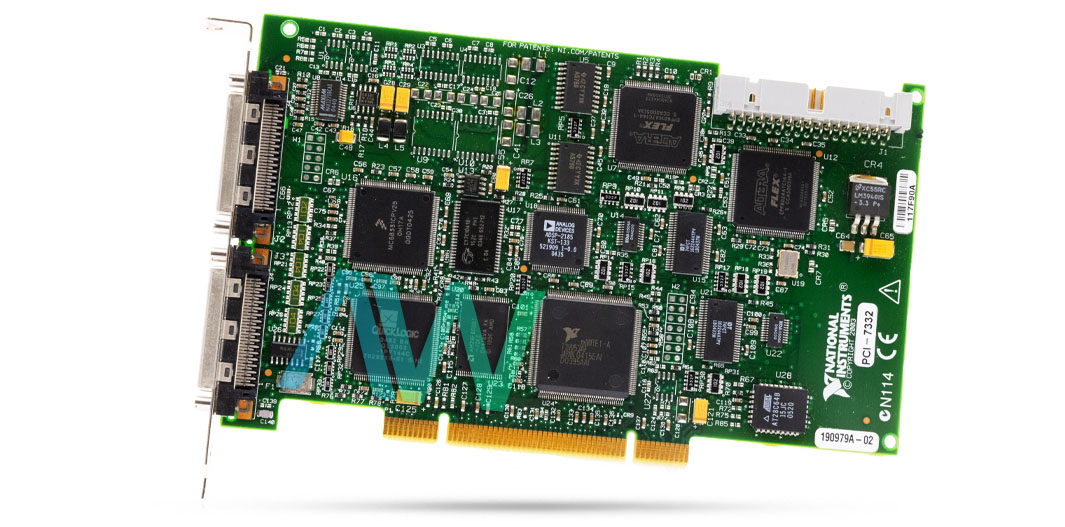

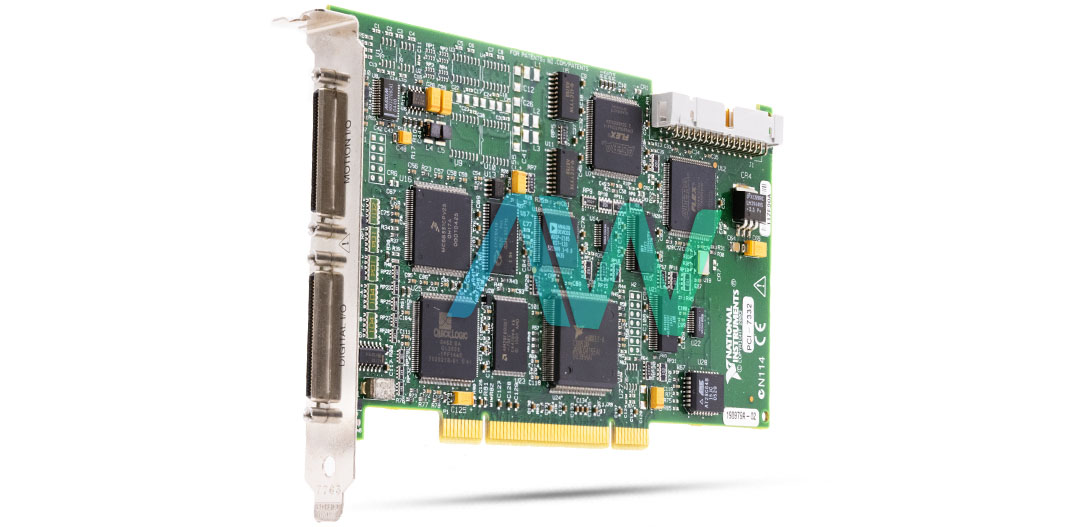

National Instruments PCI-7332 Motion Controller Device

The National Instruments PCI-7332 (Part Number: 778924-02) a 2-Axis Stepper Motion Controller designed for various motion applications. This device offers real-time system integration for direct communications with image acquisition or data acquisition devices and additionally allows linear interpolation. This feature enables the user to achieve coordination between multiple axes. The NI PCI-7332 can also be coupled with a stepper generation system for ensuring gentle motion in high velocity applications. This device is perfect when utilizing stepper motors for applications where solely simple motion is necessary.

With this Motion Controller, the user can utilize National Instruments Motion Assistant- a graphical prototyping tool that can be used in a broad range of applications. This Motion Controller comes with the RTSI bus and can communicate with other devices directly, eliminating the requirement of any additional wiring. Moreover, this synchronization arrangement through the dedicated RTSI bus also prevents the consumption of bandwidth on the host bus. The National Instruments PCI-7332 device comes with a motion I/O connector that contains all of the required signals, including: trigger inputs, inhibit outputs, encoder feedback inputs, breakpoint outputs, forward input, reverse limit input, home input, etc.

For general purpose analog input or analog feedback, the I/O connector has four 12-bit A/D input channels as well. In addition, a separate, 68-pin digital I/O connector is also provided for various digital I/O lines. The NI PCI 7332 Motion Controller Device offers two PWM (pulse width modulation) outputs through its digital I/O connector. These PWM outputs can be used for the generation of periodic waveforms with controlled period and duty cycles.

Each NI PCI-7332 requires:

-MID-7602 Stepper Motor Drive: 778003-01 and 778003-05

-SHC68-C68-S 0.5 m Cable: 186380-0R5

-UMI-7764 Universal Motion Interface: 777978-02

-SH68-C68-S 2 m Cable: 186381-02

PCI-7332 End of Life Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.

ModelPCI-7332
ManufacturerNational Instruments
Part Number778924-02
TypeMotion Controller Device
Axes2
Maximum Step Output Rate4 MHz
DriverNI-Motion
Dimensions6.9 by 3.9 in.
I/O Connector68-pin female high-density VHDCI type
WarrantyOne Year Warranty
PCI-7332 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PCI-7332 Frequently Asked Questions



Question: What is the encoder input rate of the NI PCI-7332?



Answer: The encoder input rate of the NI PCI-7332 is 20 MHz.



Question: What is the power consumption of the PCI-7332?



Answer: The power consumption of the PCI-7332 is 5.7 W, maximum.



Question: Which type of encoder inputs does the PCI 7332 have?



Answer: The PCI 7332 has single-ended, incremental, and quadrature encoder inputs.



Question: How much does the NI PCI 7332 weigh?



Answer: The NI PCI 7332 weighs around 4 oz.
