PCI-7354
Modular Systems > National Instruments > PCI Controllers
| Description: | PCI-7354, 4-Axis, Stepper/Servo Motion Controller Device |
(expedited shipping options available)
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

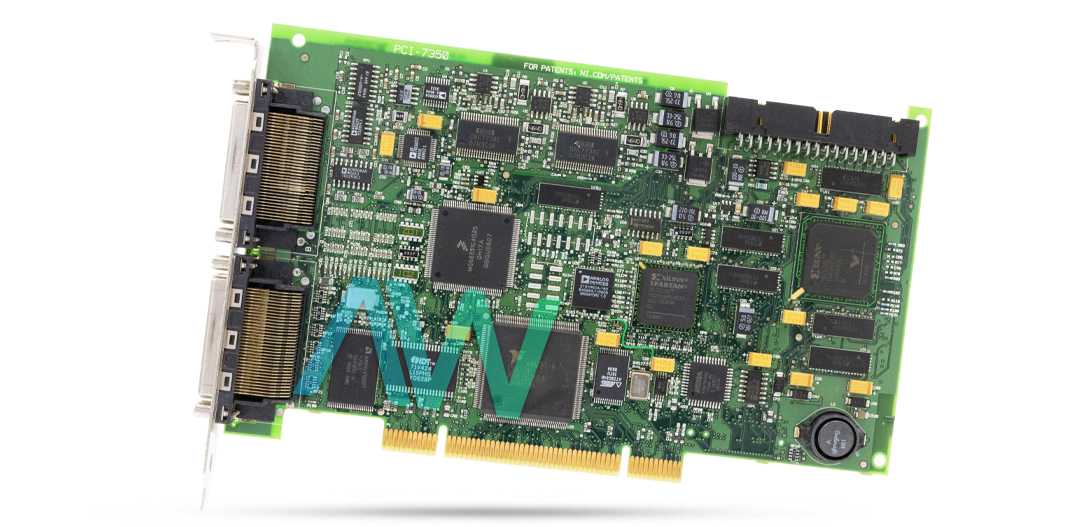

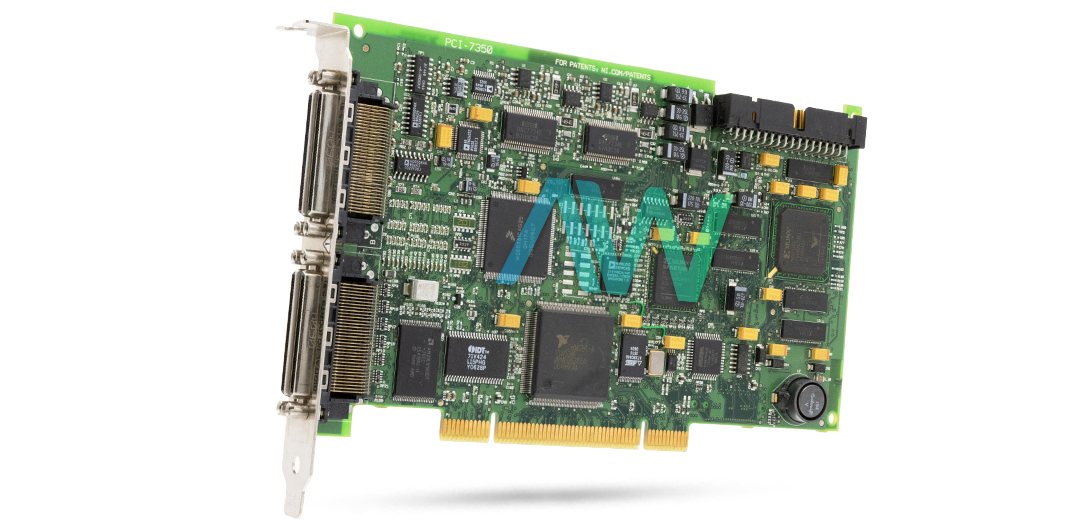

National Instruments PCI-7354 Motion Controller Device
The National Instruments PCI-7354 (Part Number: 778440-04) is a 4-Axis, Efficient Stepper and Servo Motion Controller for both general and complicated applications. For onboard data acquisition, this model comes equipped with eight 16-bit A/D converters. These analog-to-digital converters are utilized in advanced triggering and motion trajectory. The NI PCI-7354 is compatible with brushless motors because it offers sinusoidal commutation. The device is equipped with 12 input and 4 output channels, with an input and output voltage range of 0 to 5 V. It has eight 8-bit digital I/O ports, and 2 8-bit PWM outputs with a frequency of 50 kHz.
This Motion Controller offers smooth stepper motion because it comes incorporated with patented step generation technology. Since this model is a 4-axis version, it is an ideal solution for high-axis parallel systems where a tight synchronization between all axes is required at a feasible cost. Therefore, this model is viable for users who require a high-axis count and superior performance in a small package. The NI PCI-7354 is fully compatible with National Instruments LabVIEW Real-Time Module. The user can create an integrated I/O and motion control system that operates embedded in a real-time operating system.
With this Controller, users can enjoy better performance with the high PID update rate (up to 62.5 µs) and better analog-to-digital conversion resolution. Subsequently, users can achieve better analog position feedback resolution. The NI PCI-7354 offers 8 MHz step output rate (max) and 20 MHz encoder input rate. The absolute position range is ±231 counts, s-curve time range is 1 to 32,767 samples, and it can operate with a following error range of ±32,767 counts. It is equipped with a 68-pin female high-density VHDCI motion I/O connector, and a 68-pin female high-density VHDCI digital I/O connector. The NI PCI-7354 consumes 18 Watts of maximum power and can be used in any PCI port.
Each NI PCI-7354 requires:
-MID-7604 Stepper Motor Drive: 777936-01
-MID-7654 Servo Motor Drive: 778005-01 and 778005-05
-SHC68-C68-S 0.5 m Cable: 186380-0R5
-UMI-7774 Universal Motion Interface: 778558-01
-SHC68-C68-S 2 m Cable: 186380-02
PCI-7354 End of Life Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.
| Model | PCI-7354 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778440-04 |
| Type | Motion Controller Device |
| Mode | Stepper, Servo |
| Number of Axes | 4 |
| Trajectory Update Rate Range | 62.5µs/sample to 5 ms/sample (Servo) 62.5 to 500 µs/sample (Stepper) |
| Number of Axes per 62.5 µs PID Rate | 62.5 µs per 2 axes |
| Maximum Step Frequency | 8 MHz (full, half, and microstep) |
| Encoder Input Rate | 20 MHz |
| Step Output Mode | Step and Direction or CW/CCW |
| Number of Inputs | 12 (3 Per Axis) |
| Number of Outputs | 4 (1 per Axis) |
| Input Voltage Range | 0 to 5 V |
| Output Voltage Range | 0 to 5 V |
| Digital I/O | 8 Ports (8-bit) |
| PWM Outputs | 2 (50 kHz, 8-bit) |
| Power Consumption | 18 W |
| Power Requirements | +3.3V, +5, +12 V, –12 V -- 2 A, 2 A, 30 mA, 0 mA |
| Motion I/O Connector | 68-pin Female High-Density VHDCI |
| 32-bit Digital I/O Connector | 68-pin Female High-Density VHDCI |
| Dimensions | 6.9 in. × 3.9 in |
| Weight | 0.25 lb. |
| Software Driver | NI-Motion |
| Warranty | Three Year Warranty |
| PCI-7354 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PCI-7354:
190975B-04, 190975C-04, 190975D-04L, 190975E-04L, 190975F-04L, 778440-04
National Instruments PCI-7354 Frequently Asked Questions
Question: Which type of applications is the NI PCI-7354 recommended for?
Answer: The NI PCI-7354 is recommended for simple and complex motion applications.
Question: Which type of accelerometer would be best to use with the PCI-7354?
Answer: The accelerometer you choose would be determined by the device that you’re acquiring data from and the speed that you want to gather the data. Once you determine this, look for an accelerometer within this data range.
Question: I am using the PCI-7354 and can control open loop type but cannot control the closed loop type. How can I find information on this?
Answer: When using the PCI-7354, press “CTRL + H” to bring up show context help. Then hover over “Load all PID Parameters.flx”. You should see “Show detailed help” to guide you to use this function.
PCI-7354 PDF Manuals
GETTING STARTED WITH NI 7340 7350 MOTION CONTROLLERS AND AKD SERVO DRIVES.PDF
GETTING STARTED WITH NI MOTION FOR NI 73XX MOTION CONTROLLERS.PDF
NI PCI AND PXI 735X LETTER OF VOLATILITY.PDF
