PXI-4224

4.9/5 | 16 ratings

Modular Systems > National Instruments > PXI Analog Input Modules

Part Number PXI-4224
Manufacturer/Brand National Instruments
Description: PXI-4224, 8-Channel, PXI Analog Input Module
In Stock | Ships in 5-10 Days
(expedited shipping options available)
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

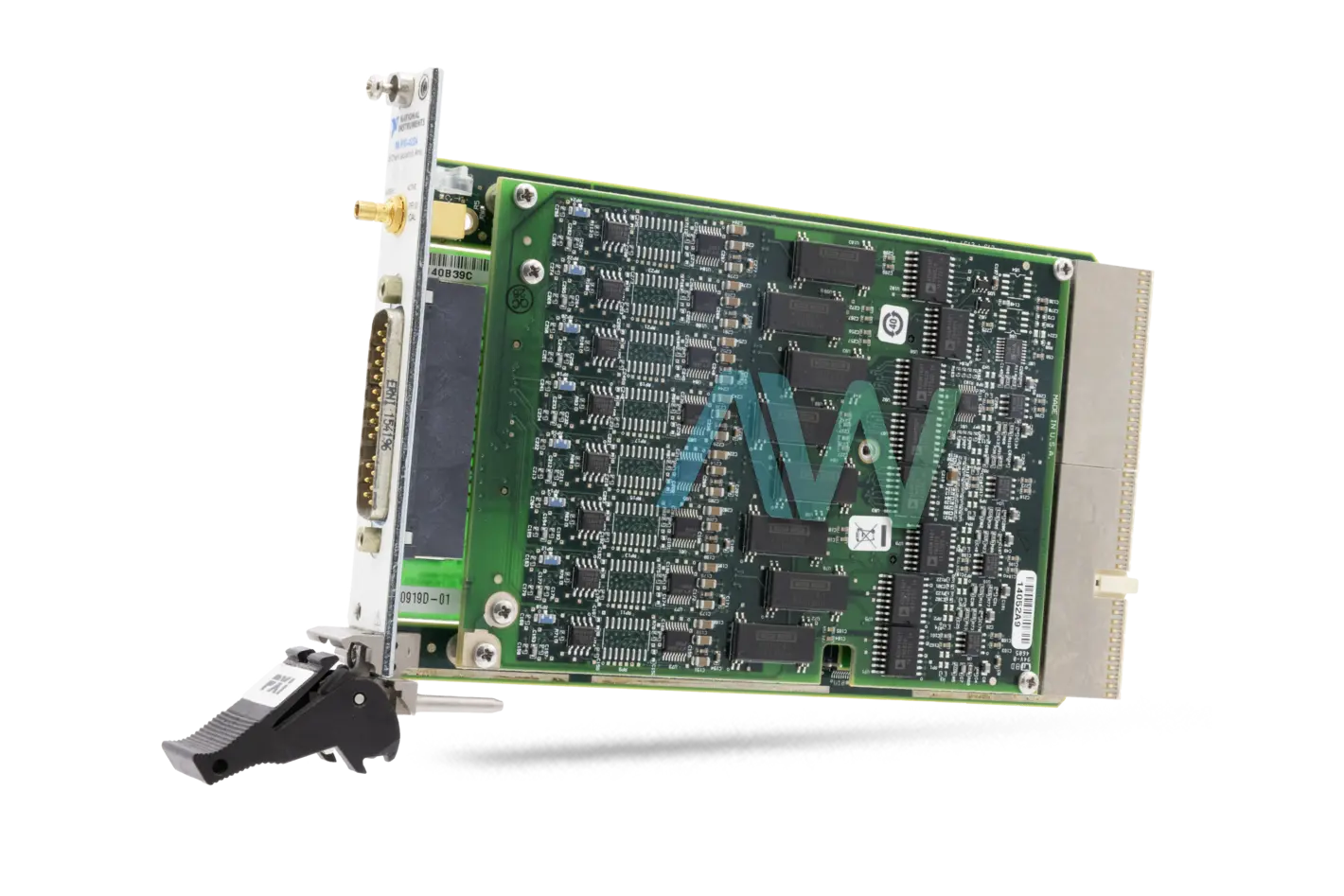

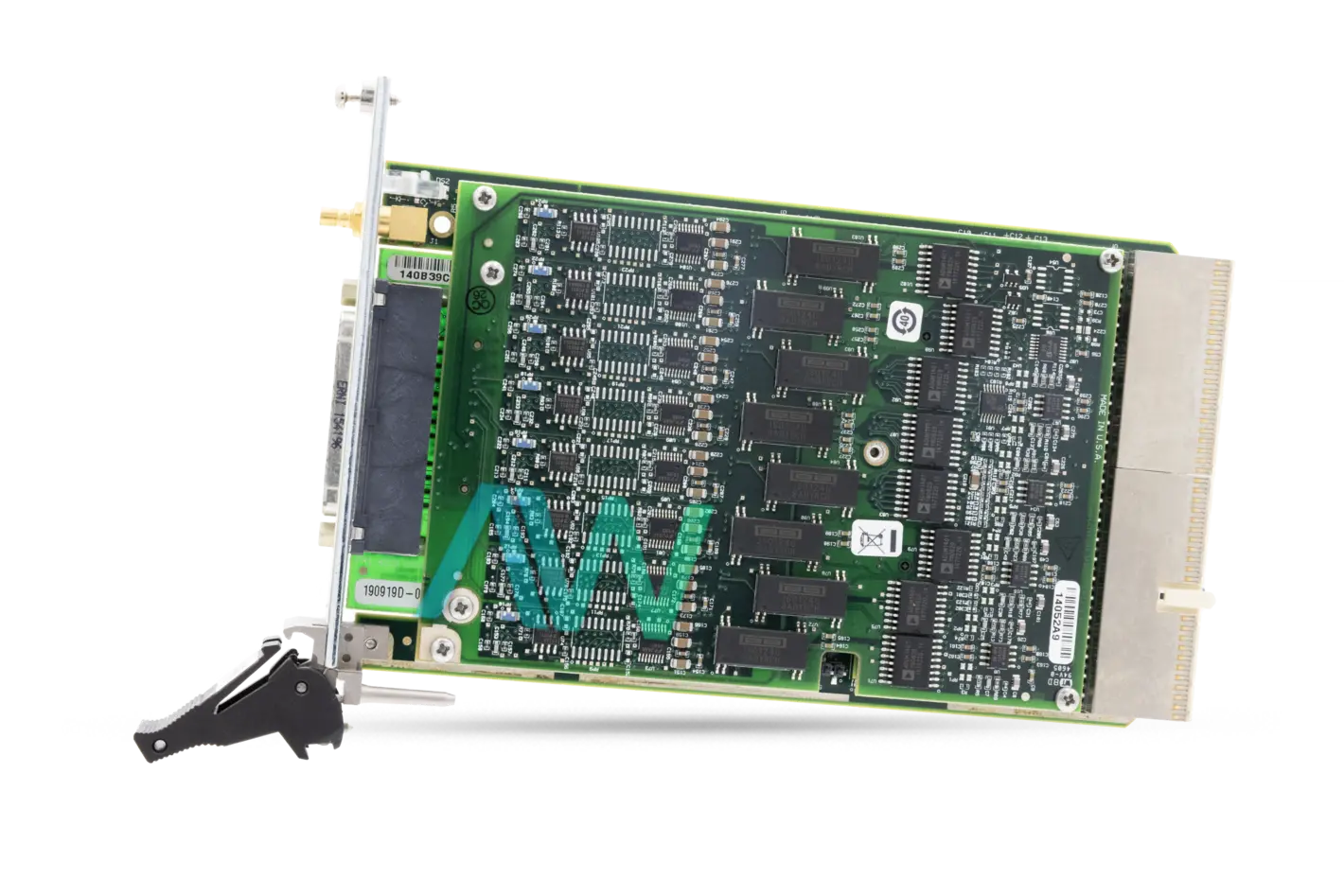

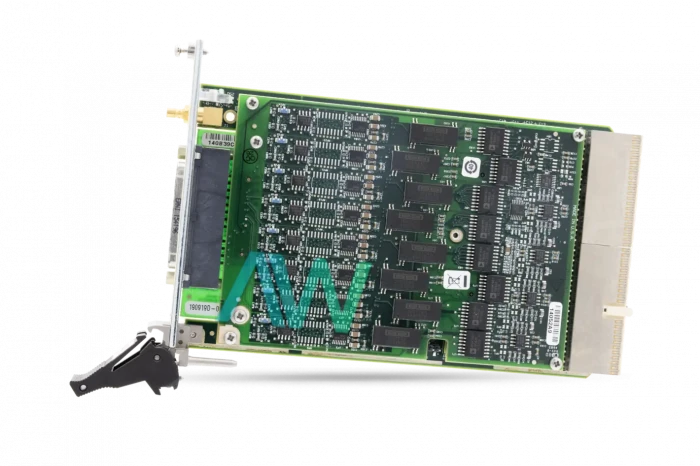

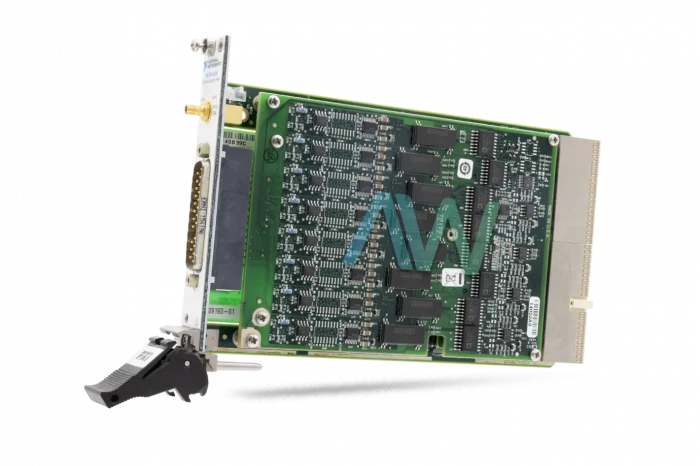

National Instruments PXI-4224 PXI Analog Input Module

The National Instruments PXI-4224 (Part Numbers: 779182-01, 191288F-02) is a channel-to-channel isolated Analog Input Module with built-in signal conditioning. The PXI-4224 isolation guarantees exact, safe estimations even within the presence of high common-mode voltages. It is a perfect answer for an expansive assortment of utilizations, including separated thermocouple estimations, multichannel data logging, and fuel cell and battery test. This model gives 60 VDC (42 Vrms) CAT I channel-to-channel isolation and offers programmable gain settings per channel to guarantee maximum estimation exactness. The included NI-DAQmx driver simplifies hardware configuration and estimation automation.

The NI PXI-4224 connection interface consists of a 25-pin D-SUB connector and one SMB connector. The user can program SMB connectors as a PFI 0 line or for external calibration, with each set of screw terminals labeled according to the corresponding differential input signal for the NI PXI-4224. To associate a signal to the NI PXI-4224, utilize a TB-2725 terminal block designed particularly for the NI-PXI-4224, or utilize a 25-stick D-SUB to build a connector to suit the application. To associate a ground-reference signal source to the NI PXI-4224, the signal (V+) is associated with the NI PXI-4224 channel (AI X +). The signal SIG reference (V–) is associated with the channel reference (AI X –). The association with this signal source is indistinguishable to the ground-referenced signal association with the expansion of shielding around the field wiring. This shielding scheme is successful at decreasing capacitive or electrically coupled noise. Similar concerns regarding the difference in ground possibilities also apply to this configuration.

PXI-4224 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelPXI-4224
ManufacturerNational Instruments
Part Numbers779182-01, 191288F-02
TypePXI Analog Input Module
Differential Analog Input Channels8
Maximum Sample Rate200 kS/s
Analog Input Resolution16 bits
Dimensions8.39 x 5.12 x 0.79 in.
Weight9.8 oz.
WarrantyThree Year Warranty
PXI-4224 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PXI-4224:

187.774, 187774C-03, 187774D-03, 187774F-03, 1912.88, 191288A-02, 191288B-02, 191288C-02, 191288D-02, 191288F-02, 191288G-02L, 779182-01

National Instruments PXI-4224 Frequently Asked Questions



Question: What is the analog input voltage range for the PXI-4224?



Answer: The PXI-4224 has an analog input voltage range of -10 V to 10 V or -1 V to 1 V.



Question: Does the PXI-4224 Analog Input Module have an anti-alias filter?



Answer: No, the PXI-4224 Analog Input Module does not have an anti-alias filter.



Question: What is the minimum pulse width on the PXI-4224?



Answer: The minimum pulse width on the PXI-4224 is 10 ns.



Question: What is the analog input isolation on the NI PXI-4224?



Answer: The analog input isolation on the NI PXI-4224 is 60 V Ch-Ch Isolation.
