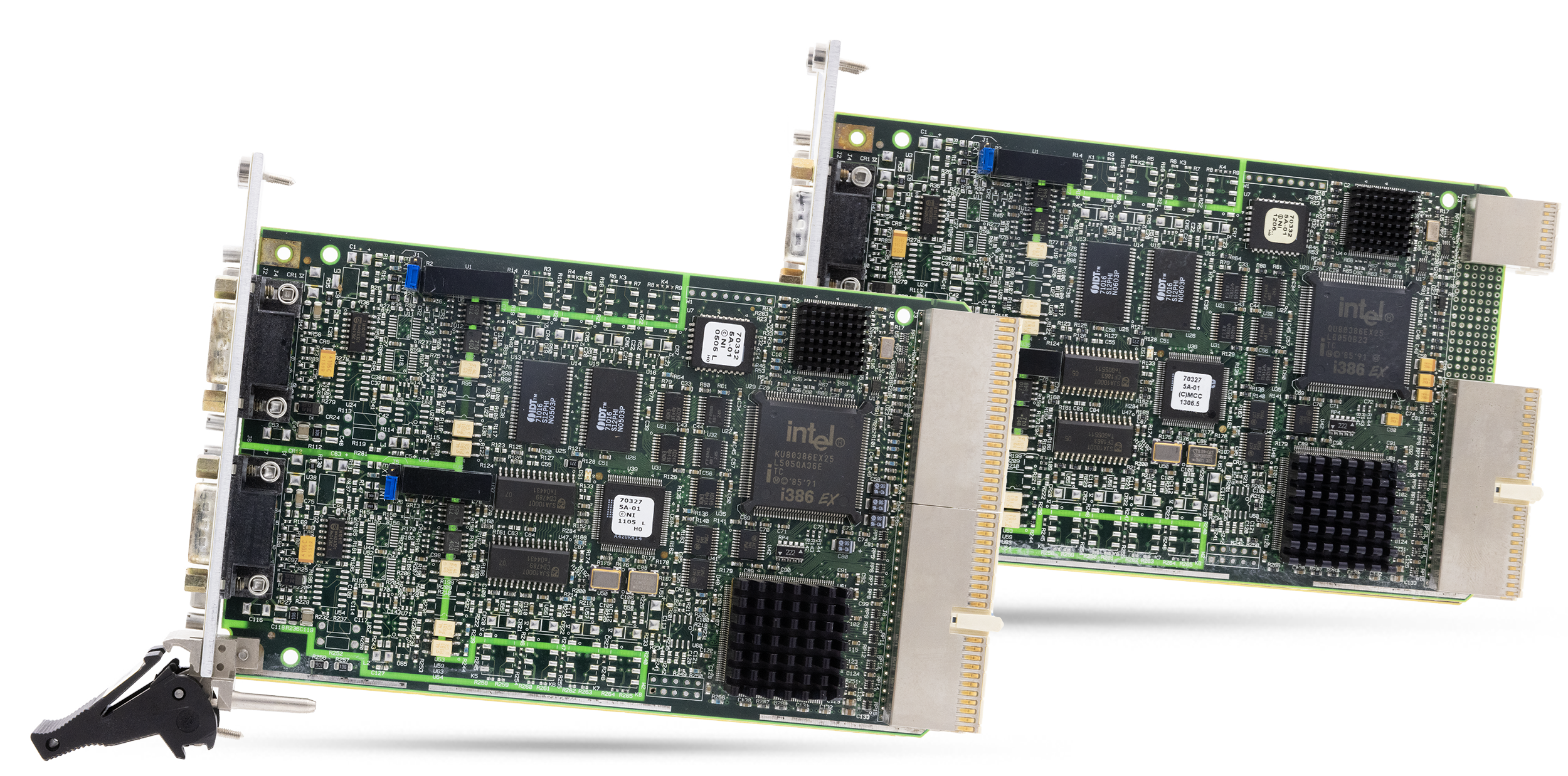

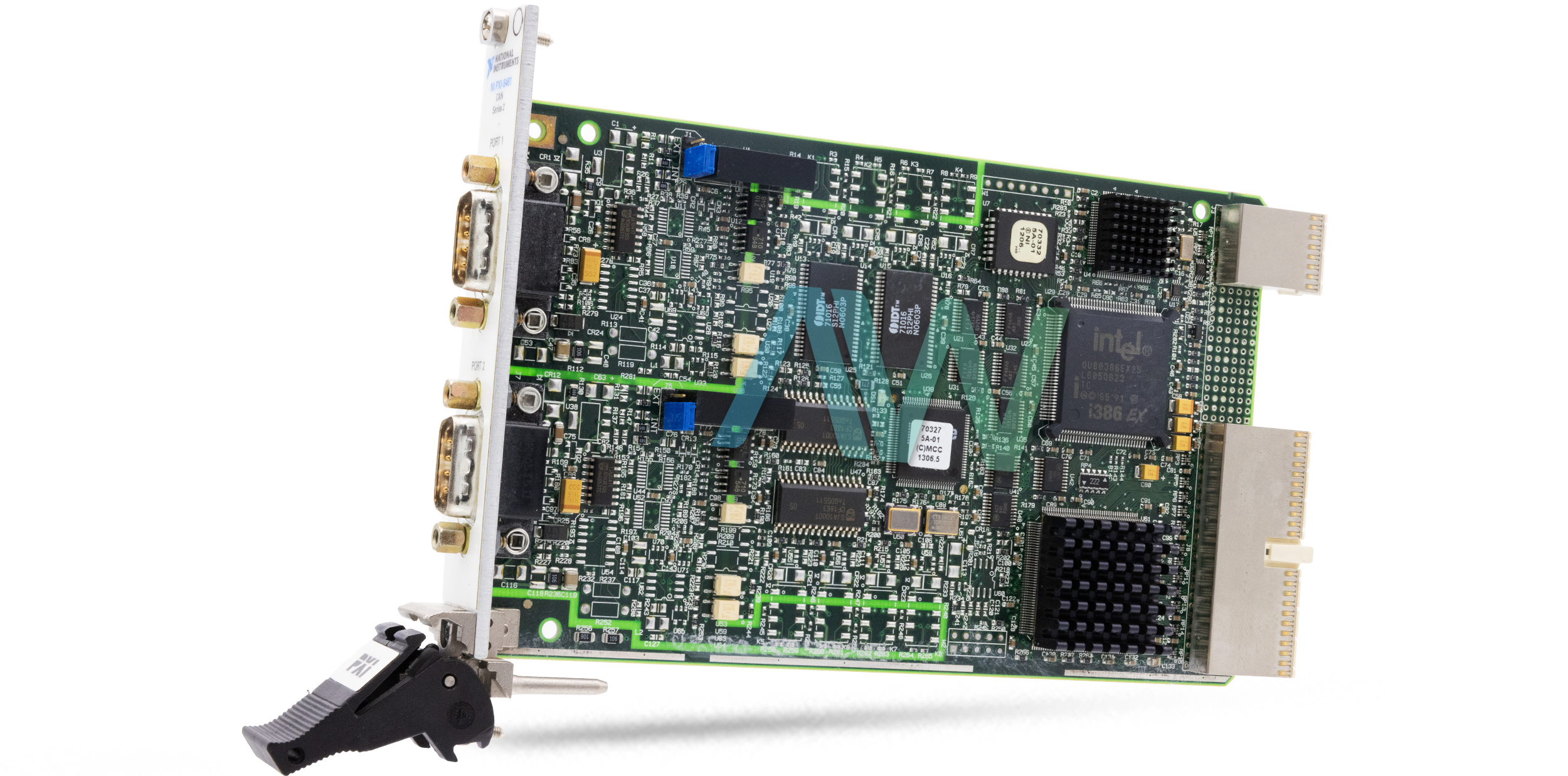

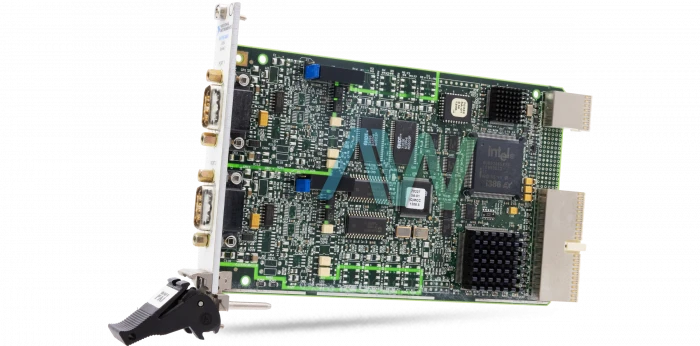

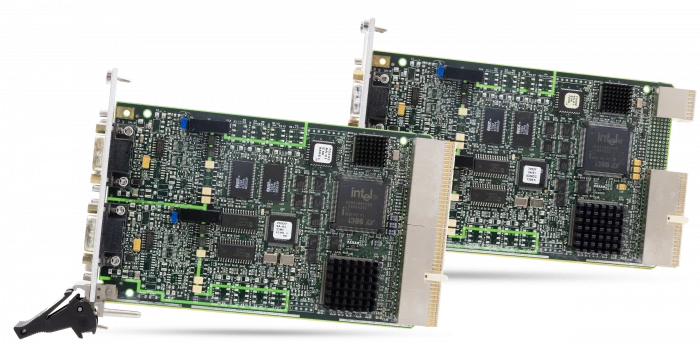

PXI-8461-2
PXI-8461-2 alt2
PXI-8461-2 New small
PXI-8461-2 Refurb small

Pictures shown are a representation. Actual item may vary if no part number is provided on quote request.

Same Day Calibration Available

2-3 Year Warranty Included

Free Ground Shipping

Or speak to a sales representative for additional information:

PXI-8461-2 In Stock | Ships Today

PXI-8461/2, 2-Port, PXI CAN Interface

Rated 5/5 | 10 ratings

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXI-8461/2 CAN Programming Interface

The PXI 8461/2 (Part Number: 777707-02) is a fast CAN Programming Interface. With the NI-CAN programming, the user can import CAN database documents that use the Vector (.dbc) format. A CAN frame can contain different qualities. When the user imports scale data from the database documents, they can effortlessly change over these qualities into channels with engineering units (as ° C or kPa). The user can also import scale data straightforwardly in an application or in Measurement and Automation Explorer (MAX), where channels can be altered. On the other hand, the user can design channels straightforwardly in MAX. The user can communicate with a specific CAN channel without programming using Test Panel, a straightforward troubleshooting device to experiment with CAN channels. Utilizing a graphical interface, the tool reads CAN data in engineering units and plots or writes to the gadget. To rapidly screen all CAN bus activity, utilize the Bus Monitor, a utility that gives a simple-to-utilize interface to see all CAN movement and log it to a disk. It likewise gives alternatives to control, show, and view bus insights. The PXI 8461/2 has a DB-9 male I/O connector for each channel.

NI Spy is a function included which gives the user a simple method to screen the NI-CAN API calls without having to recompile or rebuild. Utilize it to check that the application is working legitimately, examine issues with the application, or confirm the communication with the CAN gadget. NI Spy progressively catches and shows all NI-CAN API calls made by any applications running in the framework. The device is equipped with 2 ports, has a maximum transfer rate of 1,000 kb per second, and a typical current requirement of 850 mA.

The PXI 8461/2 is operated using the NI-CAN software for Windows NT which is installed before the hardware installation. The device can be programmed using addition software packages like LabVIEW, LabWindows/CVI, or BridgeVIEW. The NI device measures 6.3 x 3.9 in. in physical dimensions.

PXI 8461/2 Maintenance Status has been announced by National Instruments, but the interface will still be available for purchase and repairs by Apex Waves.

ModelPXI-8461/2 (777707-02)
ManufacturerNational Instruments
TypePXI-CAN Interface
Ports2
Maximum Transfer Rate1,000 kb/s
Typical Current850 mA
Dimensions6.3 x 3.9 in.
I/O ConnectionsDB9 male for each channel
WarrantyThree Year Warranty
PXI-8461/2 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXI-8461-2:

National Instruments PXI-8461/2 Frequently Asked Questions



Question: What is the operating temperature recommended for the PXI-8461/2?



Answer: The PXI-8461/2 has a recommended operating temperature of 0 to 55 degrees C.



Question: Which advanced functions does the Philips SJA1000 CAN controller allow the NI PXI-8461/2 to access?



Answer: The Philips SJA1000 CAN controller enables the NI PXI-8461/2 to be used for the following advanced functions: self-reception, listen-only, as well as advanced filtering modes and new transceivers for sleep/wake-up mode support.



Question: How many ports does the PXI-8461/2 have?



Answer: The PXI-8461/2 has two ports.



Question: Where can I find the user manual for the NI PXI-8461/2?



Answer: The NI PXI-8461/2 user manual is available on apexwaves.com and can be downloaded for free.
