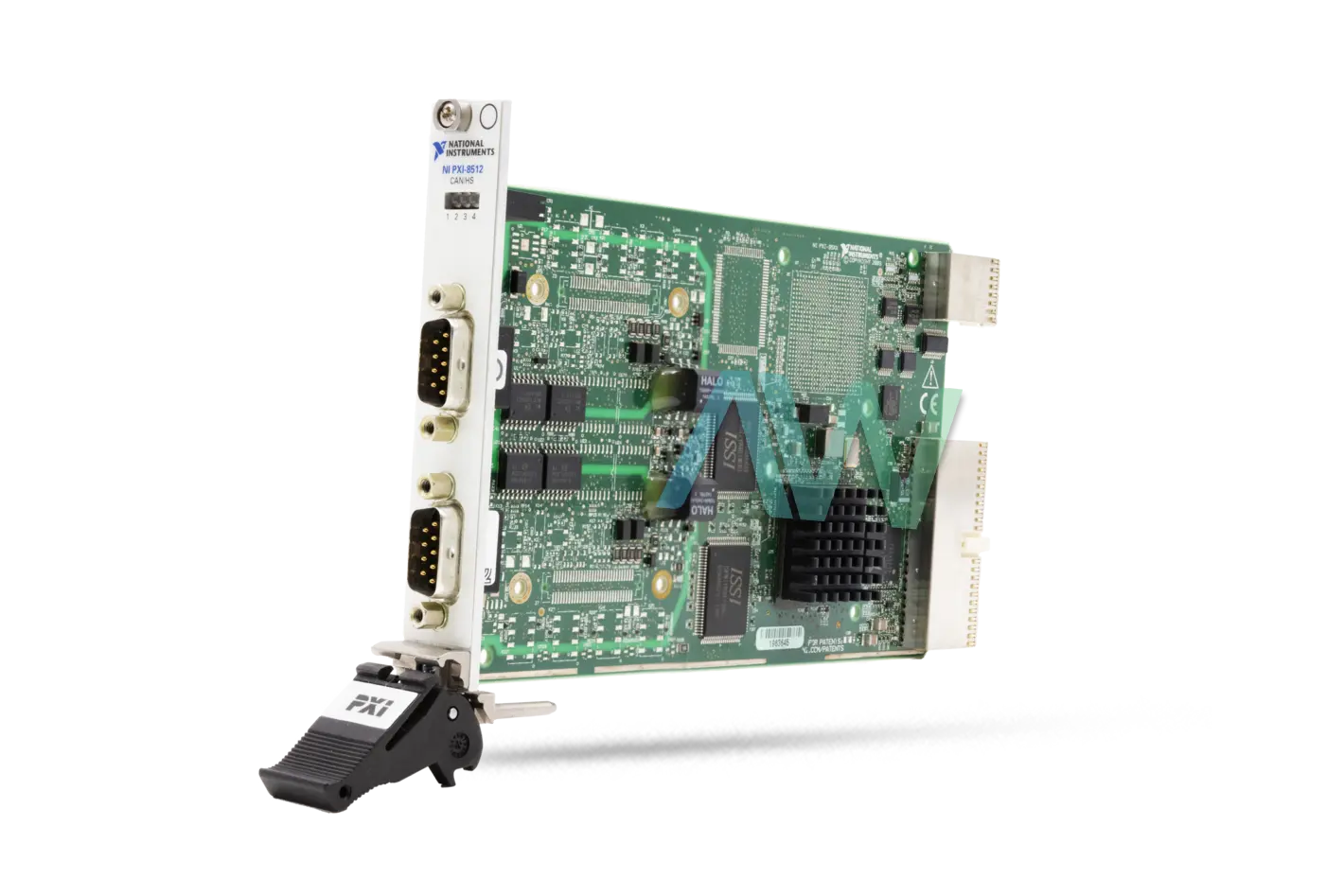

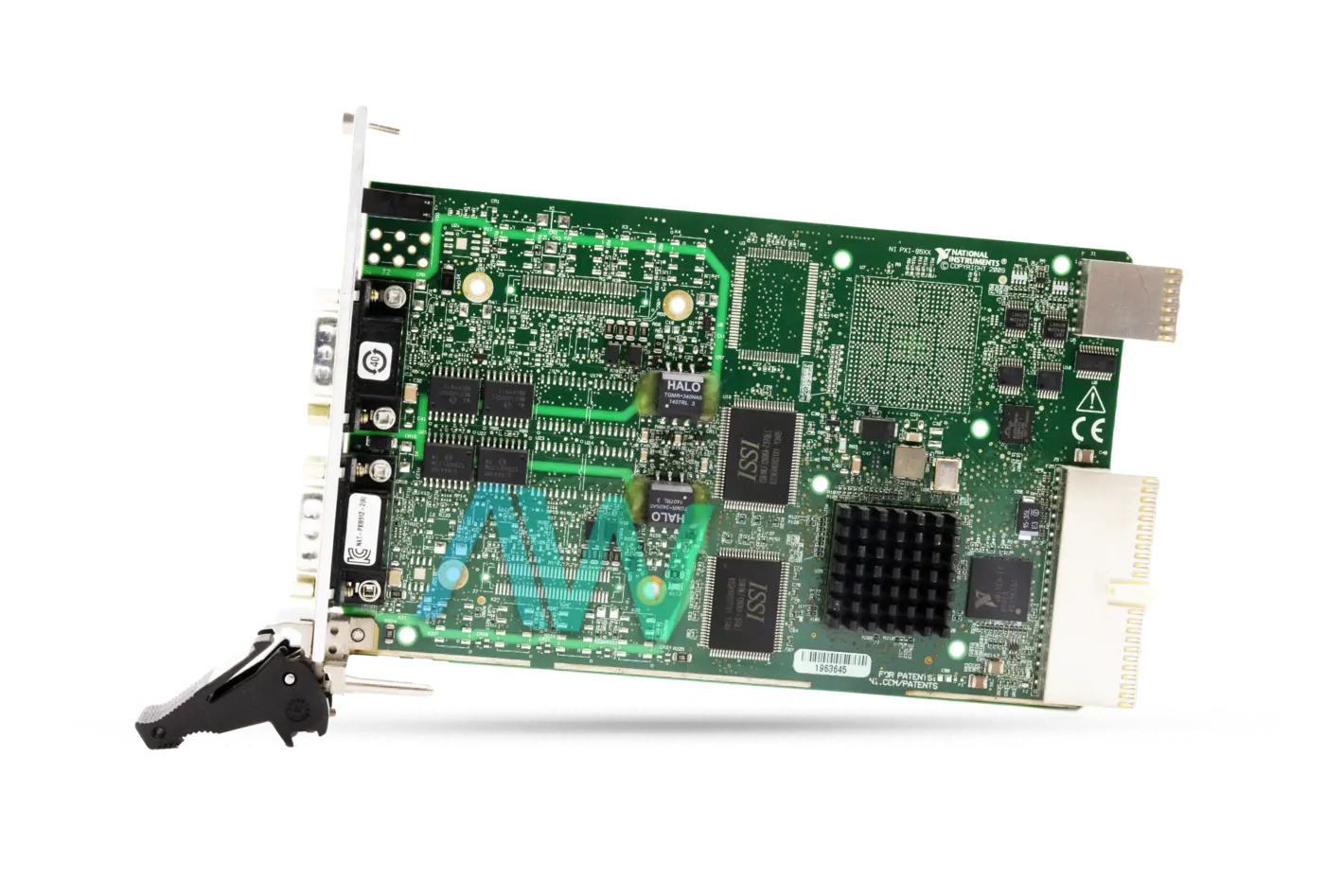

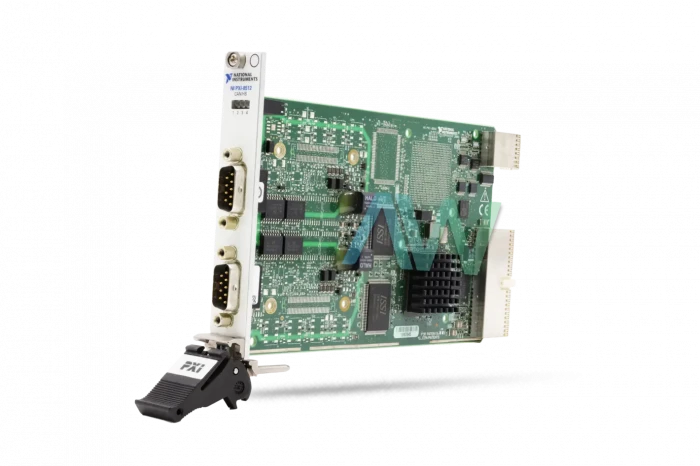

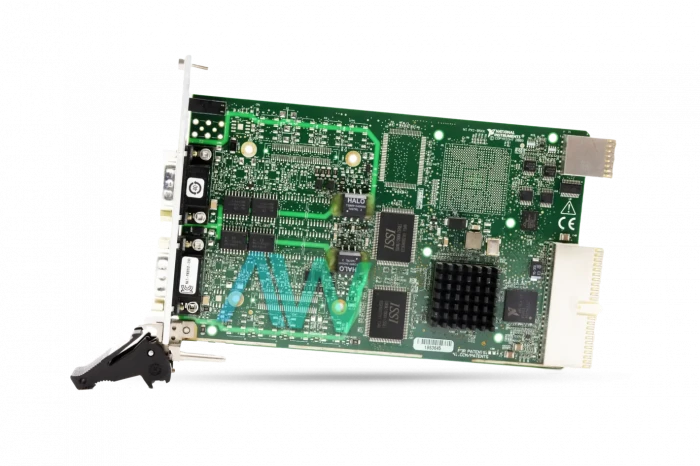

National Instruments PXI-8512 PXI CAN Interface Module

The Flexible Data Rate, High Speed, NI PXI-8512 CAN Interface Module (Part Number: 780687-01, 780687-02) has 1 or 2 ports, depending on part number. Part number 780687-01 has 1 port, while part number 780687-02 has 2 ports. The NI PXI-8512 comes with interfaces that unite the execution related with the programming of low-level microcontrollers and the energy of Windows and advancement of LabVIEW Real-Time working framework. The DMA motor controlled by patent-pending NI-XNET gadgets lessens the latency of the framework, common point of pain for PC-based CAN, LIN and FlexRay interfaces from milliseconds to microseconds. The database engine and integrated NI-XNET utilities decrease time consuming frame-to-signal translation, while keeping up the most extreme execution on the PXI 8512. Support for industry-standard CAN, LIN, and FlexRay signal database formats, including FIBEX, CANdb (. DBC), LDF, and NI-CAN NCD, simplifies the integration of NI-XNET into incorporated network design workflows.

With similarity for up to 192 hardware-accelerated frames, the NI PXI 8512 CAN Interface offload repetitive processing from the host framework leaves more CPU time for executing and performing different tasks. NI RTSI synchronization support empowers NI-XNET interfaces to incorporate and synchronize with other NI items, including data acquisition, PXI modular instrumentation, vision, and motion.

Real-time processing of CAN, LIN, and FlexRay signal and frame data is crucial for exact hardware-in-the-loop simulation and fast control prototyping. LabVIEW applications for NI-XNET gadgets work on both Windows and LabVIEW real-time targets with no code changes, which improves assembling and keeping up code maintaining over platforms. This same code can be reused in a wide range of frame factors, including PXI, PCI, NI CompactDAQ, and NI CompactRIO.

ModelPXI-8512
Part Number780687-01, 780687-02
ManufacturerNational Instruments
TypePXI CAN Interface Module
Ports1 or 2
CAN Physical LayerFlexible Data-Rate, High-Speed
I/O Connector9-pin male D-SUB for each port
Dimensions6.3 x 3.9 in.
Maximum Baud Rate1 Mbps
WarrantyThree Year Warranty
PXI-8512 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PXI-8512:

194923C-01L, 194923C-02L, 194923D-01L, 194923D-02L, 194923E-02L, 194923F-01L, 194923G-01L, 194923G-02L, 194923H-01L, 194923H-02L, 194923J-01L, 194923J-02L, 780687-01, 780687-02

National Instruments PXI-8512 Frequently Asked Questions



Question: What type of transceiver does the PXI-8512 have?



Answer: The PXI-8512 has either a NXP TJA1041 or TJA1043 transceiver.



Question: What is the power level for the CAN_H and CAN_L bus lines on the NI PXI 8512 CAN Interface?



Answer: The CAN_H and CAN_L bus lines on the NI PXI 8512 CAN Interface have a power level of -27 VDC to +40 VDC.



Question: What is the minimum baud rate of the NI PXI-8512?



Answer: The NI PXI-8512 has a minimum baud rate of 40 kbps.
