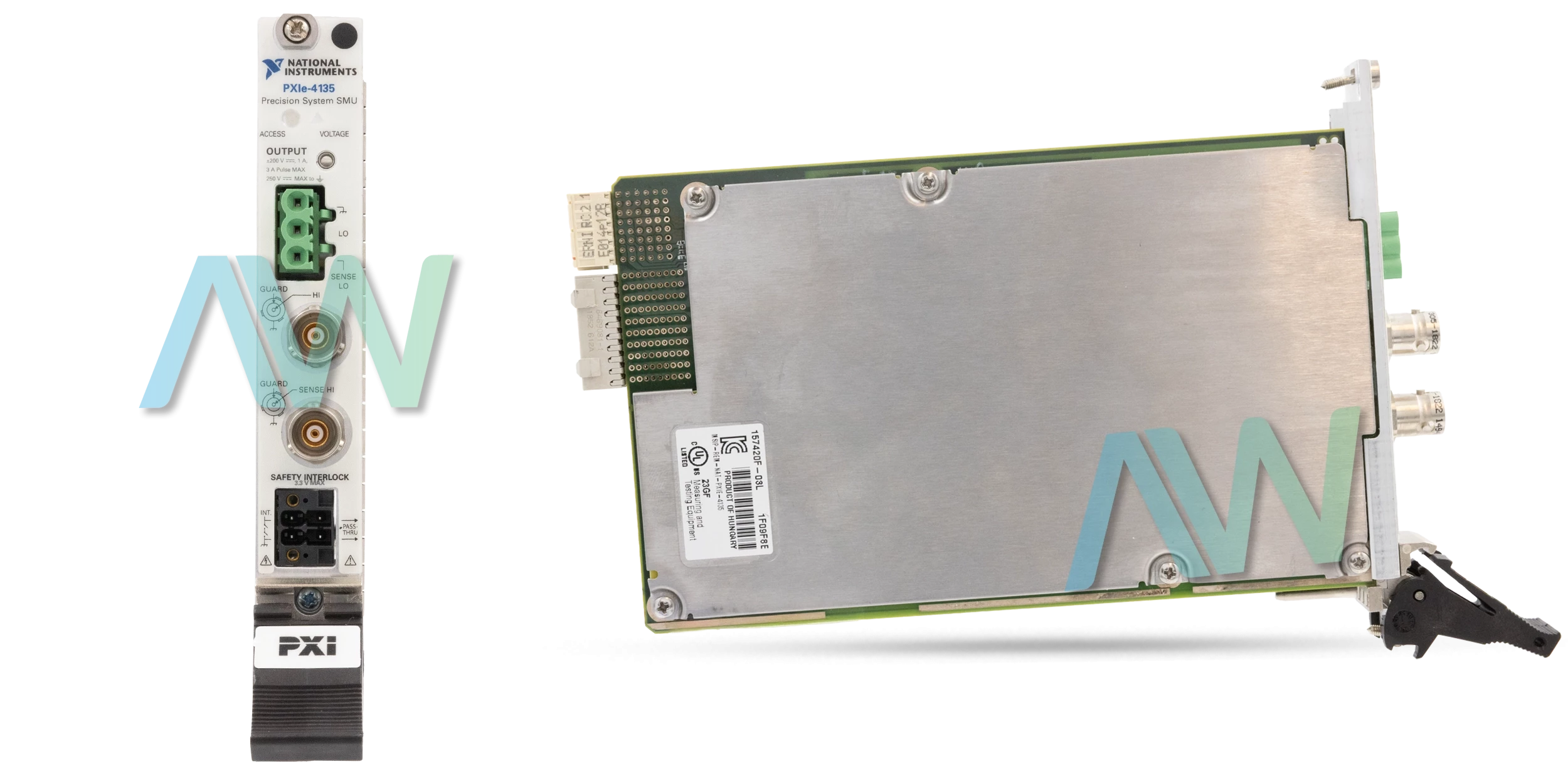

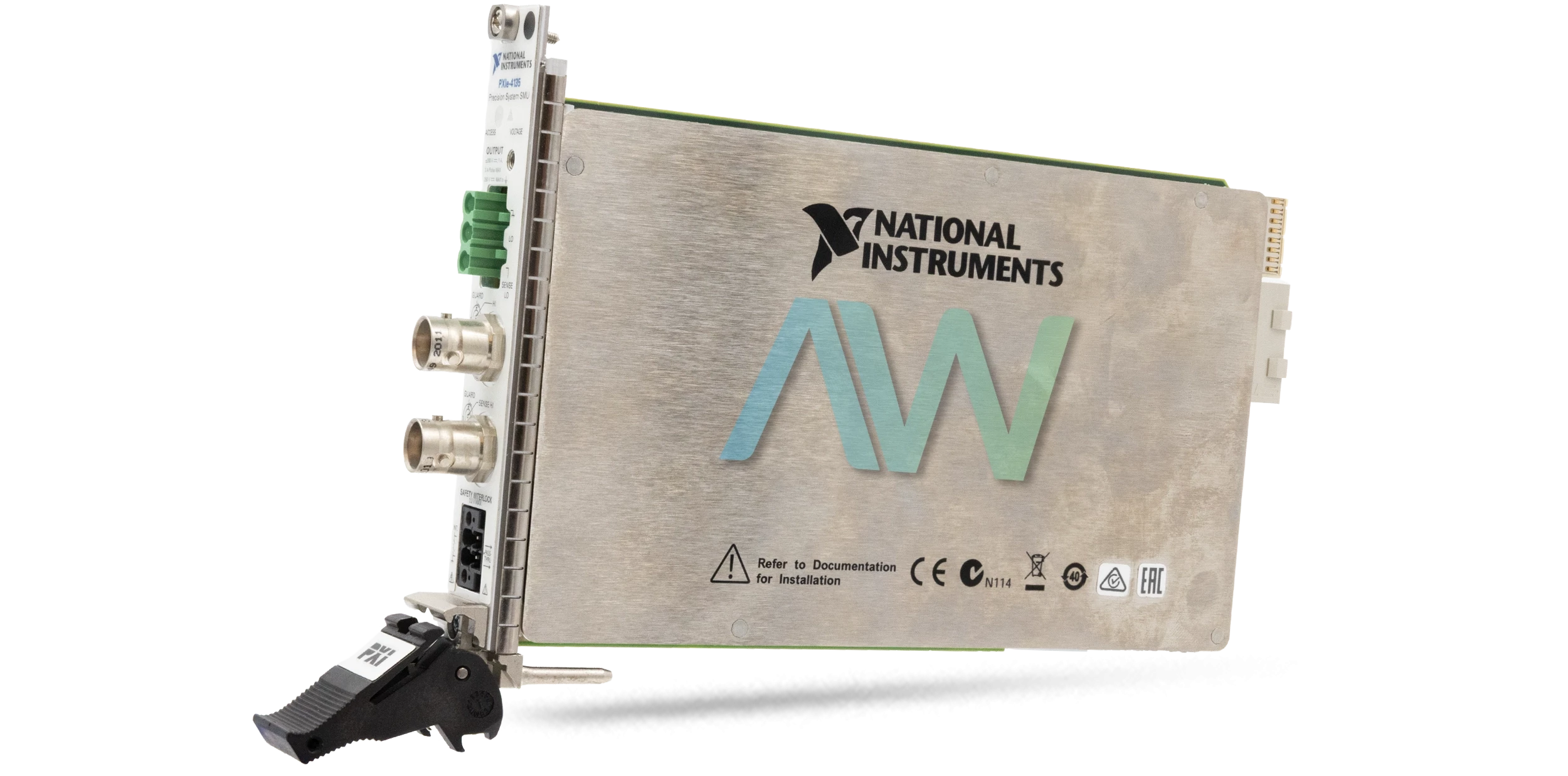

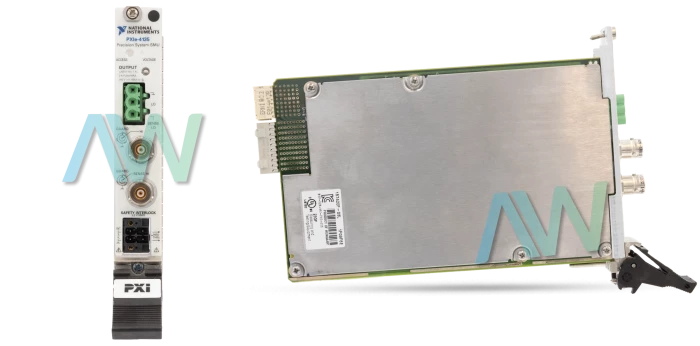

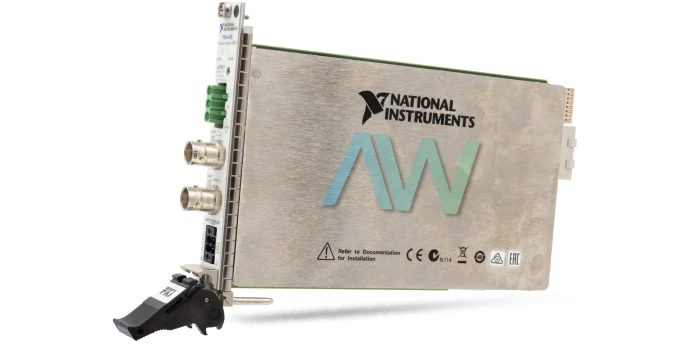

National Instruments PXIe-4135 Low Current Source Measure Unit
The PXIe-4135 (Part Number: 783762-01, 783762-02, 157420F-03L) Low Current Source Measure Unit has 4 quadrants and sources up to 20 W for DC control. This unit also shows low current estimations, such as a 10 nA go and triaxial network. With the extraordinary analog-to-digital converter innovation of this module, the user can perform high-accuracy estimations with a current resolution of 10 fA or rapid acquisitions at speeds up to 1.8 MS/s. The NI PXIe-4135 is a hardware-timed instrument with a fast sequencing engine to synchronize acquisitions over different SMUs. The module supports the direct transmission of DMA between the host PC and SMU, so it can transmit extensive waveforms and estimation information with the refresh rate and full testing frequency of the instrument. Part number 783762-02 is the 40W version of the PXIe-4135.
Engineers can utilize the modular NI PXIe-4135 SMU to build parallel, high-channel-count frameworks from up to 68 SMU directs in a solitary PXIe chassis that can scale to several channels. Users can expand test throughput by exploiting a rapid communication bus, deterministic hardware sequencing, and a digital control loop innovation to custom-tune the SMU response for any gadget under test. They can also control the SMU response through programming, which removes long wait times for SMU settling and offers the flexibility to help limit overshoot and oscillations.
The interactive soft front boards can be utilized for making essential estimations and debugging automated applications. The driver features help files, documentation, and ready-to-run example projects to assist in test code development and incorporates a programming interface that works with an assortment of improvement conditions.
The required power for the PXIe-4135 is 2.5 A from the 3.3 V rail, and 2.7 A from the 12 V rail. The physical dimensions of the SMU measure 0.8 in. × 5.1 in. × 8.5 in. (2.0 cm × 13.0 cm × 21.6 cm) and it weighs in at 14.8 oz (419 g).
| Model | PXIe-4135 |
|---|---|
| Part Number | 783762-01, 783762-02, 157420F-03L |
| Manufacturer | National Instruments |
| Type | PXI Source Measure Unit |
| SMU Channels | 1 |
| Voltage Range | -200 V to 200 V |
| Current Range | -3 A to 3 A |
| Bus Connector | PXI Express |
| Current Sensitivity | 10 fA |
| # SMU Channels | 1 |
| SourceAdapt? | Yes |
| Dimensions | 0.8 x 5.1 x 8.5 in. |
| Weight | 14.8 oz. |
| PXIe-4135 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-4135:
National Instruments PXIe-4135 Frequently Asked Questions
Question: What is the current sensitivity of the PXIe-4135?
Answer: The current sensitivity of the PXIe-4135 is 10 fA.
Question: Does the NI PXIe-4135 come with auxiliary power?
Answer: No, the NI PXIe-4135 does not have auxiliary power.
Question: What is the PXI Express power requirement for the PXIe-4135?
Answer: The PXI Express power requirement for the PXIe-4135 is 2.5 A from the 3.3 V rail and 2.7 A from the 12 V rail.
Question: What is the suggested calibration interval for the NI PXIe-4135?
Answer: The NI PXIe-4135 has a suggested calibration interval of 1 year.
| Accessory Type | Model Name | Part Number |
|---|---|---|
| Screw Terminal Connector Kit | 784484-01 | |
| Cable | TriaxM-TriaxM | 785659-01 (1 m) |
| 785659-03 (3 m) | ||
| Safety Interlock Cable | 142998-08 (8 in) | |
| 142998-48 (48 in) | ||
| - | - | - |
PXIe-4135 PDF Manuals
MAINTAIN-FORCED-AIR-COOLING-NOTE-TO-USERS.PDF
PXI-SOURCE-MEASURE-UNITS-PRODUCT-FLYER.PDF
PXIE-4135-CALIBRATION-PROCEDURE.PDF
PXIE-4135-GETTING-STARTED-GUIDE.PDF
PXIE-4135-SAFETY-ENVIRONMENTAL-AND-REGULATORY-INFORMATION.PDF
