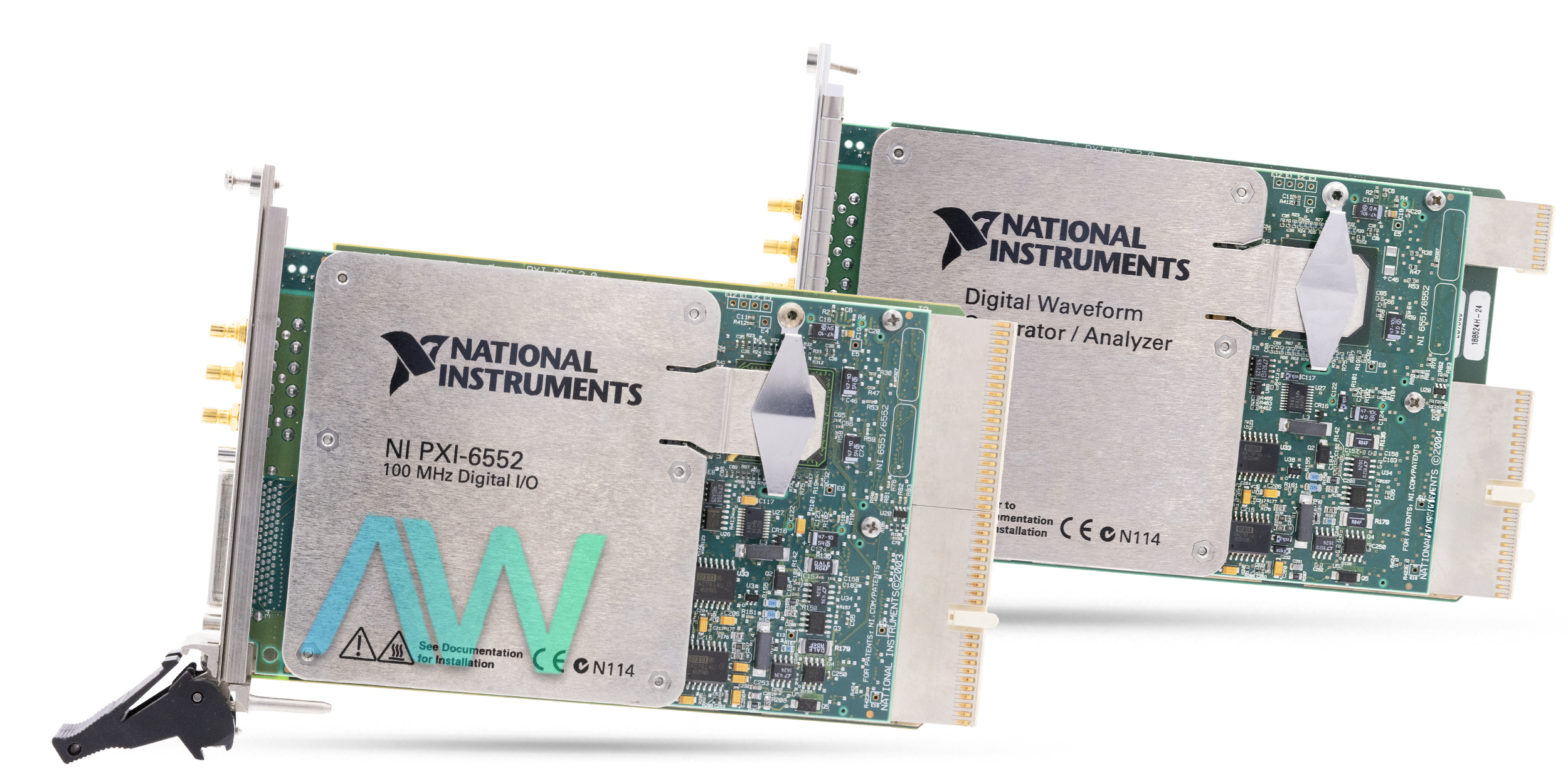

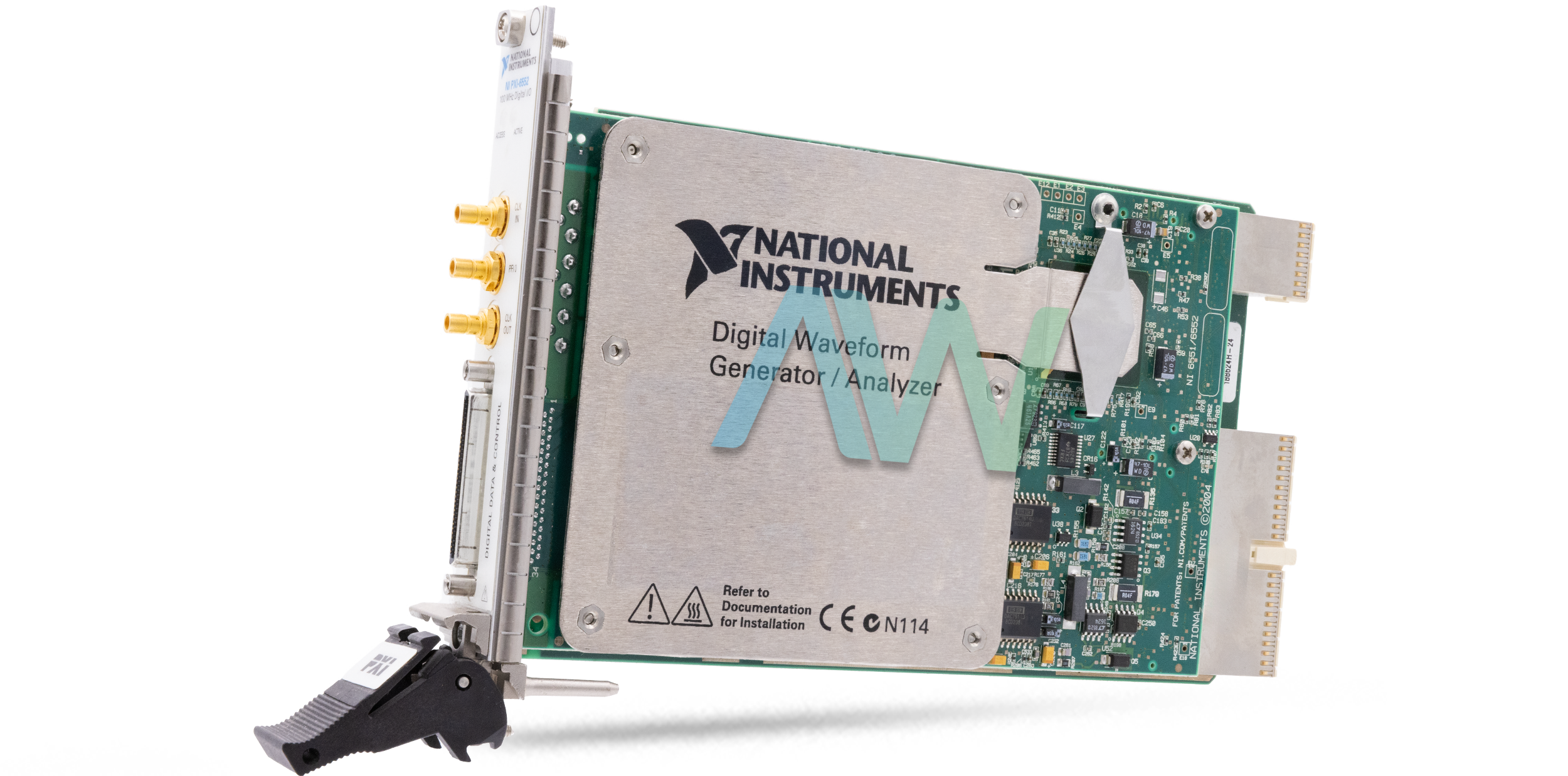

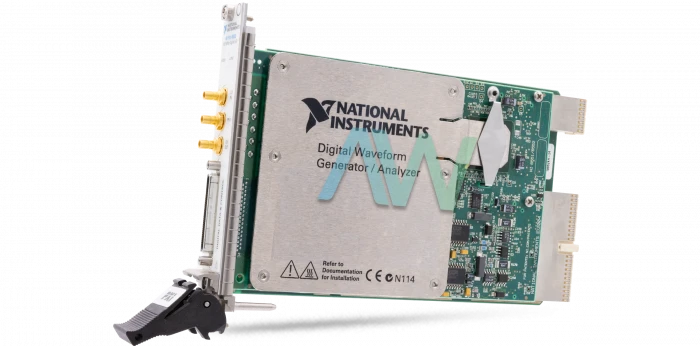

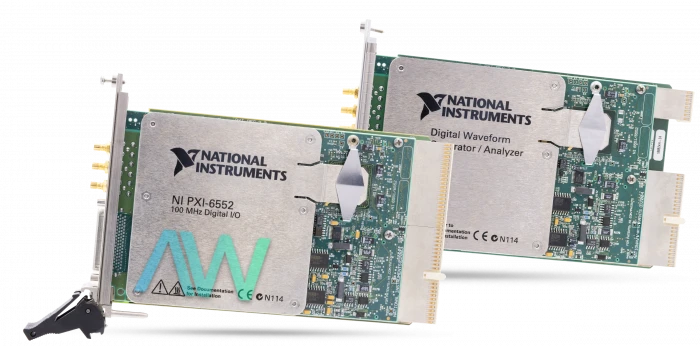

National Instruments PXI-6552 Digital Waveform Instrument
The National Instruments PXI-6552 (Part numbers: 778539-01, 778539-02, and 778539-03) The digital waveform instrument uses programmable and adaptable voltage levels with control per cycle, per bidirectional channel. The NI PXI 6552 contains a higher-limit inner memory with trigger and pattern sequences. This PXI Digital Waveform Instrument can be used to portray, approve, and test digital hardware and bidirectional communication. This model also offers dynamic generation. When performing dynamic aging, a NI digital waveform generator/analyzer produces data through an integrated impedance framework that consists of 50 Ω output impedance, a 50 Ω cable, and a 50 Ω accessory. Depending on the loading of the gadget, the user may require extra parallel termination resistance at the destination for optimal signal quality.
The logic analyzer of the NI PXI-6552 gives 100 MHz clock rates for analyzing the timing and state information of an extensive variety of computerized hardware. The different triggering alternatives combined with the profound memory of the digital instrument imply that the user can be sure to catch enough information to thoroughly analyze and debug the gadget. With multi-record triggering, the user can catch data around repeating events without building up a complex successive triggering or re-arming the logic analyzer. The NI PXI-6552 offers programmable voltage levels in 10 mV steps, making the module perfect for investigating an extensive variety of logic families. The device is equipped with 3 SMB jacks and 1 68-pin VHDCI connector.
On a per-channel basis, the user can automatically design stations to drive information to the DUT through a similar flying-lead link. The user can set channels for pattern generation while they utilize another arrangement of channels to secure information.
The PXI-6552 is run using the NI-HSDIO driver software and is compatible with application development environments (ADEs) such as LabVIEW, LabWindows/CVI, or Measurement Studio. The device can be configured using the Measurement & Automation Explorer (MAX) tool.
The NI device weighs 13.2 oz and measures 7.32 x 5.16 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C and a storage temperature range of -20 °C to 70 °C.
The PXI-6552 has been declared obsolete and is no longer available from National Instruments, but the Digital Waveform Instrument will continue to be available with Apex Waves in perpetuity!
| Model | PXI-6552 |
|---|---|
| Manufacturer | National Instruments |
| Brand | Emerson |
| Part Numbers | 778539-01, 778539-02, 778539-03 |
| Type | PXI Digital Waveform Instrument |
| Maximum Clock Rate | 100 MHz |
| Channels | 20 |
| Onboard Memory | 1, 8, or 64 Mb/channel |
| Generation Signal Type | Single-Ended |
| PFI Channels | 4 |
| Voltage Range | -2.0 V to 5.5 V |
| Clock Terminal | 3 (Input), 2 (Output) |
| Dimensions | 7.32 x 5.16 in. |
| Weight | 13.2 oz. |
| PXI-6552 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote for Pricing |
Associated part numbers for PXI-6552:
National Instruments PXI-6552 Frequently Asked Questions
Question: What type of front panel connector is on the NI PXI-6552?
Answer: The Waveform Instrument has SMB jack connectors and a 68-pin VHDCI connector on the front panel.
Question: What I/O connectors are found on the PXI-6552?
Answer: The two different I/O connector types are SMB jack and 68-pin VHDCI.
Question: Which NI driver is meant for use with the NI PXI-6552?
Answer: The NI-HSDIO driver is best suited for use with the device.
Question: What is the maximum clock rate of the PXI-6552?
Answer: The device features a maximum clock rate of 100 MHz.
| Accessory Type | Model Name | Part Number |
|---|---|---|
| Cable | SHC68-C68-D4 (Shielded Recommended) |
781013-01 (0.55 m) |
| 196275-01 (1 m) | ||
| 781293-01 (2 m) | ||
| 132625-03 (3 m) | ||
| C68-C68-D4 Cable (Unshielded) |
195949-01 | |
| SHC68-H1X38 (Shielded, Flying Lead) |
192681-1R5 | |
| Cable Adapter | 653x Cable Adapter | 195846-01 |
| Screw Terminal Block (Shielded) |
SCB-68 HSDIO | 782914-01 |
| SCB-68A | 782536-01 | |
| Screw Terminal Block (Unshielded, DIN Rail Mount) |
CB-2162 | 778592-01 |
| CB-68LP | 777145-01 | |
| CB-68LPR | 777145-02 | |
| Screw Terminal Block (Unshielded) |
TBX-68 | 777141-01 |
| Breakout Box | SMB-2163 | 778747-01 |
*The device is compatible with SCSI accessories when using the 653x Cable Adapter. Without this adapter, VHDCI accessories must be used.
*The SCB-68 / SCB-68A must use direct feed through mode for configuration.
