PCI-7830R, 4 Analog Input Channel, Digital Reconfigurable I/O Device
4.6/5 | 17 ratings
Fast Quote
Quoted Price

Need an Official Quote?

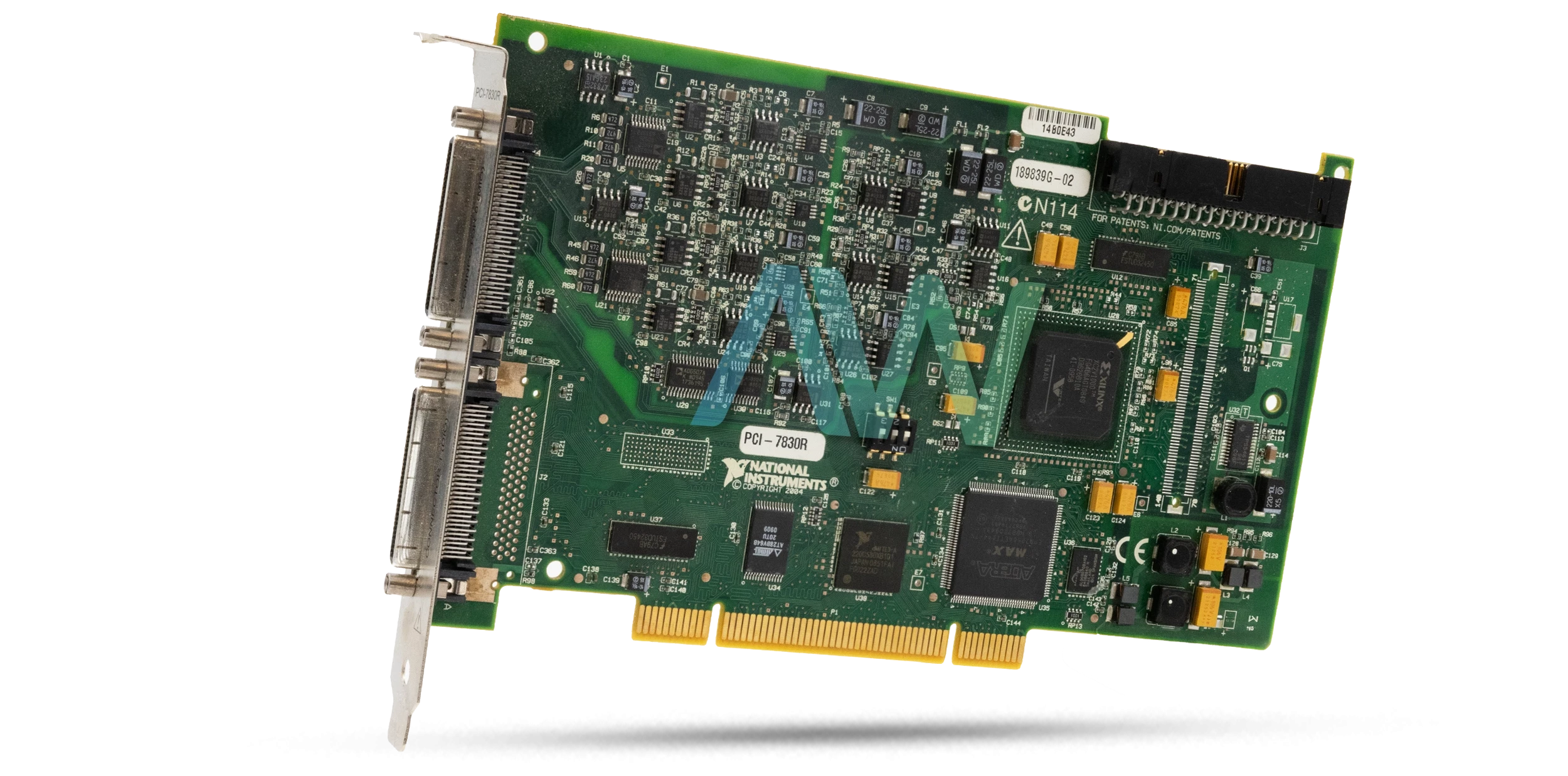

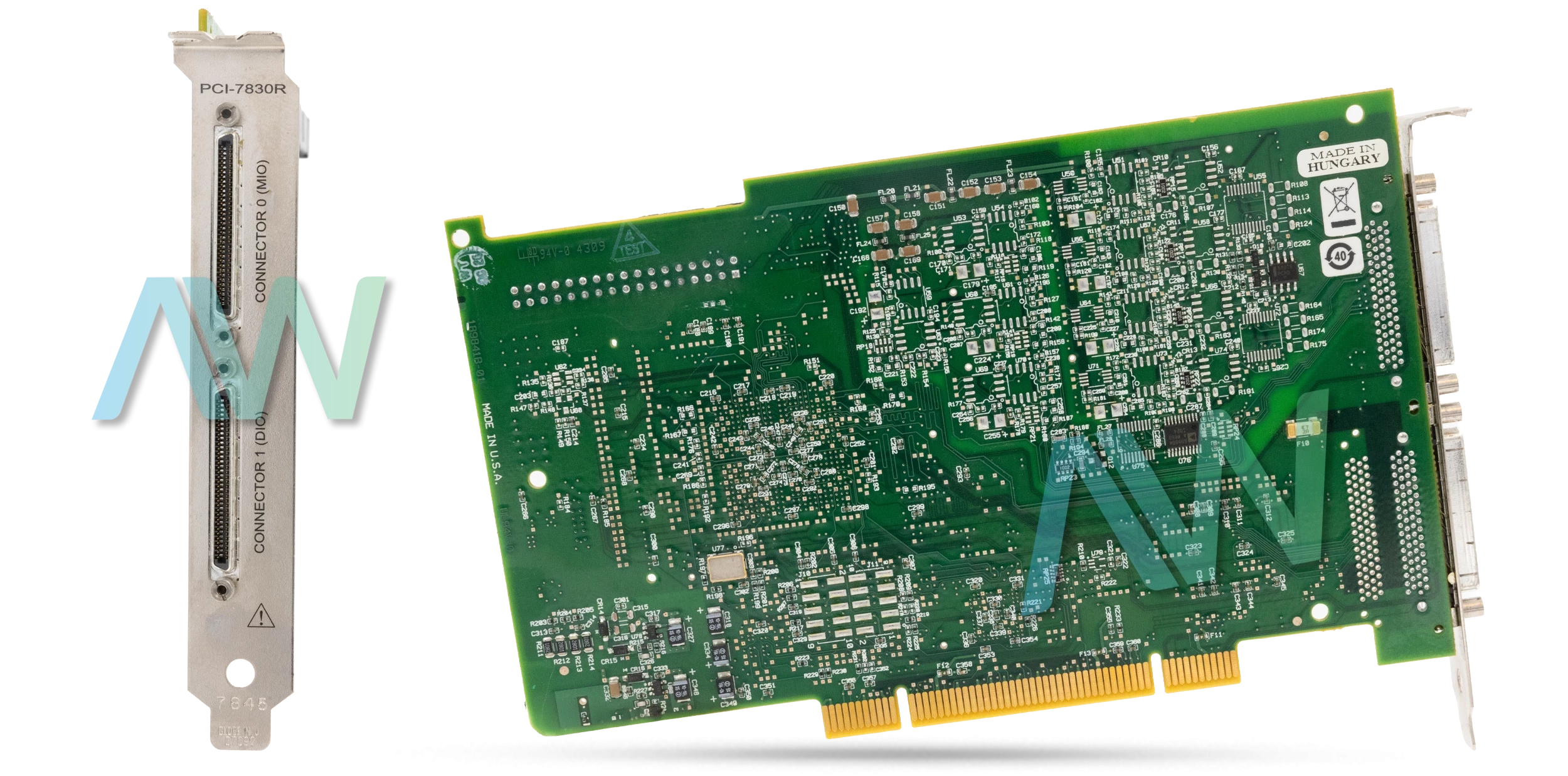

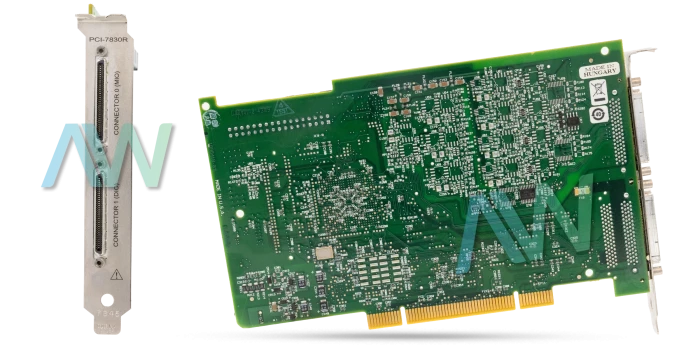

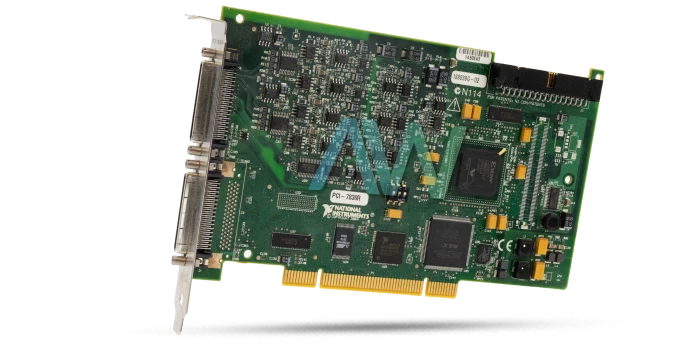

National Instruments PCI-7830R Digital Reconfigurable I/O Device

The National Instruments PCI 7830R is a Multifunction Reconfigurable I/O Device (RIO) from the R Series. This model comes equipped with a Virtex-II 1M Gate type FPGA. The incorporated FPGA chip makes it capable of customizable I/O operation and onboard processing.  This model offers four analog inputs and four analog outputs. The inputs have up to 200 kHz independent sampling rates at 16-bit resolution and over ±10 V range. The outputs have up to 1 MHz independent update rates up to 1 MHz at 16-bit resolution and over ±10 V.  Moreover, it comes featured with 56 digital lines and 3 DMA channels. These conditioning lines can be configured as either counters, inputs, outputs, or custom logic at up to 40 MHz rates. Also, the device has a timebase of 40, 80 120, 160, or 200 MHz.

With this model, the user will be able to configure entire digital and analog functionality by using National Instruments LabVIEW FPGA module and graphical block diagrams. The block diagrams can be used in hardware, subsequently providing the user with immediate and direct control over all digital I/O signals. The NI PCI 7830R comes featured with a dedicated ADC (analog-to-digital convertor) per channel. These ADCs brings the flexibility of independent triggering and timing operations. Moreover, multi-rate sampling and other specialized functionalities such as individual channel triggering is also a benefit of employing independent ADCs. Thus, the NI PCI 7830R can offer the user capabilities which are not usually offered by typical DAQ hardware. A few examples include analog control, rapid prototyping, sensor simulation, custom and discrete controlling, digital protocol emulation, etc. The I/O device is equipped with 2 68-pin female high-density VHDCI I/O connectors. It has an embedded block RAM of 720 kbits.

The NI device weighs 0.25 lb, and measures 6.7 x 4.3 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C, a storage temperature range of –20 °C to 70 °C, and an operating and non-operating random vibration of 0.3 grms and 2.4 grms respectively–all at a frequency range of 5 to 500 Hz.

ModelPCI-7830R
ManufacturerNational Instruments
SeriesR Series
TypeDigital Reconfigurable I/O Device
FPGA TypeVirtex-II V1000
Analog Inputs4 (16 Bits, 200 kS/s)
Analog Outputs4 (16 Bits, 1 MS/s)
Number of flip-flops10,240
Number of 18 × 18 multipliers40
Embedded block RAM720 kbits
Digital I/O56
Number of DMA Channels3
Timebase40, 80, 120, 160, or 200 MHz
I/O Connector2 × 68-pin Female High-Density VHDCI
Power Requirements+3.3 VDC,+5 VDC -- 462 mA, 330 mA
Dimensions6.7 in. × 4.3 in.
Weight0.25 lb.
Software DriverNI-RIO
WarrantyThree Year Warranty
PCI-7830R ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PCI-7830R Frequently Asked Questions



Question: What is the sampling rate for the NI PCI-7830R?



Answer: The NI PCI-7830R has independent sampling rates up to 200 kHz.



Question: How do I find an example of an output of a sinewave voltage when using the NI PCI 7830R?



Answer: You can find the example program for the output of a sinewave voltage using the NI PCI 7830R by locating the program “Sine Generator – R Series.Ivproj.” Search for Sine Generator in the NI Example Finder.



Question: How do I simulate a PCI 7830R (R Series DAQ) in MAX?



Answer: You cannot simulate a PCI 7830R in MAX. However, you can simulate your FPGA board using the project explorer in LabVIEW 8.X.

  PCI-7830R PDF Manuals

Driver Downloads for PCI-7830R






OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit

 Download Version
