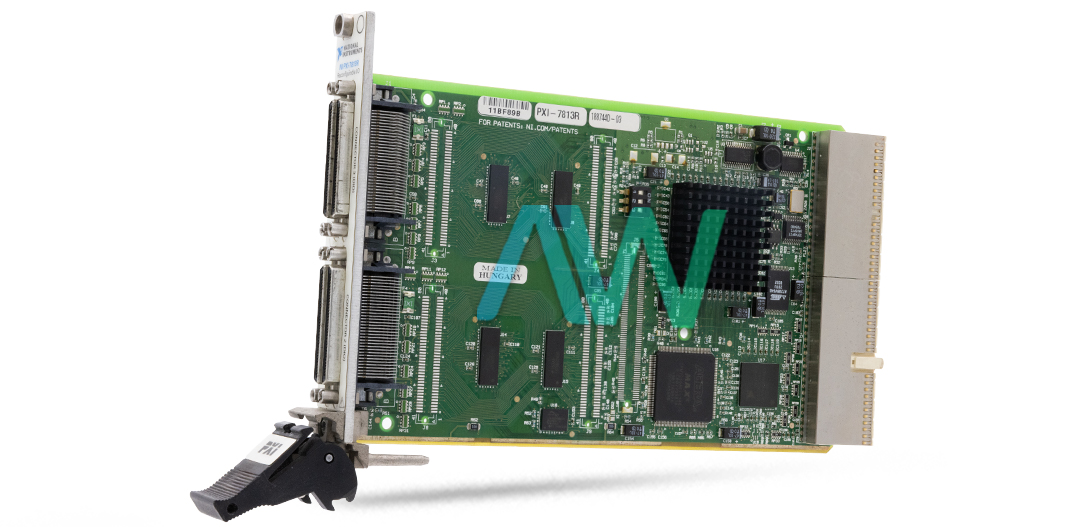

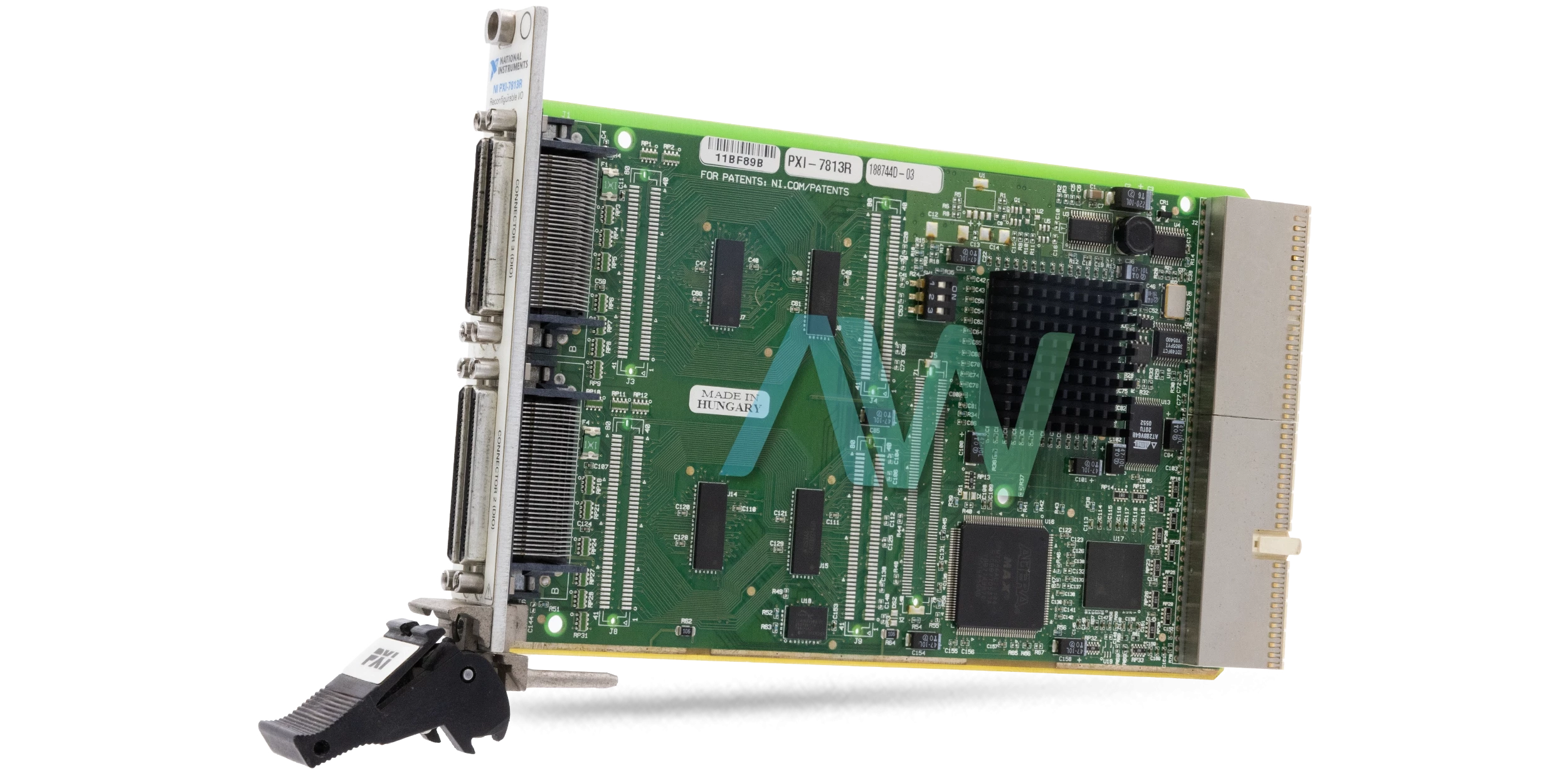

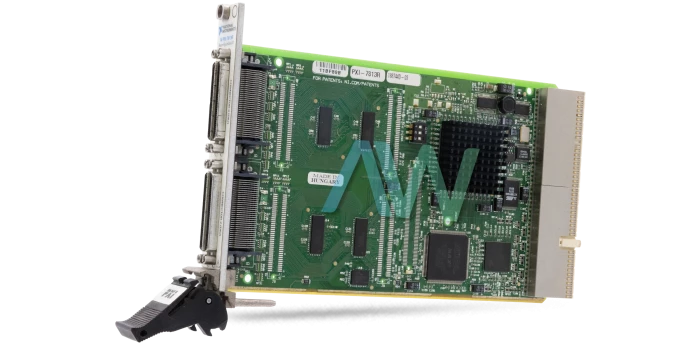

PXI-7813 National Instruments PXI Digital Reconfigurable I/O Module | Apex Waves | Image PXI-7813 National Instruments PXI Digital Reconfigurable I/O Module | Apex Waves | ImagePXI-7813PXI-7813 | Legacy, Refurbished and New Surplus

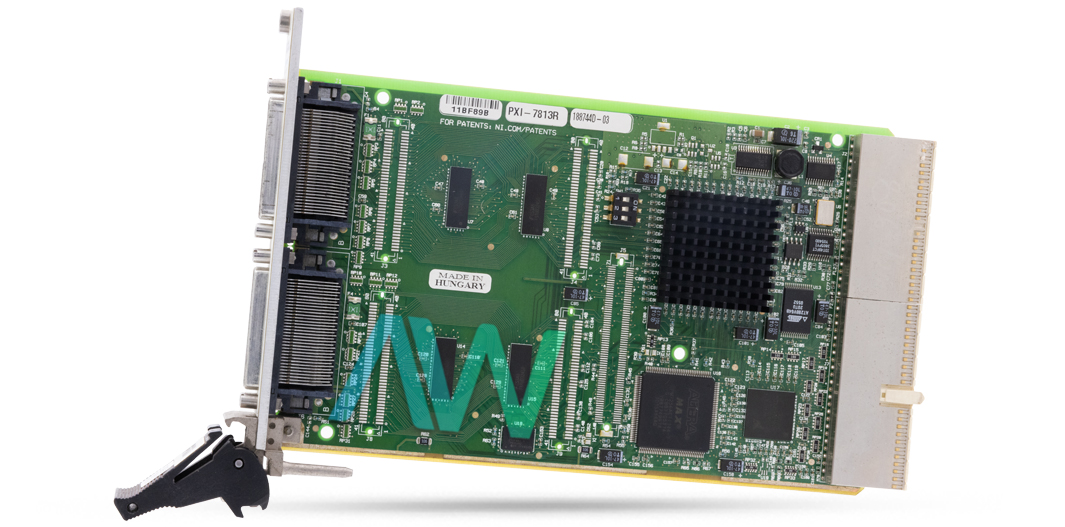

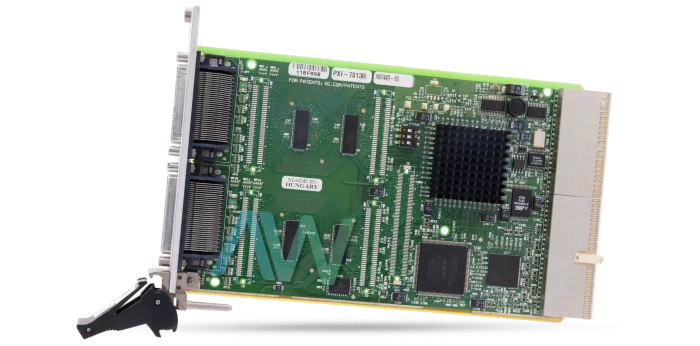

PXI-7813 National Instruments PXI Digital Reconfigurable I/O Module | Apex Waves | Image

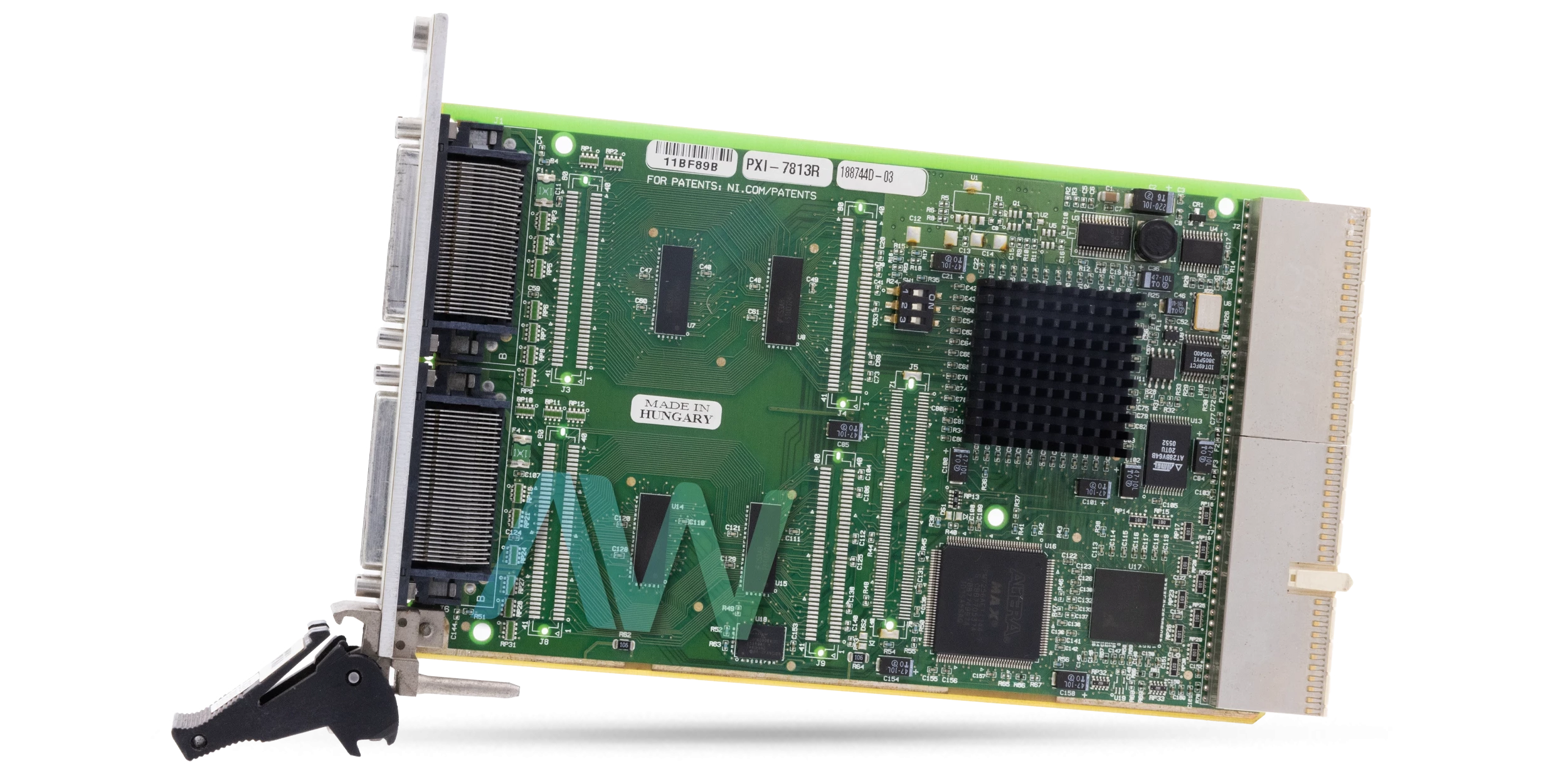

PXI-7813 National Instruments PXI Digital Reconfigurable I/O Module | Apex Waves | Image
PXI-7813 New
PXI-7813 | Legacy, Refurbished and New Surplus

PXI-7813

4.6/5 | 10 ratings

Modular Systems > National Instruments > R Series

Part Number PXI-7813
Manufacturer/Brand National Instruments
Description: PXI-7813, 160 DIO, PXI Digital Reconfigurable I/O Module
In Stock | Ships 3-5 Days
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:


National Instruments PXI-7813 PXI Digital Reconfigurable I/O Module

The PXI-7813 (Part number: 779362-01) is a PXI Digital Reconfigurable I/O Module by National Instruments. This device can configure digital channels, along with counters/timers and communication protocols for PXI-based systems. The NI PXI-7813 incorporates a programmable FPGA for processing and configuration functions. This device offers a flexible solution for configuration requirements. The PXI-7813 can independently program different digital channels. This model can also control the timing and synchronization of all channels.

The PXI-7813 Digital Reconfigurable I/O Module features 160 digital I/O channels. These channels are TTL compatible and bidirectional. The supported I/O logic levels for the digital channels of the NI PXI-7813 are 3.3 volts and 5 volts. The output current is 04 mA. This device is protected against an input overvoltage range of -0.5 volts to 7 volts.

The PXI-7813 is equipped with a reconfigurable FPGA. The FPGA is a Virtex-II V3000 with 28,672 Flip-Flops. This device only supports the onboard clock, which has a maximum frequency of 40 MHz. The NI PXI-7813 supports the PXI bus connector. Three DMA channels are available in the PXI-7813 for data transfer. The NI PXI-7813 is additionally equipped with four 68-pin connectors for different connections. The connector type is VHDCI female.

The PXI-7813 Digital Reconfigurable I/O Module is suitable for a broad range of applications, which includes high-speed signal generation and custom communication protocols. This device is also used in sensor simulation, precise timing and control applications, as well as HIL test and bit error rate testing.

PXI-7813 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelPXI-7813
ManufacturerNational Instruments
Part Number779362-01
SeriesR Series
TypePXI Digital Reconfigurable I/O Module
FPGA TypeVirtex-II V3000
Number of Flip-flops28,672
Number of 18 × 18 Multipliers96
Embedded Block RAM1,728 kbits
Digital I/O160
Timebase40, 80, 120, 160, or 200 MHz
I/O Connectors4 68-pin Female High-Density VHDCI type
Power Requirements+3.3 VDC,+5 VDC  -- 850 mA, 9 mA
Dimensions6.3 in. by 3.9 in.
Weight0.34 lb.
Software DriverNI-RIO
WarrantyOne Year Warranty
PXI-7813 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-7813 Frequently Asked Questions



Question: Does the NI PXI-7813 support any logic analyzers?



Answer: You can program the FPGA in the NI PXI-7813 to be its own logic analyzer.



Question: How many digital lines does the PXI-7813 have?



Answer: The PXI-7813 has 160 digital lines configurable as inputs, outputs, counters, or custom logic at rates up to 40 MHz.



Question: What type of FPGA does the NI PXI-7813 have?



Answer: The NI PXI-7813 has a Virtex-II 3M gate FPGA programmable with the LabVIEW FPGA Module.
