PCI-6115
Modular Systems > National Instruments > S Series
Description: | PCI-6115, 4 AI, 2 AO, 8 DIO, Multifunction I/O Device |
Need an Official Quote?
Or speak to a sales representative for pricing & lead time:
National Instruments PCI-6115 Multifunction I/O Device

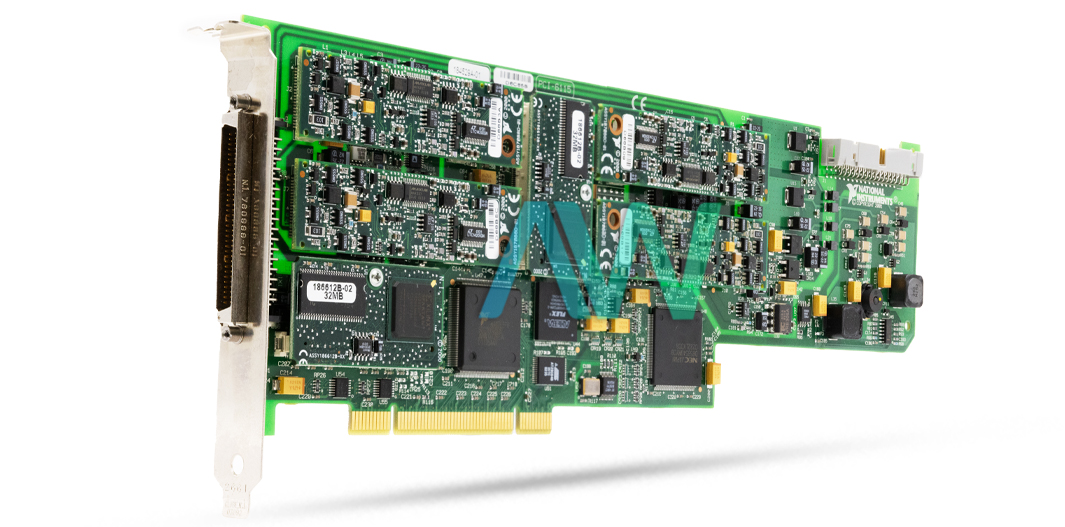

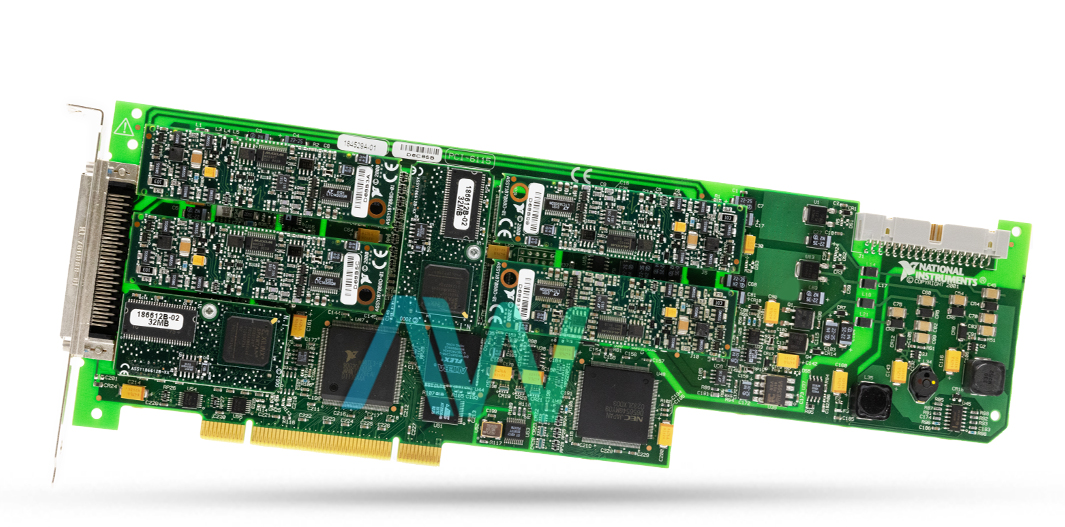

The PCI-6115 is a Multifunction I/O Device from the S Series by NI. This device has two analog input FIFO buffer sizes available with different part numbers. Part number 778534-01 has 16 MS FIFO buffer size and part number 778554-01 has 32 MS FIFO buffer size. This device offers four analog input channels. These analog input channels are differential. This model allows the user to input data for various measurement requirements. The instrument also has a simultaneous sampling capability, which is accompanied by a sampling rate of 10 MS per second for each channel. There are also two analog output channels with a maximum update rate of 4 MS per second. The PCI-6115 Multifunction I/O Device can be used in the following applications: IF digitization, radar, sonar, ultrasound, high-energy physics, 42 V automotive applications, and transient/ballistics measurements.
The NI PCI 6115 incorporates two counters. The counters both have 24 bit resolution. This feature makes the device suitable for various applications that involve stimulus or response calculations. These measurements require a high level of accuracy and synchronization capabilities. The value of absolute accuracy is 184 mV for the analog input channels. The device is powered through a BUS power interface. The PCI-6115 additionally incorporates eight digital channels. These channels are bidirectional. The dedicated A/D converters for each channel allow the user to reach quicker sampling rates for each channel, simultaneous sampling, and improved dynamic preciseness for transient or frequency measurements.
The NI DAQ PCI 6115 can be used with the NI-DAQmx driver, which simplifies the configuration and measurement procedure for the users. The instrument additionally has various event trigger applications available. This further enhances the operational capabilities of the PCI 6115 NI.
Model | PCI-6115 |
---|---|
Manufacturer | National Instruments |
Part Numbers | 778534-01 and 778554-01 |
Series | S Series |
Type | Multifunction I/O Device |
Analog Input Channels | 4 |
Analog Output Channels | 2 |
Dimensions | 12.3 in. x 4.2 in. |
Calibration Interval | 1 year |
Warranty | One Year Warranty |
PCI-6115 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
National Instruments PCI-6115 Frequently Asked Questions
Question: What is the difference between the two versions of the PCI 6115?
Answer: Part number 778534-01 for the PCI 6115 has 16 MS analog input FIFO buffer size, while part number 778554-01 has 32 MS analog input FIFO buffer size.
Question: What is the slew rate of the NI PCI 6115?
Answer: The NI PCI 6115 has a slew rate of 130 V/ms.
Question: What is the digital I/O compatibility for the NI DAQ PCI 6115?
Answer: The digital I/O compatibility for the NI DAQ PCI 6115 is TTL/CMOS.
Question: What is the NI PCI-6115 driver?
Answer: The NI PCI-6115 driver is NI-DAQmx.
PCI-6115 PDF Manuals
DAQ GETTING STARTED GUIDE FOR PCI PCI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
NI 6110 6111 6115 6120 CALIBRATION PROCEDURE 28FOR TRADITIONAL NI DAQ 5BLEGACY5D29.PDF
NI 6115 6120 LETTER OF VOLATILITY.PDF
NI 6115 6120 SPECIFICATIONS.PDF
NI 61XX PINOUT LABEL FOR THE SCB 68.PDF
NI 61XX PINOUT LABEL FOR THE SCB 68A.PDF
