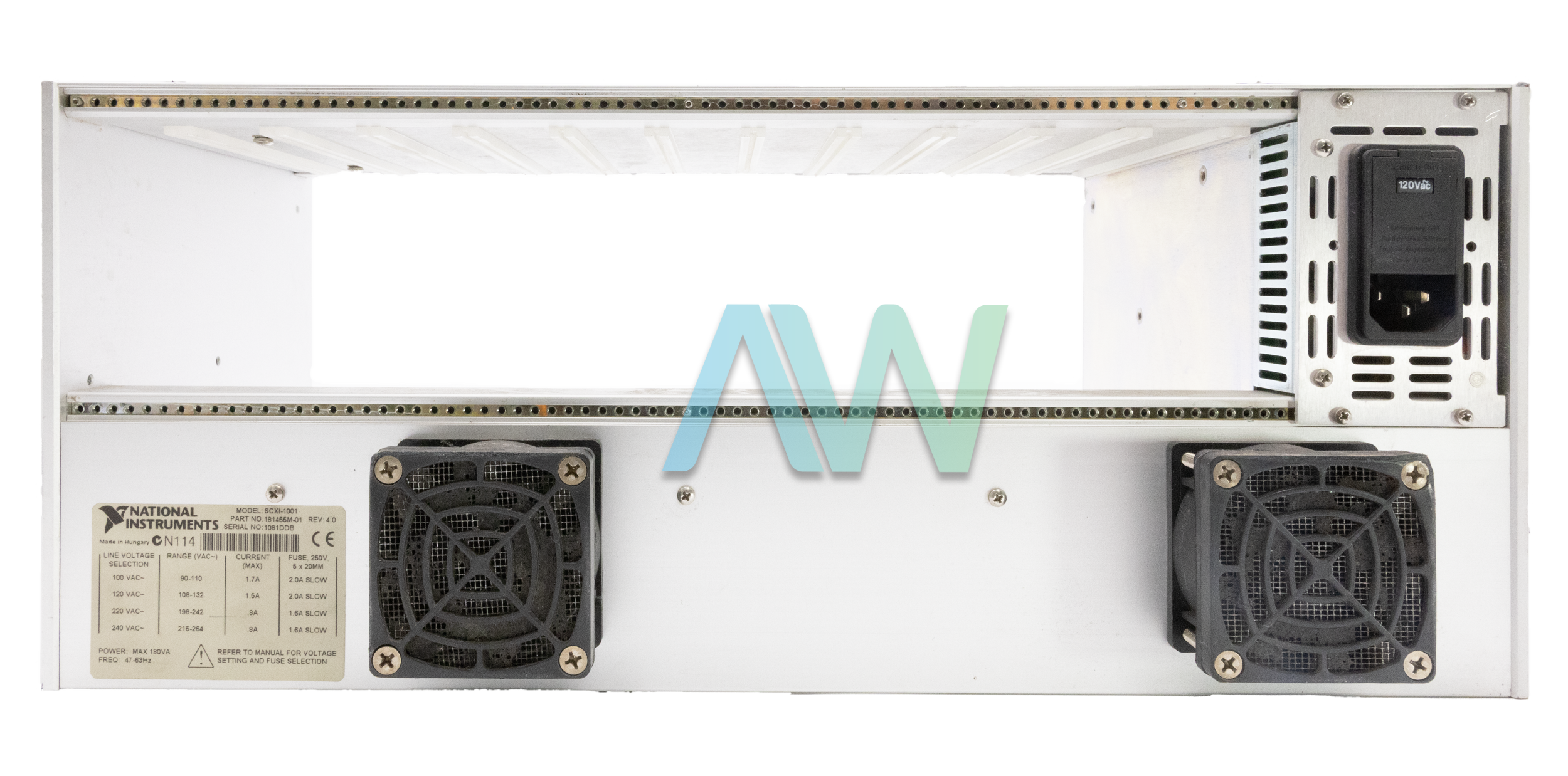

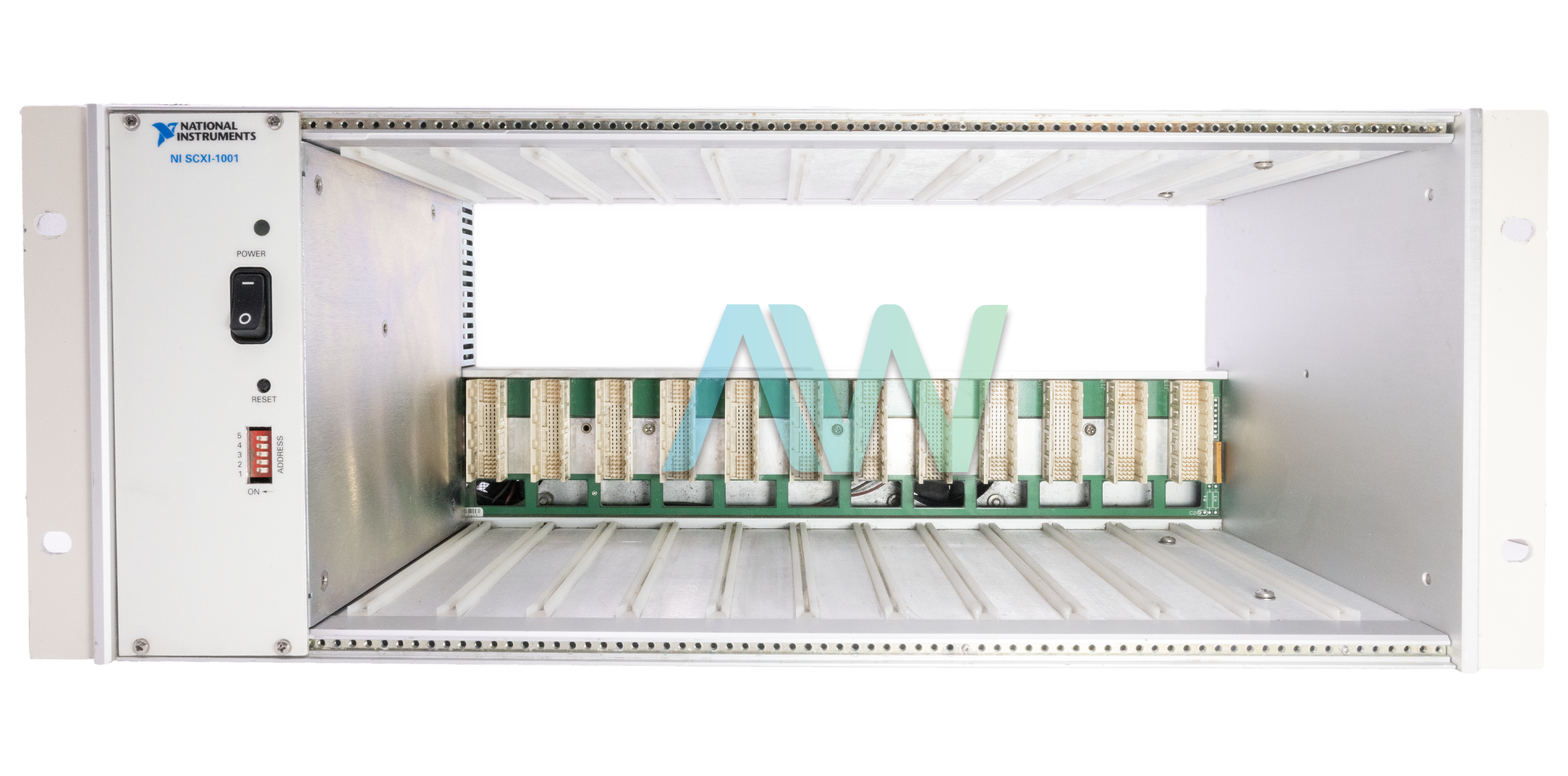

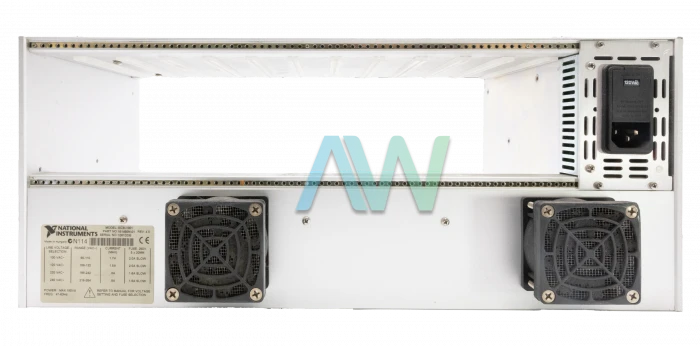

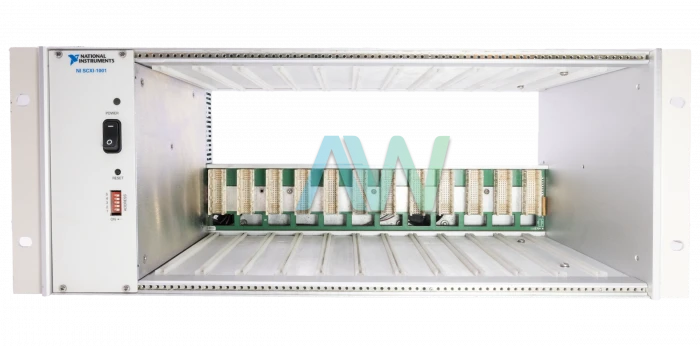

National Instruments SCXI-1001 Chassis
Featured with 3 Internal Analog Busses and 12 slots, the NI SCXI-1001 (Part Numbers: 776571-02, 776571-05, 776571-07, 776571-04, 776571-03, 776571-01, 776571-06, 776571-09, and 776571-10) is a low-noise, rugged Chassis designed to hold up to 12 SCXI modules. This model can not only power SCXI modules, but it can handle all trigger, timing, and signal routing between the user’s SCXI modules and digitizers as well. For future expansion or more extensive systems, a maximum of eight NI SCXI 1001 Chassis can be daisy-chained for high-channel-count applications with the help of a single E series digitizer.
To match the user’s country, this Chassis offers seven different power options, each with a different part number, and can be reconfigured for use in other countries as well. The SCXI 1001 is compatible with all the major operating systems, including Windows, Linux, Mac OS, and LabVIEW RT. The National Instruments SCXI-1001 is fully compatible with the NI-DAQ 7 and NI-SWITCH driver software, making configuration and operations a simple task. It can be programmed using software packages/application development environments (ADEs) such as LabVIEW, LabWindows/CVI, Measurement Studio, or VI Logger. Using any of the above-mentioned ADEs greatly speeds up your development time. The NI SCXI-1001 has optional rear or front rack mountable configurations.
With a forced air cooling mechanism, this Chassis can be used in a rack-mount, panel mount, or portable configuration. This SXCI Chassis is featured with the SCXIbus. Any module installed in the chassis will automatically connect to the bus in the backplane. The SCXIbus enables communication between different module’s routes for digital and analog signals. The NI SCXI 1001 can also synchronize the timing between the DAQ device and each module. Thus, this setup allows the user to scan input channels from multiple modules at a rate of 333 kS/s for every DAQ device. The device weighs 14 oz., and measures 9.8 x 17.3 x 7.0 in. in physical dimensions. It has a recommended operating temperature range of 0 to 50 °C, and a storage temperature range of –20 to 70 °C.
SCXI-1001 Obsolete Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.
| Model | SCXI-1001 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 776571-02, 776571-05, 776571-07, 776571-04, 776571-03, 776571-01, 776571-06, 776571-09, and 776571-10 |
| Series | SCXI Series |
| Type | Chassis |
| Slots | 12 |
| Internal Analog Buses | 3 |
| Dimensions | 9.8 by 17.3 by 7.0 in. |
| Weight | 14 lb, 14 oz. |
| Warranty | Three Year Warranty |
| SCXI-1001 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the SCXI-1001:
1.81455E-26, 1.81455E-28, 181315-01, 181315B-01, 181315B-01L, 18145.5, 181455-01, 181455-01C, 181455-31, 181455-31B, 181455-31C, 181455-32, 181455D-01, 181455D-31, 181455D-32, 181455D-33, 181455F-01, 181455F-31, 181455F-33, 181455G-01, 181455G-31, 181455H-01, 181455H-31, 181455H-32, 181455H-33, 181455J-01, 181455J-31, 181455J-32, 181455J-33, 181455K-01, 181455K-31, 181455K-32, 181455K-33, 181455L-01, 181455L-31, 181455L-32, 181455L-33, 181455M-01, 181455M-31, 181455M-32, 181455M-33, 181455N-01, 181455N-31, 181455N-32, 181455N-33, 181455P-01, 181455P-31, 181455P-32, 181455P-33, 181455Q-01, 181455Q-31, 181455Q-32, 181455Q-33, 181455R-01, 181455R-31, 181455R-32, 181455R-33, 181455T-01L, 181455T-31L, 181455T-32L, 181455T-33L, 18149, 181490F-01, 181490G-01, 181490H-01, 181490J-01, 181490K-01, 181490L-01, 181490M-01L, 181740D-01, 192499A-01, 192949-01, 192949A-01, 192949A-04, 766056-01, 766106-01, 776571-01, 776571-02, 776571-03, 776571-04, 776571-05, 776571-06, 776571-07, 776571-09, 776571-10, 778571-01, 778571-04
Associated NSNs for the SCXI-1001:
5975-01-567-9475 (5975015679475), 5975-01-567-9475 (5975015679475)
National Instruments SCXI-1001 Frequently Asked Questions
Question: Is there a way to programmatically detect if the SCXI 1001 is powered on?
Answer: No, the user can only determine if the SCXI 1001 is communicating with configured modules via NI-DAQ or a LabVIEW VI.
Question: What is the input voltage for the NI SCXI-1001?
Answer: The NI SCXI-1001 has an input voltage of 100, 120, 220, or 240 VAC at 50 or 60 Hz.
Question: Why does the SCXI-1001 have seven different part numbers? What are the differences between them?
Answer: The SCXI-1001 has several different power options meant for use in specific countries: 776571-02 is Swiss 220V, 776571-05 is N. American 240V, 776571-07 is Japan 100V, 776571-04 is Europe 240V, 776571-03 is Australia 240V, 776571-06 is U.K. 240V, 776571-09 is Korea 220V, and 776571-10 is China 220V.
Question: What are the differences between later revisions of the National Instruments SCXI-1001?
Answer: The National Instruments SCXI-1001 Chassis through revision D utilize jumpers on Slot 0 for chassis addressing, whereas Revision E and later chassis utilize a DIP switch.
Question: What types of applications is the NI SCXI-1001 best to be used for?
Answer: The NI SCXI-1001 is best for systems with a massive channel count.
