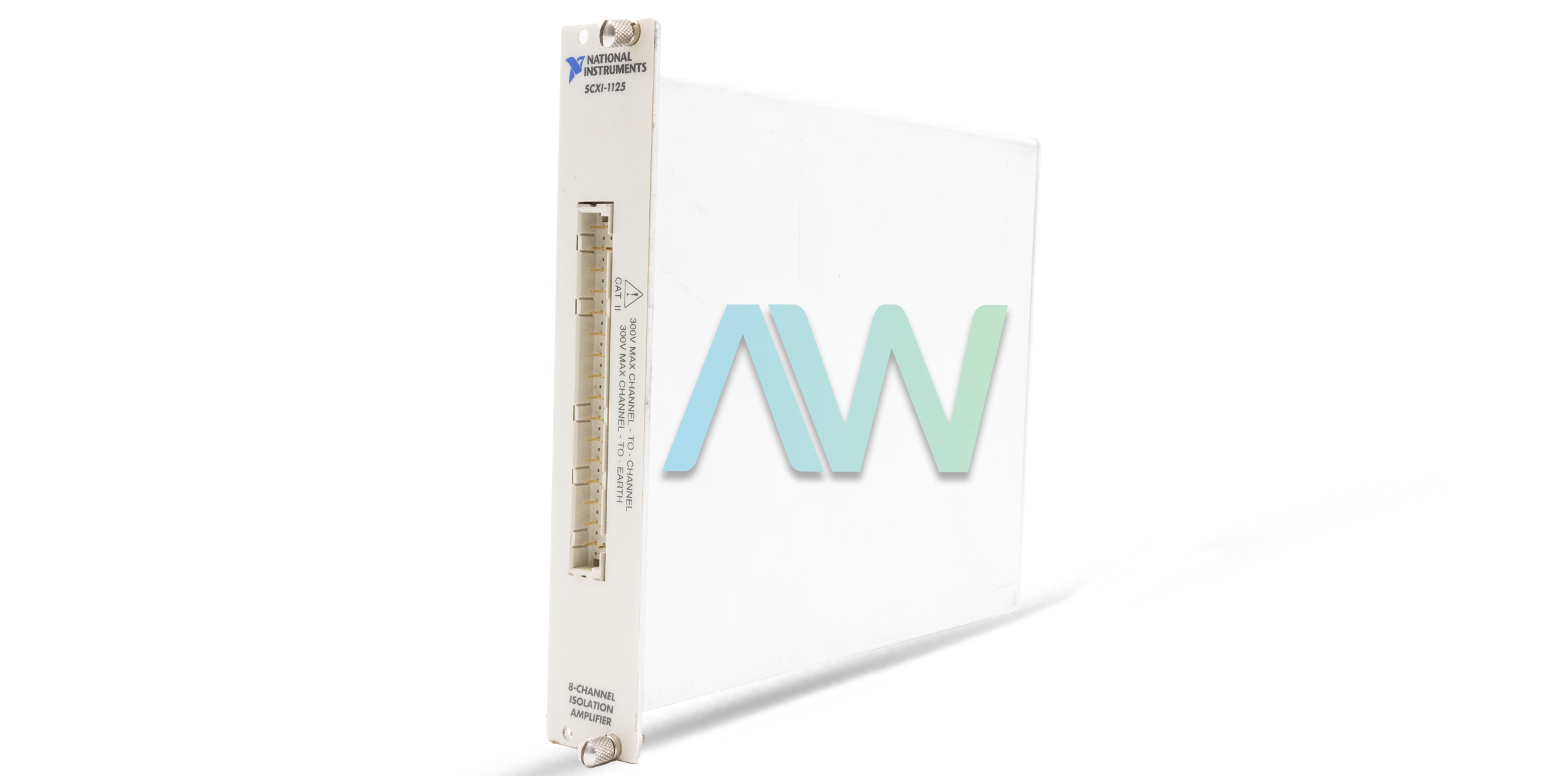

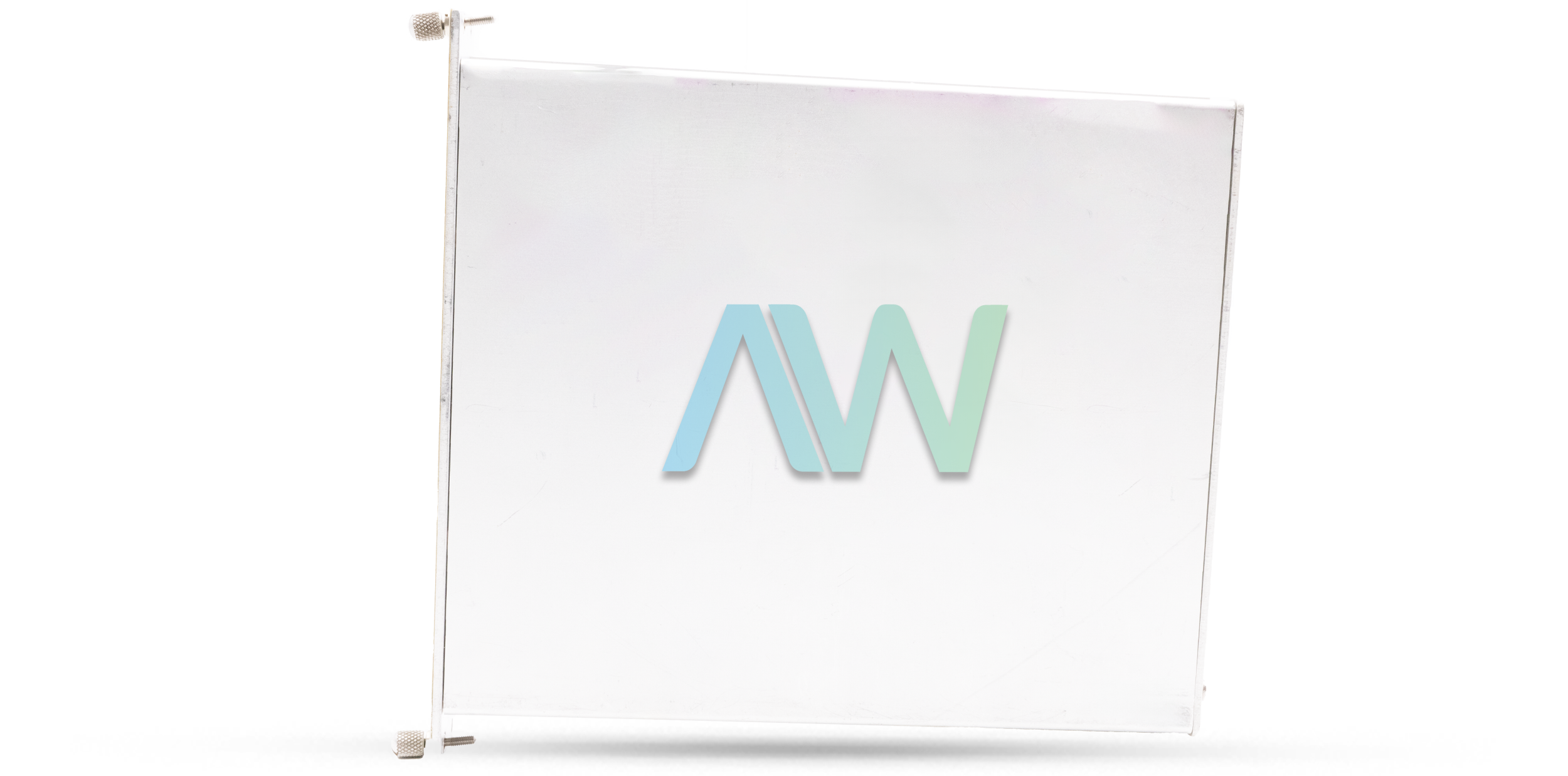

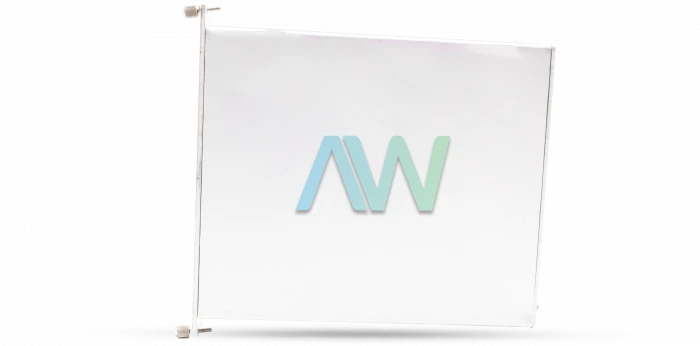

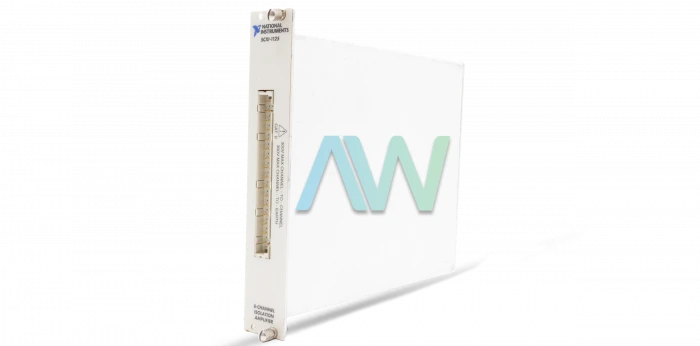

National Instruments SCXI-1125 Voltage Input Module

The NI SCXI-1125 Voltage Input Module (Part Number: 776872-25) offers 300 Vrms of working isolation and low pass filtering for every analog input channel. Its architecture is perfect for intensification and confinement of millivolt sources, volt sources, 0 to 20 mA, 4 to 20 mA, and thermocouples. The SCXI-1125 can multiplex its eight channels into a single channel of the DAQ gadget, while also allowing the user to add modules to expand channel count. This module additionally offers parallel-mode operation for expanded output capability.

The NI SCXI-1125 contains calibration hardware to invalid out mistake sources. With programmable offset calibration, software-programmable analog switches ground the inputs of every one of the instrumentation enhancers for offset error calibration. A locally available EEPROM stores the calibration constants for each channel for each input extend in a client characterized zone. The EEPROM also stores an arrangement of factory calibration constants in permanent memory, which cannot be altered. The NI-DAQ driver software straightforwardly utilizes the calibration constants to verify for gain and offset errors.

In this model, each channel incorporates an automatic low pass filter that the user can configure for 4 Hz or 10 kHz. With the SCXI-1125, the user can perform irregular scanning, meaning they can choose just the channels from which they need to pick information, then scan channels in any order. Each channel is independently confined with a working common-mode voltage of 300 Vrms between channels or channel to earth. Furthermore, the SCXI-1125 is CE guaranteed as double insulated, Category II of operational isolation.

SCXI-1125 End of Life Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelSCXI-1125 (776572-25)
ManufacturerNational Instruments
SeriesSCXI Series
TypeVoltage Input Module
Channels8
Output Range±5.0 V
Dimensions7.4 x 6.8 x 1.2 in.
Weight22.6 oz.
WarrantyOne Year Warranty
SCXI-1125 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments SCXI-1125 Frequently Asked Questions



Question: What is the suggested warm-up time for the NI SCXI-1125?



Answer: The suggested warm-up time for the NI SCXI-1125 is 15 minutes.



Question: What are the bandwidth filter options for the SCXI-1125?



Answer: For the SCXI-1125, the bandwidth filter options are 4 Hz and 10 kHz.



Question: Does the SCXI-1125 have a self-calibration capability?



Answer: The SCXI-1125 does support self-calibration. The SCXI calibration VI should be used for this.



Question: What type of A/D Converter structure does the NI SCXI-1125 have?



Answer: The NI SCXI-1125 is a signal conditioning module, so it must be interfaced to a compatible DAQ card for A/D conversion.



Question: Which types of output modes does the SCXI-1125 support?



Answer: The SCXI-1125 supports parallel and multiplexed output modes.
