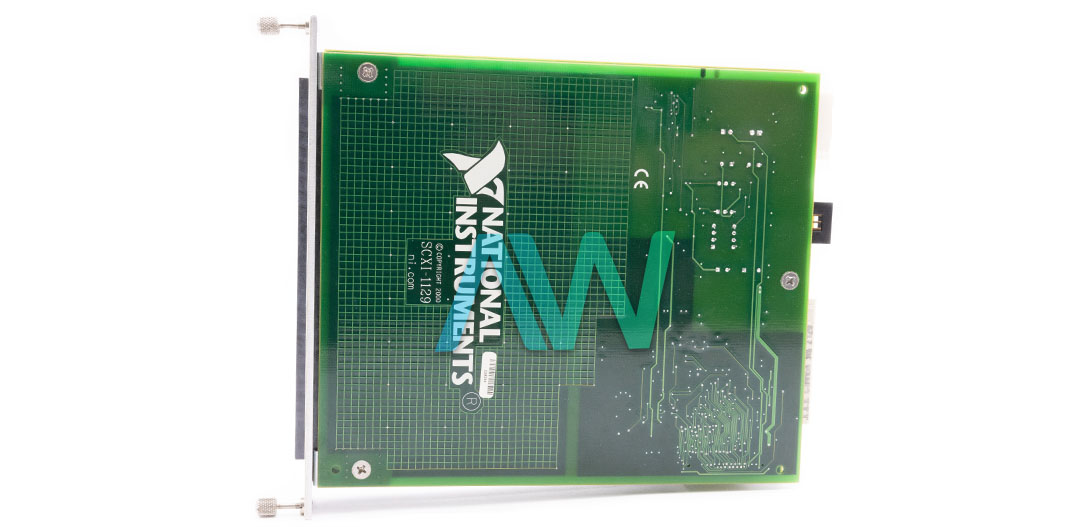

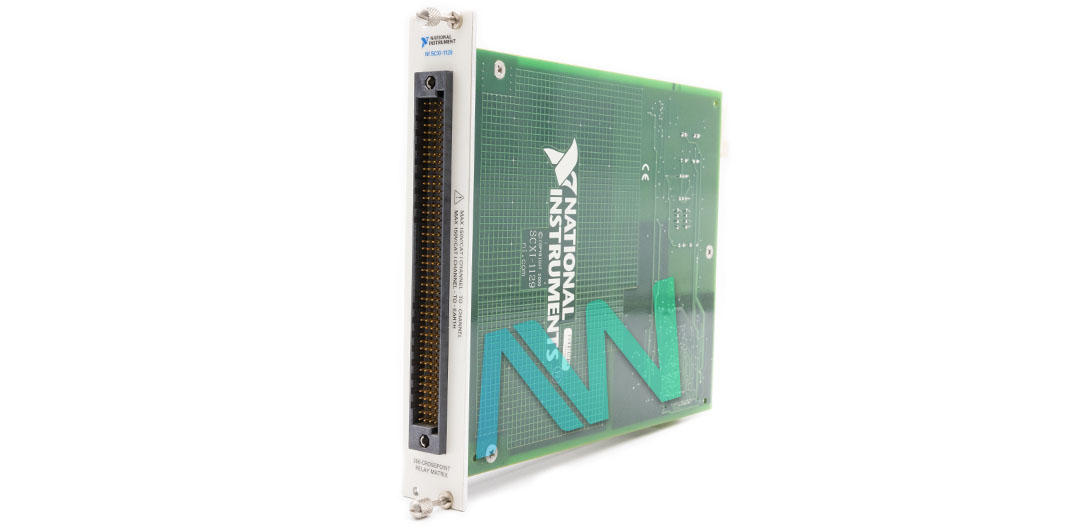

SCXI-1129 National Instruments Matrix Switch Module | Apex Waves | Image SCXI-1129 National Instruments Matrix Switch Module | Apex Waves | ImageSCXI-1129SCXI-1129 | Legacy, Refurbished and New Surplus
SCXI-1129 National Instruments Matrix Switch Module | Apex Waves | Image
SCXI-1129 National Instruments Matrix Switch Module | Apex Waves | Image
SCXI-1129 New
SCXI-1129 | Legacy, Refurbished and New Surplus

SCXI-1129

4.6/5 | 6 ratings

Modular Systems > National Instruments > SCXI

Part Number SCXI-1129
Manufacturer/Brand National Instruments
Description: SCXI-1129 256 crosspoint high-density Matrix/Multiplexer Switch Module
In Stock | Ships Today
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:


National Instruments SCXI-1129 Matrix/Multiplexer Switch Module

The SCXI-1129 (Part Number: 776572-29) is a 256 crosspoint high-density Matrix Module. This module offers a 4 x 64, 2-wire switch matrix configuration maximum on an SCXI platform. The NI SCXI-1129 Matrix/Multiplexer Switch Module can additionally function as four 4 x 16, 2-wire matrixes; two 4 x 32, 2-wire matrixes; or two 8 x 16, 2-wire matrixes. The standard matrix language defines matrixes by the quantity of rows by the quantity of columns they comprise. With terminal blocks, the SCXI-1129 module can be configured as a multitude of matrixes.

The SCXI 1129 module is created to function well at low and high voltages. For low-voltage measurements, this module utilizes relays with < 9 µV thermal offset to guarantee precise measurements. This Matrix/Multiplexer Switch Module supports the analog bus with a specific adapter, the high-voltage analog bus backplane adapter in the SCXI-1357/1358 kit, at the back of the module. This adapter enables the user to expand the high-voltage analog bus backplane adapter without the necessity of complex wiring. If the user links several modules to the high-voltage analog bus backplane adapter, then they can expand the matrix size without the need for external row or column connectors. The SCXI-1129 module can be utilized with one of the following terminal blocks: the SCXI-1336, SCXI-1333, SCXI-1335, SCXI-1337, SCXI-1334, or SCXI-1339.

When the user is installing the NI SCXI-1129 module in an SCXI chassis, the farthest right slot (when the chassis is observed from the front) must be the initial slot filled. Then, the user can proceed filling the slot to the left with the next SCXI-1129. Other SCXI modules can be loaded from left to right.

SCXI-1129 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelSCXI-1129
ManufacturerNational Instruments
Part Numbers776572-29, 186970C-01
TypeMatrix/Multiplexer Switch Module
Crosspoints256
Maximum Scan Rate100 crosspoints/s
Relay TypesElectromechanical, latching and nonlatching
Dimensions7.8 × 1.2 × 6.8 in.
Weight1 lb., 10 oz.
WarrantyOne Year Warranty
SCXI-1129 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments SCXI-1129 Frequently Asked Questions



Question: When utilizing a DMM to control a SCXI chassis, which mode can the DMM and the SCXI-1129 function?



Answer: When utilizing a DMM to control a SCXI chassis, the DMM and the SCXI-1129 can solely function in synchronous mode.



Question: What is the quickest scan rate for the NI SCXI-1129?



Answer: The quickest scan rate for the NI SCXI-1129 is 125 scans/s.



Question: How do I program the SCXI-1129?



Answer: The SCXI-1129 is programmed with the NI-SWITCH driver software. This software takes care of the functioning system interfacing and complicates issues of register writes to the module.



Question: Which type of I/O connector does the NI SCXI-1129 have?



Answer: The NI SCXI-1129 has a 180-pin HDI I/O connector.
