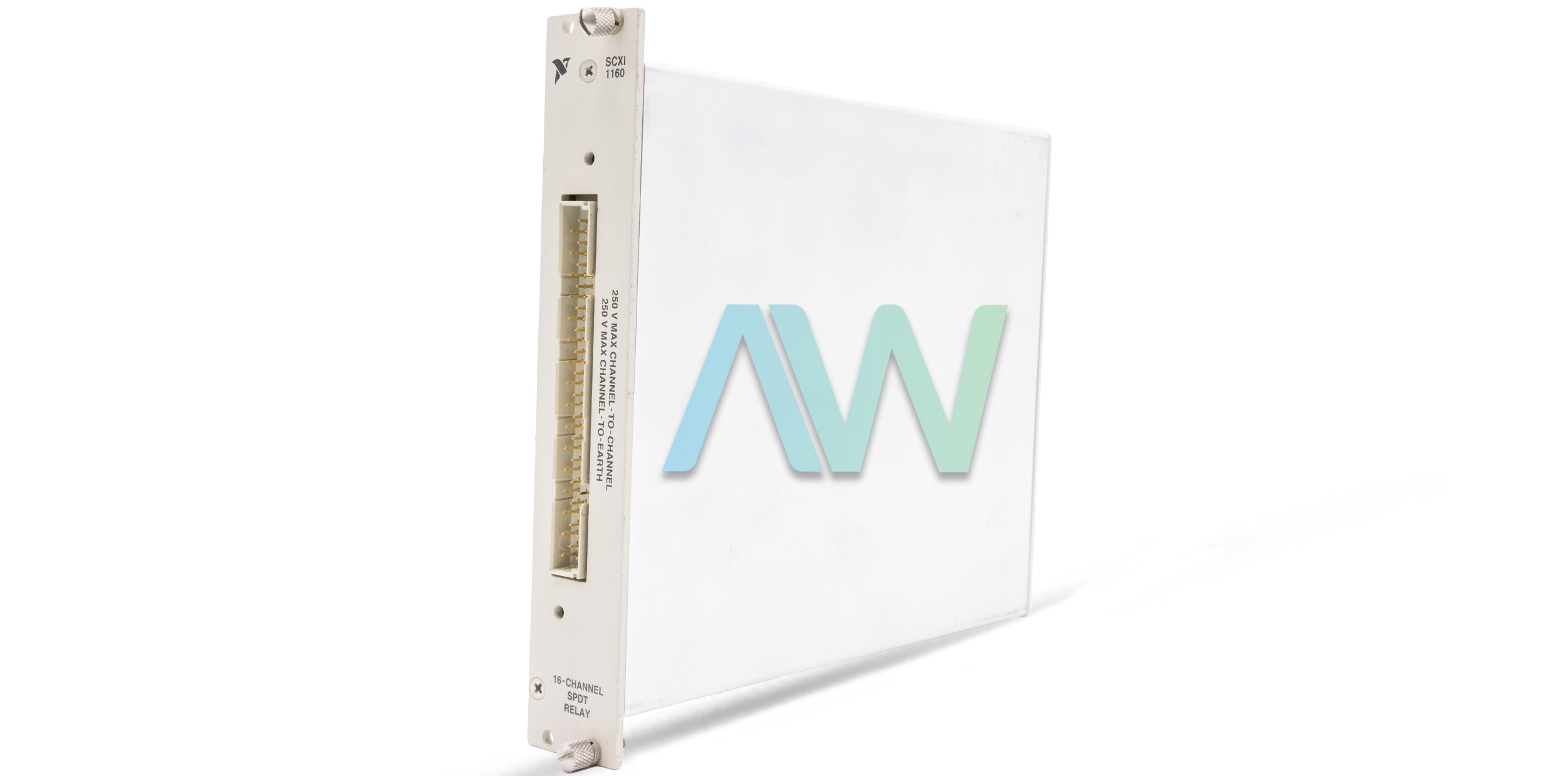

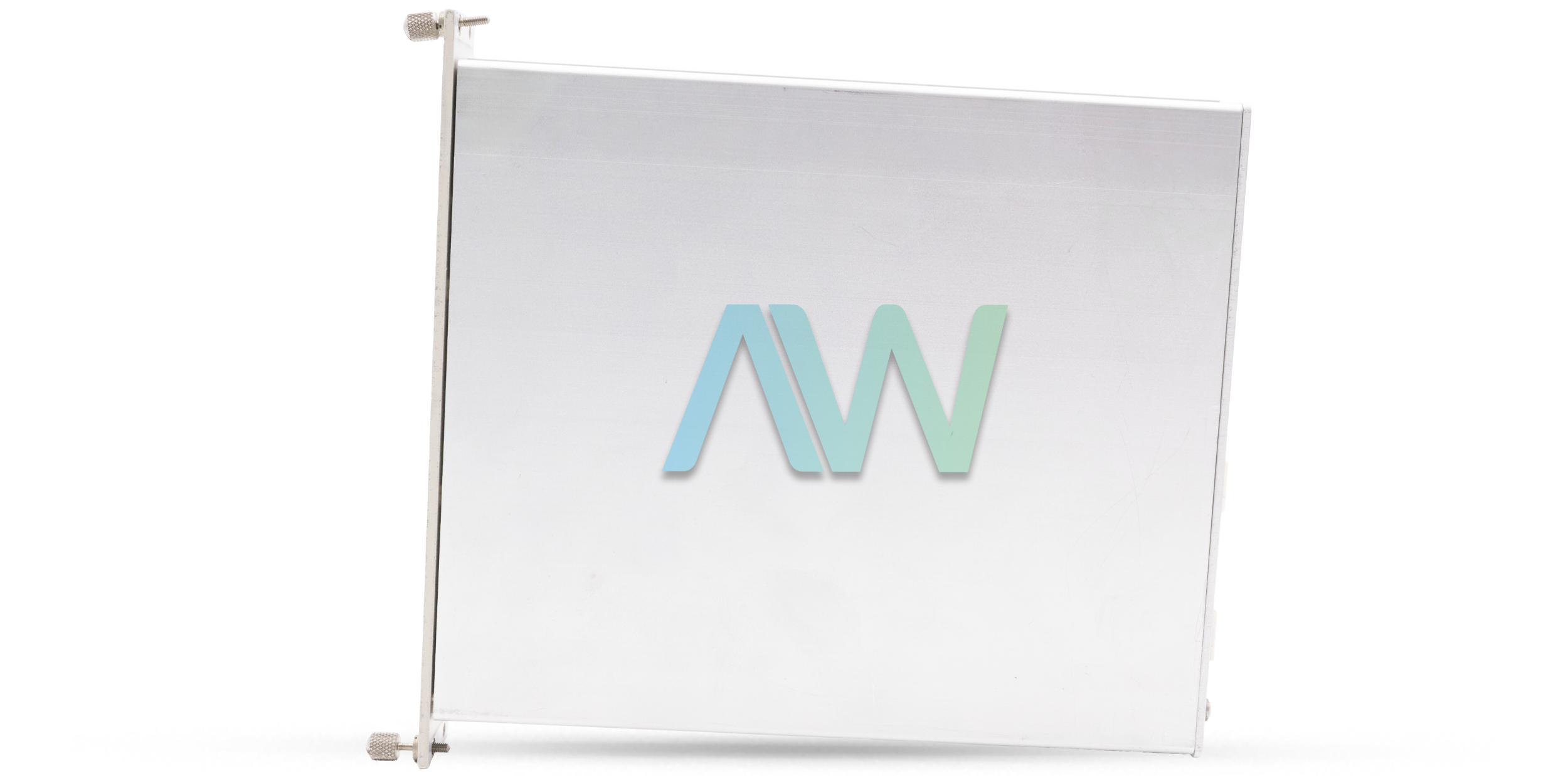

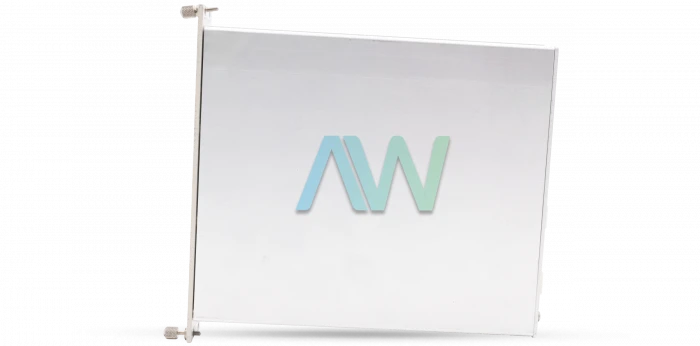

National Instruments SCXI-1160 General-Purpose Relay Switch Module
The NI SCXI-1160 (Part Number: 776572-60) General-Purpose Switch Module has 16 individual SPDT Form C, electromechanical, latching relays, which have extremely low on-resistance and thermal offset. This module’s relays are capable of switching, routing, and controlling medium-level signals. The SCXI 1160 Switch Module has a maximum switching rate of 50 operations per second and is completely software programmable. The switching capacity of the module is 2 A at 250 VRMS or 2 A at 30 VDC. The NI SCXI-1160 can be used with NI MIO-16 Boards; Lab-NB, Lab-PC, Lab-PC+, Lab-LC, and PC-LPM-16 boards, as well as with the DIO-24, DIO-32F, and DIO-96 boards. The device has a relay operating time of 10 ms, with an offset voltage of 3 µV.
An advantage of using the SCXI-1160 module is that more than one module can be used in one or more chassis, resulting in the capability to control and switch thousands of signals. When the SCXI 1160 is used with an SCXI chassis, the chassis can function as a controller or switch in several types of applications, such as industrial process monitoring, production testing, and laboratory testing. The device operates using the NI-SWITCH driver software which is compatible with software packages such as LabVIEW, and LabWindows/CVI.s
There are five jumpers on the NI SCXI-1160 Relay Switch Module. First, Jumper W1 links a pullup resistor to the SERDATOUT signal on the back signal connector. Jumpers W2, W3, and W4 designate if the SCXI-1160 is going to be linked to a DIO board or an MIO board. If the SCXI 1160 does not have anything cabled to the back signal connector, then the arrangement of these jumpers does not matter. Finally, Jumper W5 carries the SCXI bus MISO line, after buffering, to the SERDATOUT signal on the back signal connector. This Relay Switch Module does not have access to the analog backplane to safeguard the backplane from faults when high voltages are present on the relay contacts. The NI instrument has the dimensions: 1.2 x 6.8 x 8.0 in.
SCXI-1160 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.
| Model | SCXI-1160 |
|---|---|
| Part Number | 776572-60 |
| Manufacturer | National Instruments |
| Type | General-Purpose Switch Module |
| Relays | 16 |
| Relay Type | SPDT (Form C), latching |
| Relay Operate and Release Time | 10 ms |
| Offset Voltage | 3 µV typical |
| Dimensions | 1.2 by 6.8 by 8.0 in. |
| Warranty | 2-3 Year Warranty |
| SCXI-1160 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the SCXI-1160:
18213.9, 182139-01, 182139B-01, 182139C-01, 182139D-01, 182139F-01, 182139G-01L, 182140B-01, 182140C-01, 182140D-01L, 776572-60
Associated NSNs for the SCXI-1160:
5998-01-567-9481 (5998015679481), 5998-01-567-9481 (5998015679481)
National Instruments SCXI-1160 Frequently Asked Questions
Question: Which accessories can the National Instruments SCXI-1160 be used with?
Answer: The National Instruments SCXI-1160 can be used with the SCXI-1324 Terminal Block (Part Number: 777687-24).
Question: Can the NI SCXI-1160 be controlled with the PCI-6220?
Answer: Yes, the NI SCXI-1160 can be controlled with the PCI-6220 with the API.
Question: Which driver software can be utilized with the SCXI-1160?
Answer: NI-SWITCH driver software can be utilized with the SCXI-1160.
Question: Which certifications does the NI SCXI-1160 have?
Answer: The NI SCXI-1160 is UL certified.
