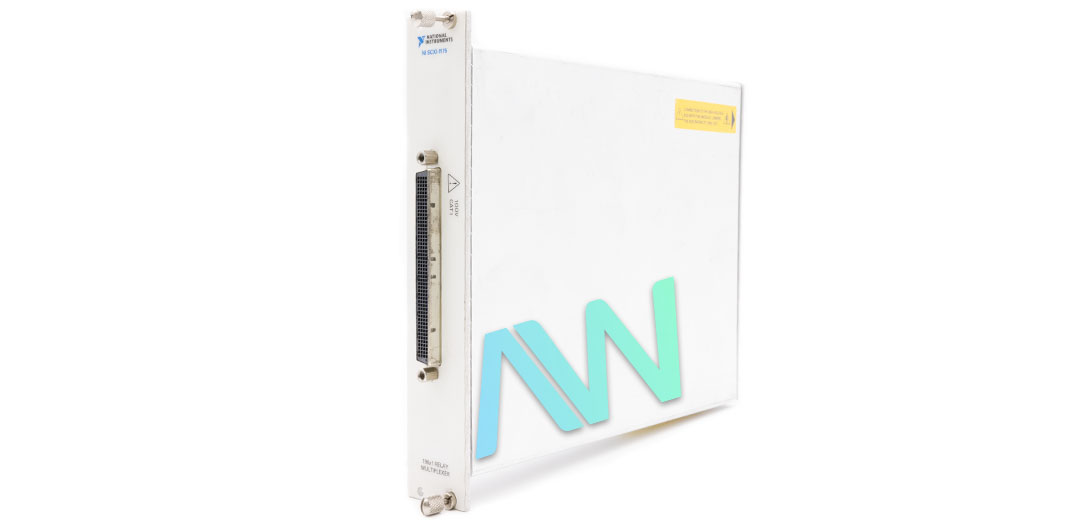

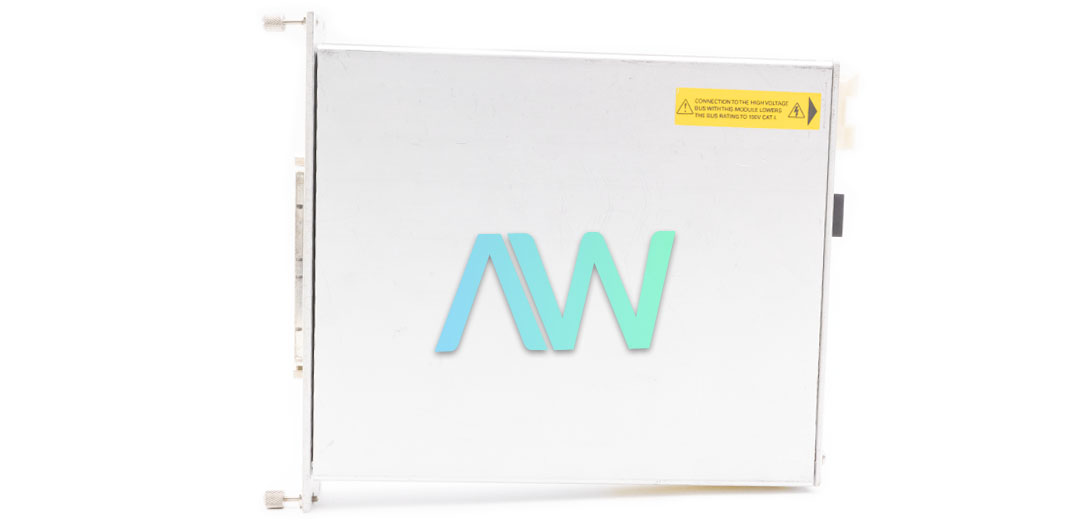

National Instruments SCXI-1175 Matrix/Multiplexer Switch Module

The National Instruments SCXI-1175 (Part Number: 776572-75) is a high-density Switch Module that can direct many signals to estimation gadgets or from source units. Each channel utilizes strong electromechanical transfers. The NI SCXI-1175 is an ideal module for computerized test applications for a substantial number of channels. This module is evaluated for Measurement Category I and is expected to support signal voltages no higher than 100 V. This module can also withstand a maximum 500 V impulse voltage.

This instrument can be used with a control cable. For the SCXI-1175 assignments, the cable will be a SH9MD-AUX, accessible in 1 or 2 m lengths. For the USB-13xx assignments, the cable will be a standard 1 m USB link. Extra links are accessible when setting up multi-chassis frameworks. Notwithstanding the SH9MD-AUX or USB link expected to associate with another case, a HV8-HV8 cable will be expected to interconnect isolated high-voltage backplane gatherings. In this design, a few multiplexer or network signals can be passed, starting with one case and then onto the next through a single cable. The user can also effortlessly associate signals from the HVAB to the banana jack inputs of a DMM by utilizing a HV8-BAN4 cable.

The NI SCXI-1175 offers a maximum switching power per channel of 30W, a DC isolation resistance superior to 1 GΩ, a maximum total current of 1A, a relay operating time typical of 1ms, and maximum channel-to-channel voltage of 100 V.

SCXI-1175 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelSCXI-1175, 776572-75
ManufacturerNational Instruments
SeriesSCXI
TypeMatrix/Multiplexer Switch Module
Channels196
Maximum Switching Power30 W, 37.5 VA (DC to 60 Hz) per channel
Maximum Total Current1 A
WarrantyOne Year Warranty
SCXI-1175 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments SCXI-1175 Frequently Asked Questions



Question: How many signals can the SCXI-1175 route to measurement devices?



Answer: The SCXI‑1175 can route hundreds of signals to measurement devices or from source units.



Question: What type of relays are used in the SCXI 1175?



Answer: Each channel of the SCXI 1175 uses electromechanical relays.



Question: How high can the scanning speed go on the NI SCXI-1175?



Answer: The NI SCXI-1175 has a scanning speed of up to 140 cycles/s.
