VXI-MXI

4.9/5 | 7 ratings

Modular Systems > National Instruments > VXI and VME

Part Number VXI-MXI
Manufacturer/Brand National Instruments
Description: VXI-MXI, C-size, VXIbus Extender
In Stock | Ships in 5-10 Days
(expedited shipping options available)
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

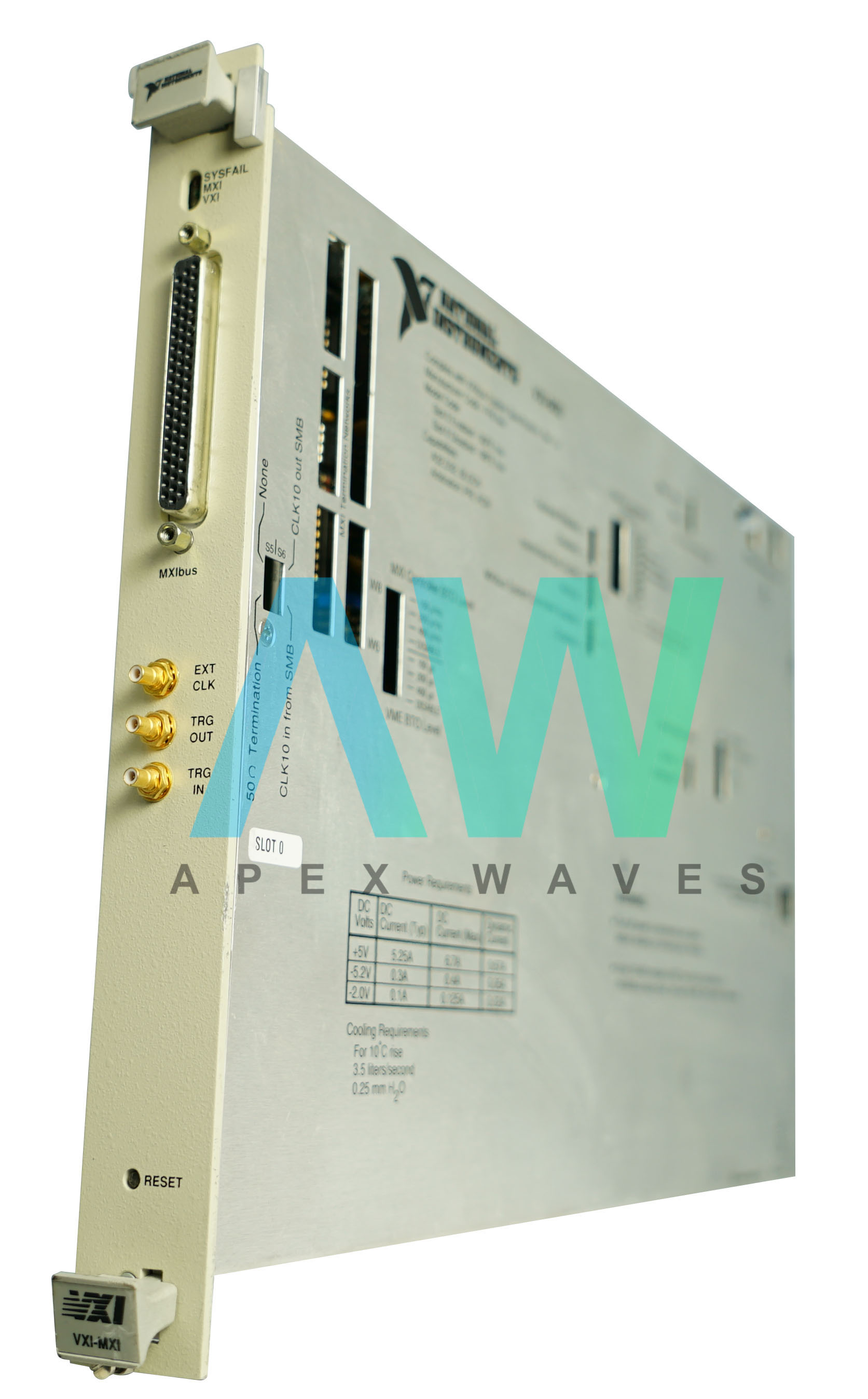

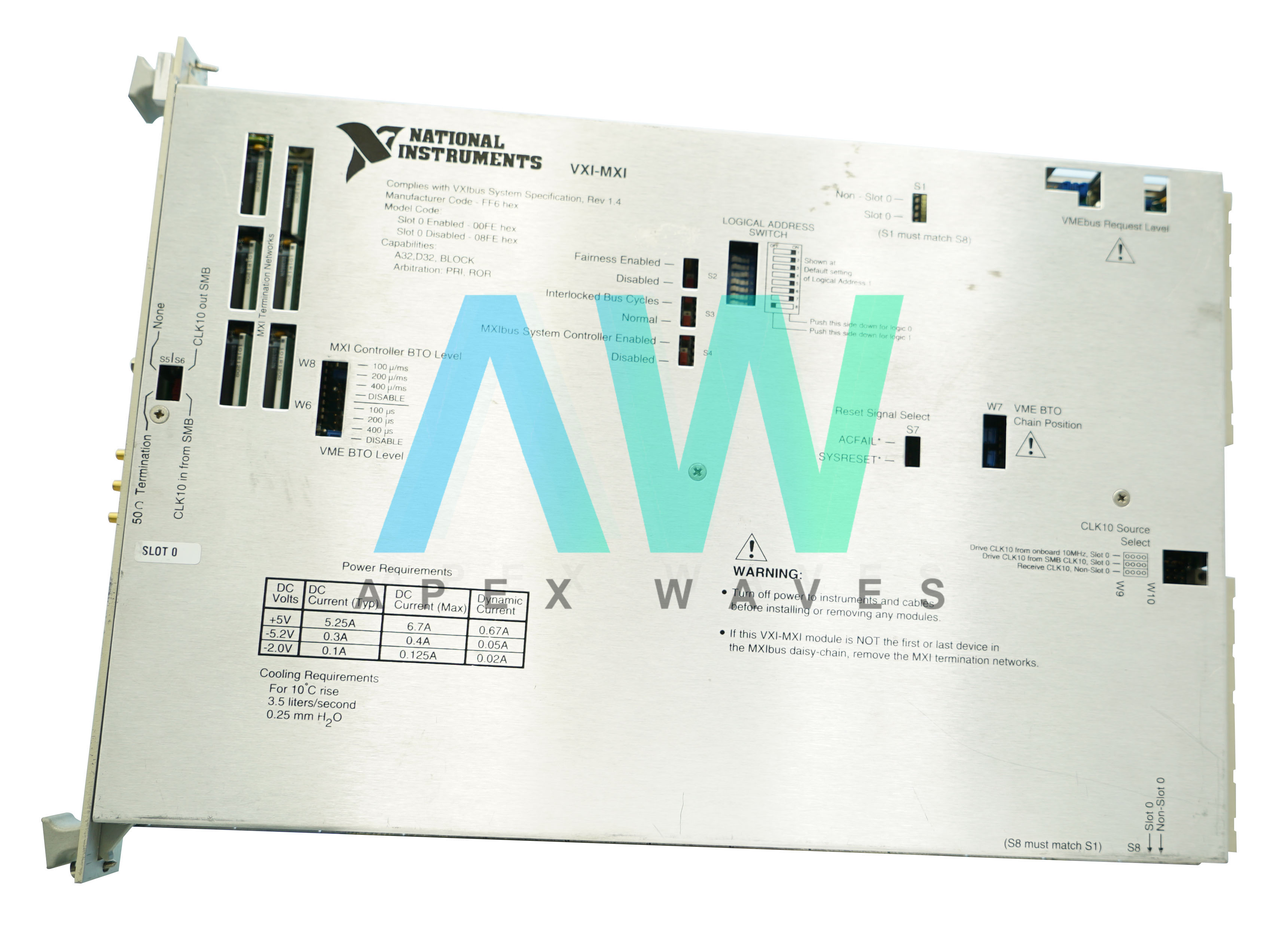

­­ National Instruments VXI-MXI VXIbus Extender

The VXI-MXI is a VXIbus Extender. The VXI-MXI interface module has been designed and manufactured by National Instruments. The NI VXI-MXI is a register based VXIbus module. The VXI-MXI module belongs to the extended class mainframe series. The VXI-MXI features the slot 0 capability. This feature makes it useable in C-size as well as D-Size VXIbus chassis. The function of the VXI-MXI module is to interconvert the VXIbus bus cycles and MXIbus bus cycles.

The VXI-MXI Interface Module can interface a VXIbus to a 32-bit MXIbux. The National Instruments VXI-MXI module is capable of extending VXIbus to multiple devices, such as multiple mainframes, instruments, and PCs that are equipped with an external MXIbus. When multiple VXIbus mainframes are interfaced through the module, they operate as a single unit of a VXIbus system. The VXI-MXI module can also provide an interface between a VXIbus mainframe and an external PC. However, to facilitate this feature, the external PC must have an MXIbus interface. If such an PC is interfaced with a VXIbus mainframe using the VXI-MXI module, it operates just like an embedded computer.

This VXIbus Extender has several distinct features that make it useful in a variety of applications. VXIbus devices can be configured dynamically by using the VXI-MXI module. The NI VXI-MXI can also function in integrated block mode. This mode of the VXI-MXI interface module facilitates high-speed data transfers. The National Instruments VXI-MXI module shows full compatibility with the MXIbus and the VXIbus specifications.

VXI-MXI Obsolete Status has been announced by National Instruments, but the VXIbus Extender will still be available for purchase and repairs by Apex Waves.

ModelVXI-MXI
ManufacturerNational Instruments
TypeVXIbus Extender
Slot RequirementsSingle VXI C-size slot
A16 Space64 B
Daisy-Chain Delay120 ns
ConnectorSingle fully implemented MXIbus connector
SizeC-size
Dimensions9.187 in. by 13.386 in.
Warranty2-3 Year Warranty
VXI-MXI ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the VXI-MXI:

180960-11C, 181045-01D, 181045-01G, 181045-02, 181045-02G, 181045-52, 181045-52G, 181045-53G, 181045H-52, 181220-01C, 181220-52C, 181220D-52, 182.875, 182175-01G, 182175-52G, 182175-53G, 182875B-03, 182875D-02, 182875D-03, 182875F-03, 182875K-01, 463240-48, 776310-01, 776310-02, 776310-021, 776310-0214, 776310-53


Associated NSNs for the VXI-MXI:

7050-01-585-9295 (7050015859295), 7050-01-433-0138 (7050014330138)
