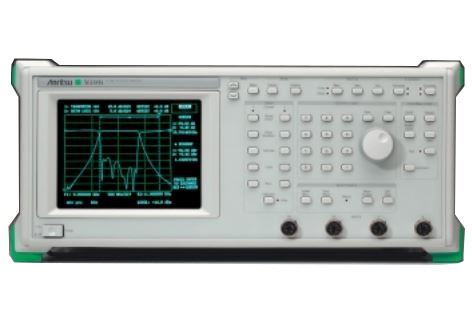

Anritsu 54131A Scalar Network Analyzer
The Anritsu 54131A Scalar Network Analyzer is capable to offer many important features, such as: Standard Event Status Enable Command, Standard Event Status Enable Query, Standard Event Status Log Query, and Singular Status Query. The first one sets the bits for the standard occasion state empower log, the second one allows the user to inquire the estimation of the Standard Event Status Enable log, the third queries every one of the qualities in the standard occasion status log, and the last one allows the user to perform the question that is sent by the 54131A because of an overview in parallel. It creates the estimation of the IST without performing a parallel test. This output esteem is 1 if IST is TRUE and 0 on the off chance that it is FALSE.
54131A also has an ID inquiry, which restores a distinguishing proof string to the GPIB. The reaction will be in the accompanying configuration: Anritsu, display, serial number, firmware level; where the present model number, serial number, and firmware adaptation of the 54131A will be passed.
The 54131A Network Analyzer offers an option called Operation Full Command, with which the instrument will produce the OPC message in the standard occasion status log when every pending operation have finished, (for example, recurrence breadth or power clear). On the other hand, the 54131A also includes an option called Operation Full Query; With this option the instrument returns an ASCII 1 when every pending operation are finished.
This model includes a users’ manual that can be found on the ApexWaves.com website.
| Model | 54131A |
|---|---|
| Manufacturer | Anritsu ã‚¢ãƒ³ãƒªãƒ„æ ªå¼ä¼šç¤¾ |
| Series | Anritsu 54100A |
| Type | Scalar Network Analyzer |
| Frequency | 10 GHz to 16 GHz |
| Dynamic Range | −55 dBm to +16 dBm |
| Dimensions | 7 x 16.75 x 18.75 inches |
| Sweep speed | < 70 ms |
| 54131A Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for 54131A:
| Model/Option | Description |
|---|---|
| 54131A Option1 | Rack mounting with slides |
| 54131A Option 2 | Step attenuator 70 dB RF |
| 54131A Option 2A | Step attenuator 70 dB, 20 GHz MW |
| 54131A Option 2B | Step attenuator 70 dB, 26.5 GHz MW |
| 54131A Option 2C | Step attenuator 70 dB, 40 GHz MW |
| 54131A Option 2D | Step attenuator 70 dB, 50 GHz MW |
| 54131A Option 4 | 75 Ω source output (available to 3.0 GHz) |
| 54131A Option 5 | Add reference channel |
| 54131A Option 6 | Add external levelling |
| 54131A Option 7 | Internal distance-to-fault software |
| 54131A Option 8 | Internal relative group delay software |
| 54131A Option 12 | Add front panel cover |
| 54131A Option 13 | Add front mounted handles |
| 54131A Option 16 | +15 V DC supply for millimeter wave source module |
| 54131A Option 25 | Maintenance manual |
| 54131A Option 26 | Extra operation and GPIB programming manual |
| 54131A Option 33 | Canon printer |
