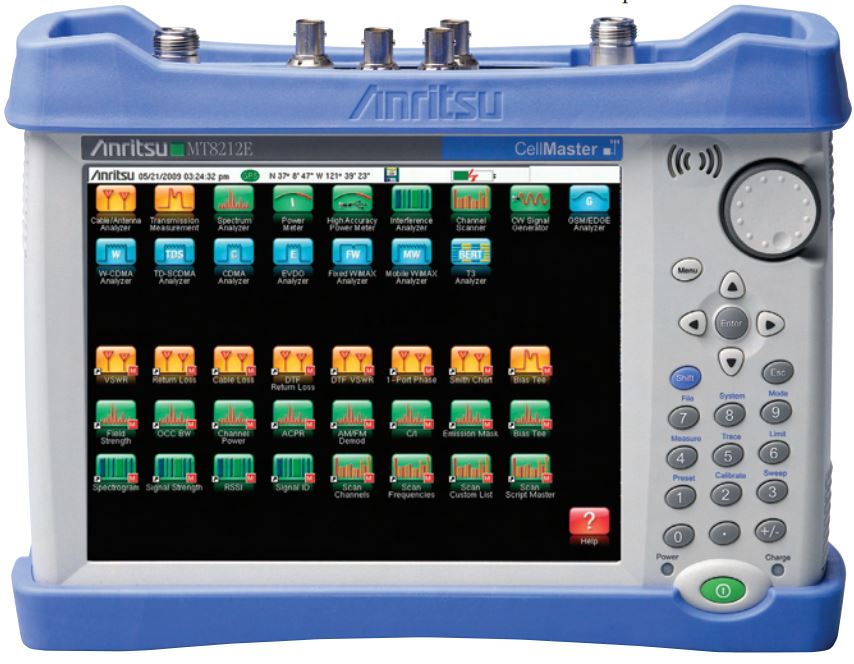

Cell Master MT8212E
Compact handheld Base Station Analyzer featured with Signal Analyzer Options for 2/3 & 4G Networks including WiMAX, LTE for digital broadcast
Overview
Cell Master MT8212E is a new generation, compact multi-functioned Base Station Analyzer by Anritsu and it is an ideal one for troubleshooting, deployment, and maintenance of wireless networks. MT8212E is made for technical staff working in the field; thus it comes in an excellently rugged design and with adequate arrangements for ensuring precise measurements in environments with excessive interference.
Functional Highlights & Capabilities
· GPS Coordinates tagging of stored traces
· Bias Tree, Built-in
· Battery backup up to 3 hour
· Equipped with USB port for Data transfer
· Integrated Power Meter
· 4 GHz to 26 GHz USB Power Sensors
· Warm-up time < 5 minute
· Mobile, Fixed WiMAX
· GSM/EDGE
· LTE (10 MHz B/W)
Highlights: Cable and Antenna Analyzer
· Frequency Range 2 MHz to 4 GHz
· Typical Sweep Speed 1msec/data point
· 32 V Internal Bias Tee
· Compatible with OSL, FlexCal™ and InstalCal™
· Measurement Capabilities;
· Cable Loss
· DTF
· Phase
· VSWR
· RL
Highlights: Spectrum & Interference Analyzer
· DANL: -152 dBm in 10Hz RBW
· Dynamic Range: >95 dB in 10 Hz RBW
· Phase Noise @ 10 kHz offset at 1 GHz: -100 dBc/Hz max
· Measurement Capabilities
· C/I
· ACPR
· Occupied Channel
· Occupied Bandwidth
· Signal ID
· RSSI
· Signal Strength
· Spectrogram
Highlights: Power Meter
Frequency 10 MHz to 4 GHz
Offset Range 0 to +100 dB
Measurement Range -120 dBm to +26 dBm
Rx Noise Floor Testing
The Cell Master MT8212E is capable to measure the Rx Noise Floor on the uplink of any base station using the measurement for channel power. It is an important test as an elevated noise floor indicates undesired signal interference and brings negative impact on the capacity factor.
| Model | MT8212E |
|---|---|
| Cable & Antenna Analyzer | 2 MHz to 4 GHz |
| Spectrum Analyzer | 100 kHz to 4 GHz |
| Power Meter | 10 MHz to 4 GHz |
| Measurements | VSWRReturn LossCable LossDistance-to-Fault (DTF) Return LossDistance-to-Fault (DTF) VSWR1-Port PhaseSmith Chart |
| Frequency Range | 2 MHz to 4 GHz (MT8212E) |
| Frequency Accuracy | ≤ ± 2.5 ppm @ 25 °C |
| Frequency Resolution | 1 kHz, (RF immunity low)100 kHz, (RF immunity high) |
| Cable and Antenna Analyzer Highlights | •,Measurements: RL, VSWR, Cable Loss, DTF, Phase•,2-port Transmission Measurement: High/Low Power•,Sweep Speed: 1 msec/data point, typical•,Display : Single or Dual Measurement Touchscreen•,Calibration: OSL, InstaCal™, and FlexCal™•,Bias Tee: 32 V internal |
| Spectrum and Interference Analyzer Highlights | •,Measurements: Occupied Bandwidth, Channel Power, ACPR, C/I•,Interference Analyzer: Spectrogram, Signal Strength, RSSI, Signal ID•,Dynamic Range: > 95 dB in 10 Hz RBW•,DANL: –152 dBm in 10 Hz RBW•,Phase Noise: –100 dBc/Hz max @ 10 kHz offset at 1 GHz•,Frequency Accuracy: ± 50 ppb with GPS On |
