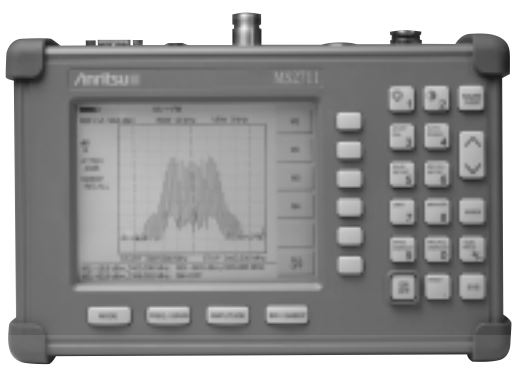

Anritsu Handheld Spectrum Analyzer MS2711A
The Anritsu MS2711A is a portable, hand-held spectrum analyzer created especially for applications like measuring, monitoring, and analysis of signal environments. A complete range of marker capabilities including peak, center, and delta functions are provided for comprehensive and faster measurement of the displayed signals. With a frequency range of 100 kHz to 3000 MHz, the Anritsu MS2711A is an ideal instrument for typical measurements including (but not limited to): in-band interference, transmitting spectrum analysis, cell area interface, and antenna isolation.
This model MS2711A comes with an internal memory to facilitate the storage of up to 200 traces and 10 setups. For additional analysis, hard copies of the traces can also be obtained simply as this instrument has an RS232 DB9 interface useable to attach a printer. Some of the notable features of the MS2711A include: as long as 2.5 hours of battery backup, it limits lines for simple pass/fail measurements quickly, can be operated from a 12.5V DC source, built-in energy conservation features, high-resolution liquid crystal display, and a calculator like keypad.
The MS2711A comes equipped with an internal memory to store a maximum of 200 traces and 10 setups. For further analysis, hard copies of the traces can also be retrieved simply because this instrument has an RS232 DB9 interface useable to attach to a printer.
The MS2711A Spectrum Analyzer comes with dedicated keys for a quick actuation and toggling between different functions and operating modes. Measurements stored in MS2711A’s internal memory can easily be downloaded to a PC with the help of a null-modem serial cable (supplied by vendor).
| Model | MS2711A |
|---|---|
| Manufacturer | Anritsu |
| Series | Anritsu Handheld Spectrum Analyzers |
| Type | Handheld Spectrum Analyzer |
| Frequency | 100 kHz to 3.0 GHz |
| Dynamic Range | >65 dB |
| Sweep time | 650 ms full span |
| Memory | 200 stored traces and 10 test setups |
| MS2711A Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for MS2711A:
MS2711A- Anritsu Handheld Spectrum Analyzer
Frequently Asked Questions
Question:
What type of connector does the MS2711A have?
Answer:
The MS2711A has a Type N Female connector.
Question:
How long does the MS2711A take to warm up?
Answer:
The MS2711A takes approximately five minutes to warm up and give accurate measurements.
Question:
How large is the MS2711A?
Answer:
The MS2711A is 10 x 7 x 2.25 inches.
Question:
What type of display screen does the Anritsu MS2711A have?
Answer:
The Anritsu MS2711A has a monochrome LCD screen.
