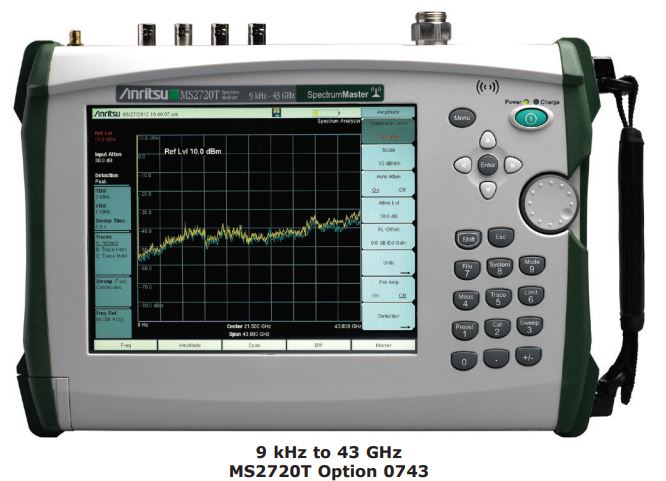

Anritsu MS2720T Spectrum Analyzer
The Anritsu MS2720T Spectrum Analyzer is a high-performance hand-carry test set that is well suited for accurate RF and wireless signal analysis within wide range of 9 kHz to 43 GHz, subject to model variant selection. Being part of the seventh generation of Spectrum Masters, it puts benchtop-level performance into a hand-carry package, including a touch screen, full-band tracking generators up to 20 GHz, and industry-best metrics like dynamic range of over 106 dB, displayed average noise level (DANL) of -164 dBm, and -112 dBc/Hz phase noise performance at 10 kHz offset. The analyzer is suitable for advanced measurements like occupied bandwidth, channel power, adjacent channel power ratio (ACPR), field strength, and spectral emission, along with resolution bandwidth (RBW) that can range from 1 Hz to 10 MHz.
The key features of the analyzer involve interference analysis using spectrogram, signal strength map, real-time RSSI monitoring, supported by integration of GPS for geo-based logging of data. The analyzer is suitable for use on diverse wireless protocols like LTE/LTE-A, GSM, W-CDMA, TD-SCDMA, CDMA/EV-DO, and WiMAX, supported by specialized options like demodulation, over-the-air (OTA), and compliance tests. Built-in tracking generators provide transmission measurements up to 20 GHz, along with optional preamplifiers that provide greater sensitivity for detecting weak-level signals. The analyzer features a built-in 8.4-inch touch screen, three-hour lithium-ion battery, and Type N or Type K ruggedized connectors, subject to range selection, ensuring reliability within outdoor conditions. The options for connectivities involve USB, LAN, and external reference interfaces, supporting integration of external sensors along with remote control using SCPI or browser-based interfaces. Easy test software like easyTest or easyMap helps in handling of data on PCs, map generation, automated test script generation, along with advanced analysis, report generation, along with spectrogram playback for interference hunt using Master Software Tools.
Applications span cellular network optimization, spectrum clearance, transmission monitoring, and fields servicing, supporting CE, C-tick, and MIL-STD-810G compliance certifications. The analyzer is usable up to +55°C and is built to endure unfavorable conditions, including shock, altitudes of extremes, and dampness. Portable by its very nature, the MS2720T is 315 mm wide, 211 mm tall, by 77 mm deep, and 3.7 kg to 4.4 kg in weight, finding power vs. hand-carry use compromise by engineers within regulation, defense, and telecommunications markets.
| Model | MS2720T |
|---|---|
| Model Type | Handheld Spectrum Analyzer |
| Frequency Range | 9 kHz to 43 GHz (Model-Dependent) |
| Dynamic Range | >106 dB in 1 Hz RBW |
| DANL | –164 dBm in 1 Hz RBW |
| Phase Noise | –112 dBc/Hz @ 10 kHz Offset (1 GHz) |
| Display Size | 8.4" Touchscreen |
| Display Resolution | 800 x 600 Resolution |
| Connectivity | USB, Ethernet |
| Battery Life | ~3 Hours |
| Dimensions | 315 x 211 x 77 mm, |
| Weight | 3.7–4.4 kg |
| MS2720T Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote Today for Pricing Information |
Associated part numbers for MS2720T:
Anritsu MS2720T Anritsu Handheld Spectrum Master- FAQ:
Question: How many channels can the MS2720T scan at once?
Answer: The Spectrum Analyzer can scan as many as 20 channels simultaneously.
Question: How long is the battery life of the MS2720T?
Answer: The battery life is approximately three hours.
Question: What are the dimensions of the MS2720T?
Answer: The physical dimensions of the analyzer measures 12.4 x 8.3 x 3 inches.
Question: Does the MS2720T keyboard have a backlight capability?
Answer: Yes, the display will appear red for night vision and white for the other display modes.
