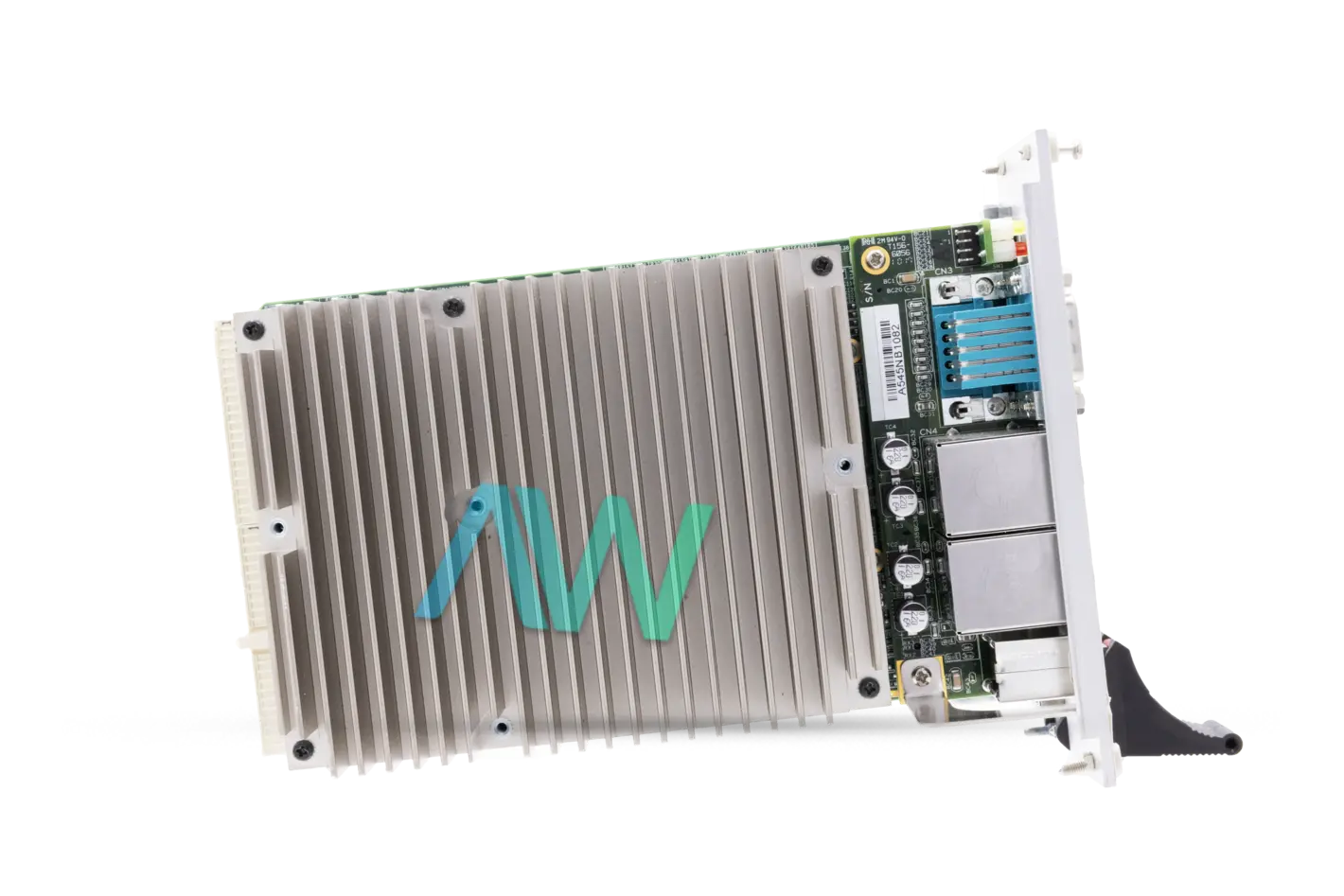

ADLINK PXI-3950 PXI System Controller
The PXI-3950 (Part number: 50-17030-1000) by ADLINK is an embedded PXI controller made for hybrid systems. The PXI-3950 utilizes an Intel® CoreTM2 Duo T7500 2.2 GHz CPU for optimal performance in a variety of test and measurement applications. It also supports a front side bus of 800 MHz. Ideal for complex testing activities, the PXI-3950 uses a GME965 chipset, and has 4 GB of built-in SODIMM memory modules. The PXI-3950 PXI system controller is able to attach and manage a number of interfaces, including GPIB, USB, and COM connections. Additionally, the PXI-3950 features two Gigabit Ethernet connections which allows users to connect via LAN to one ethernet connection and to manage subsequent-generation LXI instruments with the other.
One of the core features of the PXI-3950 is it's video capabilities. The PXI controller uses a Mobile Intel® GMA X3100 graphic media accelerator, allowing for the CRT output to support a resolution up to 2048x1536. On the faceplate, there is an analog CRT route to DVI-I connector. The DVI output of the PXI-3950 supports a resolution up to 1600x1200, and has a singular TMDS channel via a SDVO to DVI controller.

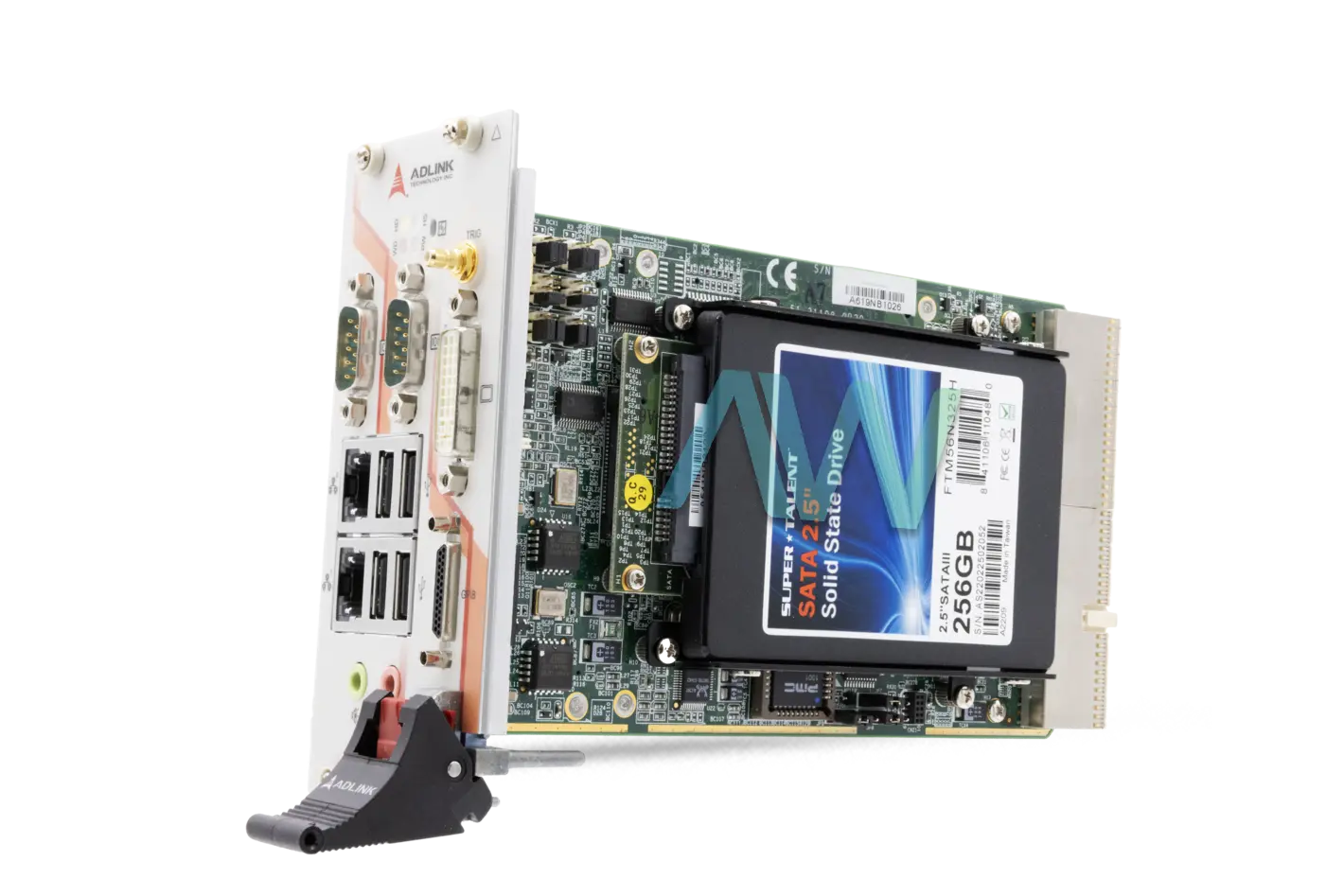

The PXI-3950 by ADLINK features integrated I/O connectivity, with a 2.5 inch, 120 GB, built-in SATA hard drive. For ethernet connections, the controller has dual gigabit ethernet controllers. The faceplate of the PXI-3950 includes four USB 2.0 ports, two RJ-46 connectors, a 25-pin Micro-D connector, two COM ports (16C550 UART compatible), and two high definition audio jacks.
ADLINK products are known for their excellent performance, dependability, and compatibility in a range of industries including automation, transportation, and medicine. ADLINK parts and modules are suitable for use with high-performance automation and embedded computer applications. The PXI-3950 weighs 1.98 pounds and has dimensions of 2.35 inches by 5 inches by 8.3 inches.
The PXI-3950 controller has End Of Life Status from ADLINK, but it is still available to be purchased or repaired at Apex Waves.
ADLINK PXI-3950 PXI System Controller
Question: Are there any accessories compatible with the PXI-3950?
Answer: Yes, the ACL-IEEE488-MD1-A is a 1 meter, 25-Pin Micro-D to GPIB cable that is compatible with the PXI-3950.
Question: What do the LED indicators of the PXI-3950 signify?
Answer: The PXI-3950 has a LED indicator for the statuses of the Power, HDD, Watchdog, and HS. The Power LED is green, the HDD LED is yellow, the Watchdog LED is red, and the HS LED is blue.
Question: What are the slot requirements of the PXI-3950?
Answer: The slot requirements of the PXI-3950 includes one system slot as well as two controller expansion slots.
