M9037A

4.5/5 | 13 ratings

Modular Systems > Keysight Agilent HP > PXIe Controllers

Part Number M9037A
Manufacturer/Brand Keysight Agilent HP
Description: M9037A, 2.4 GHz CPU, PXIe High Performance Embedded Controller
Request for Availablility
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

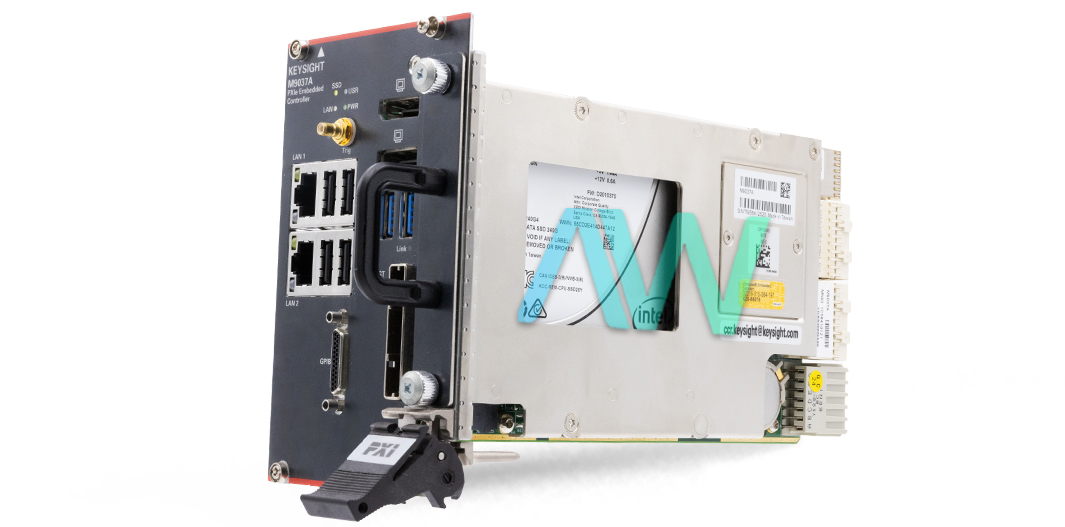

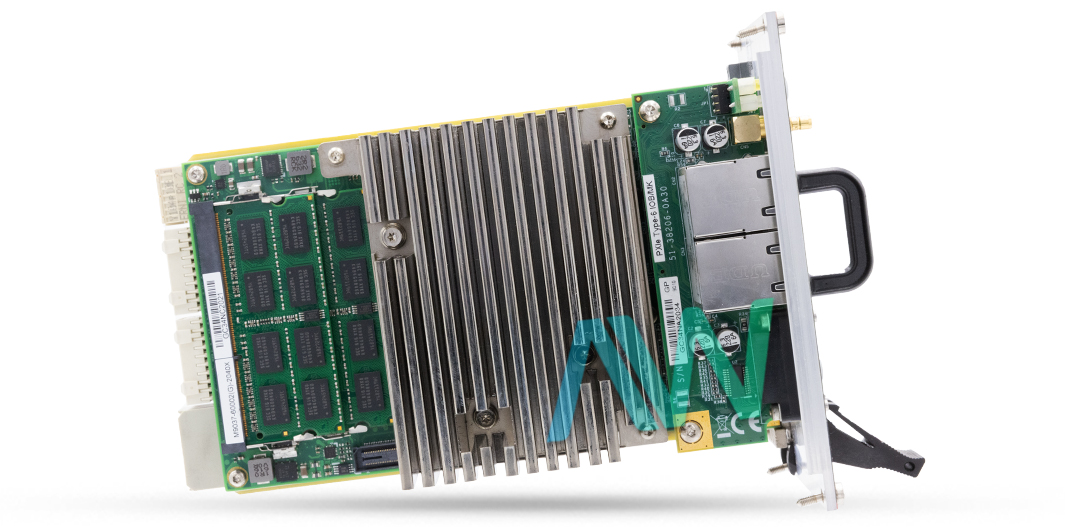

Keysight M9037A PXIe Embedded Controller

The M9037A is a PXIe Embedded Controller. The M9037A is prepared by Agilent/HP/ Keysight Technologies. The M9037A is a high-performance Embedded Controller with an Intel i7-4700EQ 2.4 GHz processor. The M9037A is a 4-slot PXIe Controller Module. The M9037A can be installed with Windows 7 (32/64-bit) and Windows 10 (64-bit) operating systems. The M9037A PXIe Embedded Controller comes with a removable 240 GB front solid-state drive. The M9037A has a Gen 3, x8 PCIe front panel connector.

The Keysight M9037A PXIe Embedded Controller has 16 GB of RAM. The M9037A is available with a maximum of x24 series 2 or 4 links that offers 16 GB/s of maximum data bandwidth. The Keysight M9037A is assembled with a front connection panel that contains two USB 3.0 ports, four USB 2.0 ports, two DisplayPorts, two LAN ports, a single GPIB, and one SMB trigger. The M9037A PXIe Embedded Controller supports faster boot time, as well as mechanical reliability by SSD. The M9037A is built with a mobile Intel QM57Express Chipset.

The M9037A PXIe Embedded Controller offers connections to multi-chassis from the controller, while using high-value instrument ports. The Keysight M9037A also provides direct connection support to the RAID storage from the controller. The M9037A has an operating temperature of 0-55 °C. The M9037A is fabricated with a net weight of 2.2 lbs. The Keysight M9037A PXIe Embedded Controller is featured with a Micro-D 25-pin GPIB connector. The Keysight M9037A is available with 6 MB of cache memory.

ModelM9037A
ManufacturerKeysight Agilent HP
SeriesPXIe Controllers
TypePXIe High Performance Embedded Controller
ProcessorIntel i7-4700EQ 2.4 GHz
CPU Threads8
Solid-State Drive240 GB
RAM Memory16 GB
Chassis Slot CompatibilityPXIe system module slot (with 3 controller expansion slots)
Size4-slot
Weight2.2 lbs.
Warranty2-3 Year Warranty
M9037A ManualUser Manual and Maintenance Manual Available for Download
PricingContact a Sales Representative for a quote.
