National Instruments SCB-100A Shielded I/O Connector Block

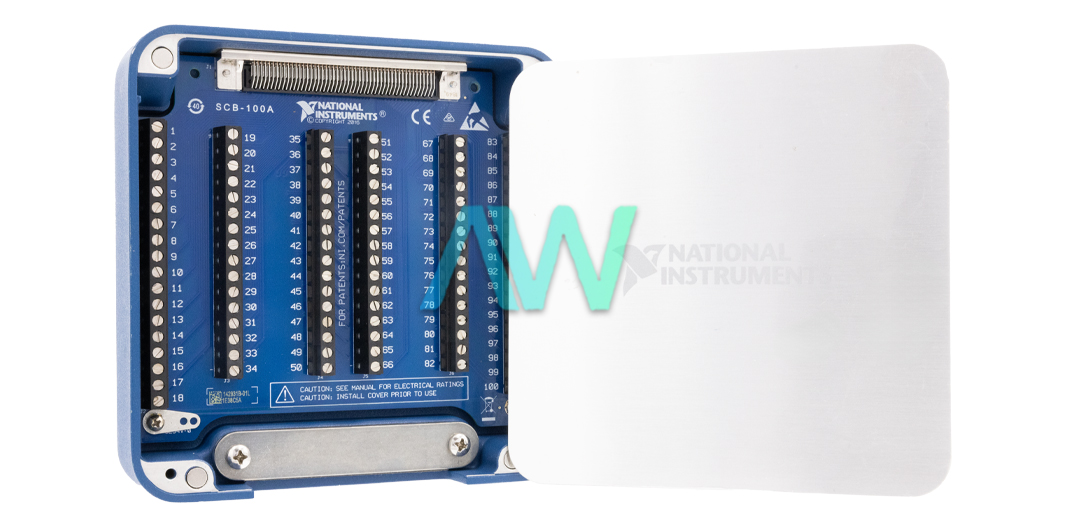

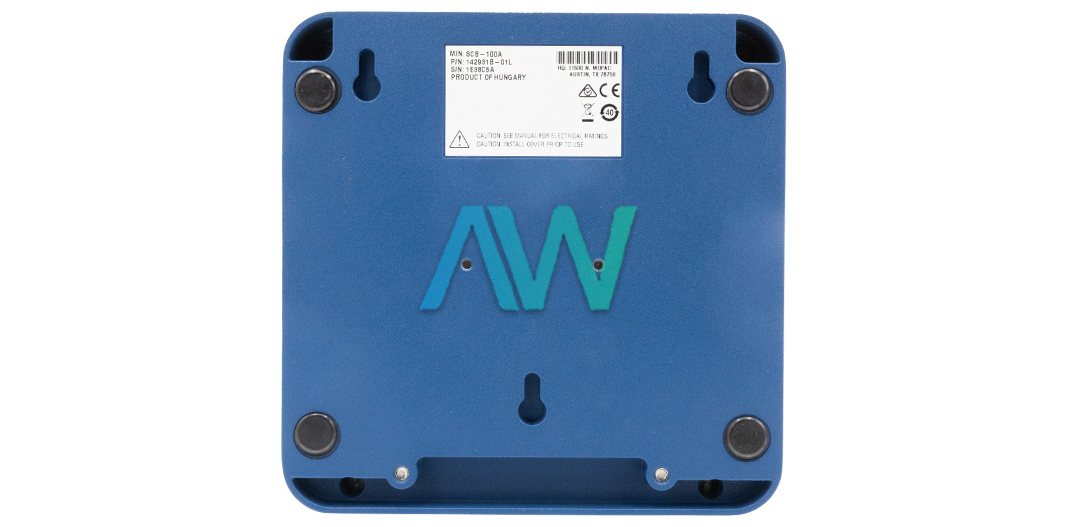

The SCB-100A is a Shielded I/O Connector Block. National Instruments produced the NI SCB-100A Connector Block. The SCB-100A block can also be identified and purchased with the part number 785024-01. The NI SCB-100A is designed with a magnetic removable lid. The SCB-100A is manufactured with 100 screw terminals for simple and reliable I/O connections. The NI SCB-100A Connector Block is designed for use with 100-pin digital I/O modules and devices.
The National Instruments SCB-100A Shielded I/O Connector Block is fabricated for providing signal connections to multiple digital input/output modules by National Instruments, such as the PCI-DIO-96, NI-6513, NI-6514, NI-6511, NI-6512, NI-6508, NI-6509, NI-6515, NI-6528, and NI-6529. This Connector Block can additionally be utilized with Counter/Timer devices such as the NI-6624. The NI SCB-100A is compatible with the SH100-100-F Cable (Part Number: 185095-0x). The SCB-100A can be used in several configurations, including on a desktop or mounted to a DIN rail or a panel. The compatible DIN rail mounting kit is NI-9913 (Part number: 781740-01). The threaded holes on the SCB-100A should not be utilized more than 5 times to prevent a compromised connection between the DIN rail clip and accessory.
The NI SCB-100A Shielded I/O Connector Block has a maximum current of 0.5 A at screw terminals 1-48 and 51-98. However, the maximum current at screw terminals 49-50 and 99-100 is 1 A. The SCB-100A Connector Block can function with a maximum voltage of 30 V RMS, 42 V peak, 60 V DC. The NI SCB-100A Shielded I/O Connector Block is manufactured with one 100-pin male 0.050 series shielded D-type connector.
The SCB-100A is run using the NIDAQmx driver software which is compatible with software packages or application development environments (ADEs) such as LabVIEW or LabWindows/CVI. The device can be configured using the Measurement & Automation Explorer (MAX) tool.
The NI device weighs 7.6 oz, and measures 5.8 x 5.8 x 1.2 in. in physical dimensions. The connector block has recommended operating and storage temperature ranges of 0 °C to 70 °C and -18 °C to 82 °C respectively, non-condensing operating and storage humidity ranges of 5% to 90% RH.
| Model | SCB-100A |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 785024-01 |
| Type | Shielded I/O Connector Block |
| Screw Terminals | 100 |
| I/O Connector | One 100-pin male 0.050 series shielded D-type connector |
| Maximum Voltage | 30 V RMS, 42 V peak, 60 V DC |
| Dimensions | 5.8 in. x 5.8 in. × 1.2 in. |
| Weight | 1 lb 7.6 oz. |
| Warranty | Three Year Warranty |
| SCB-100A Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the SCB-100A:
142931A-01L, 142931B-01L, 142931C-01L, 142931D-01L, 200943A-01, 785024-01
National Instruments SCB-100A Frequently Asked Questions
Question: What type of gauge is used by the screw terminal wiring of the SCB-100A?
Answer: The SCB-100A has a screw terminal wiring strip that is 0.24 inches long, and uses a gauge that is 30 AWG to 16 AWG (solid or stranded wire)
Question: How many wires does the SCB-100A use per screw terminal?
Answer: The SCB-100A uses one wire per screw terminal.
Question: What is the operating temperature of the SCB-100A?
Answer: The operating temperature is 0 °C to 70 °C ( 32° F to 158° F)
Question:
SCB-100A PDF Manuals
NI 66XX_PINOUT_LABEL_FOR_SCB-100A.PDF
SCB-100A_GETTING_STARTED_GUIDE.PDF
SCB-100A_LETTER_OF_VOLATILITY.PDF
