784549-01 Request for Availability

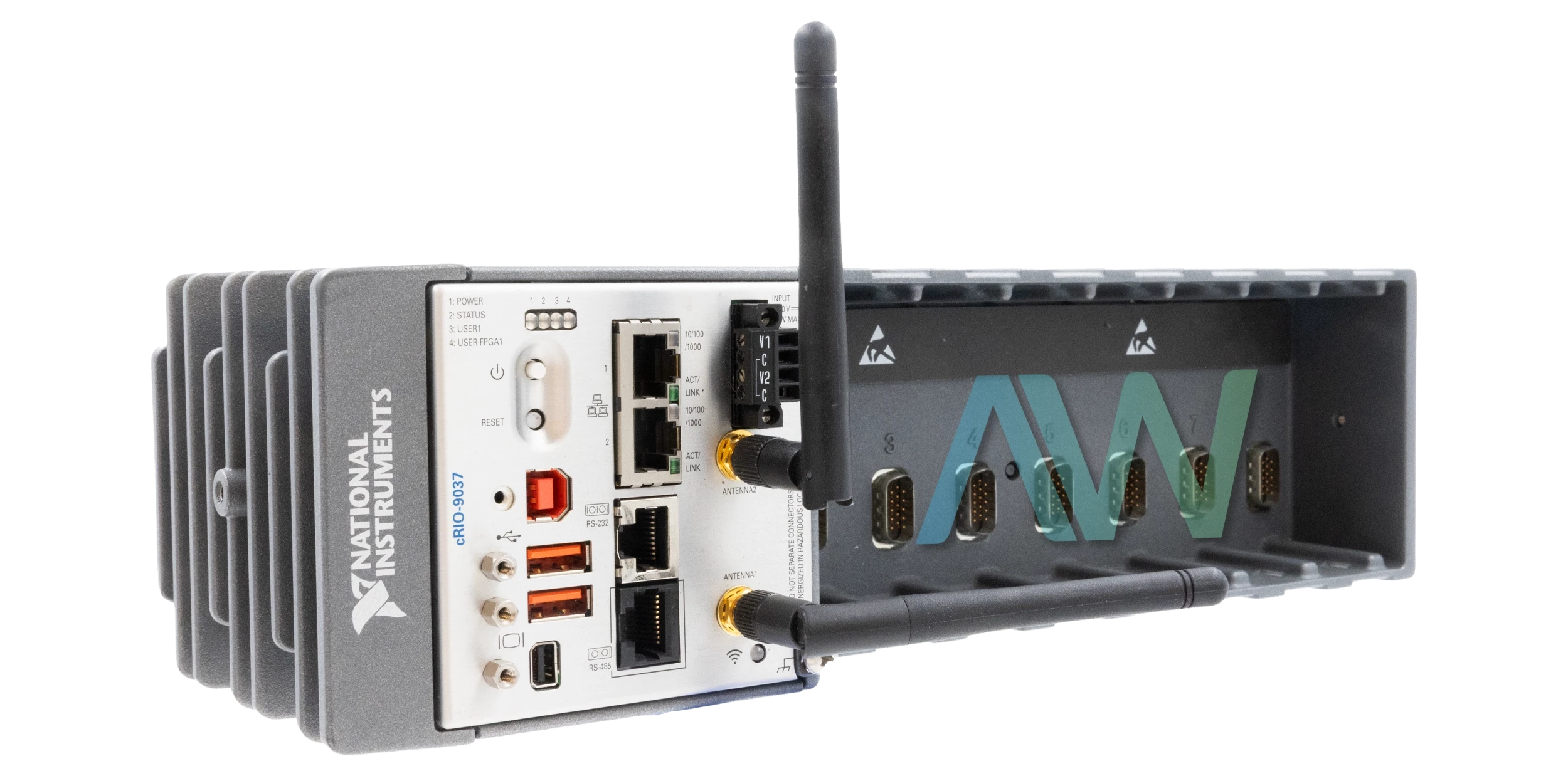

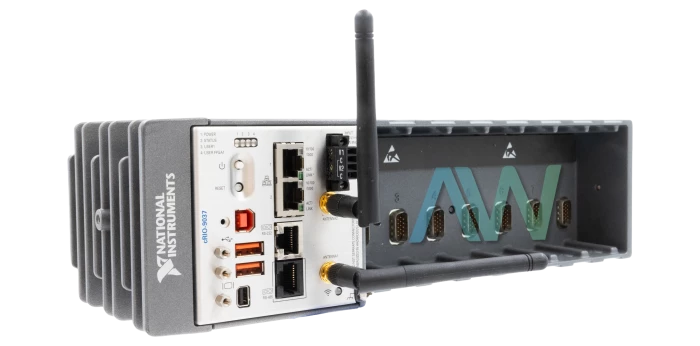

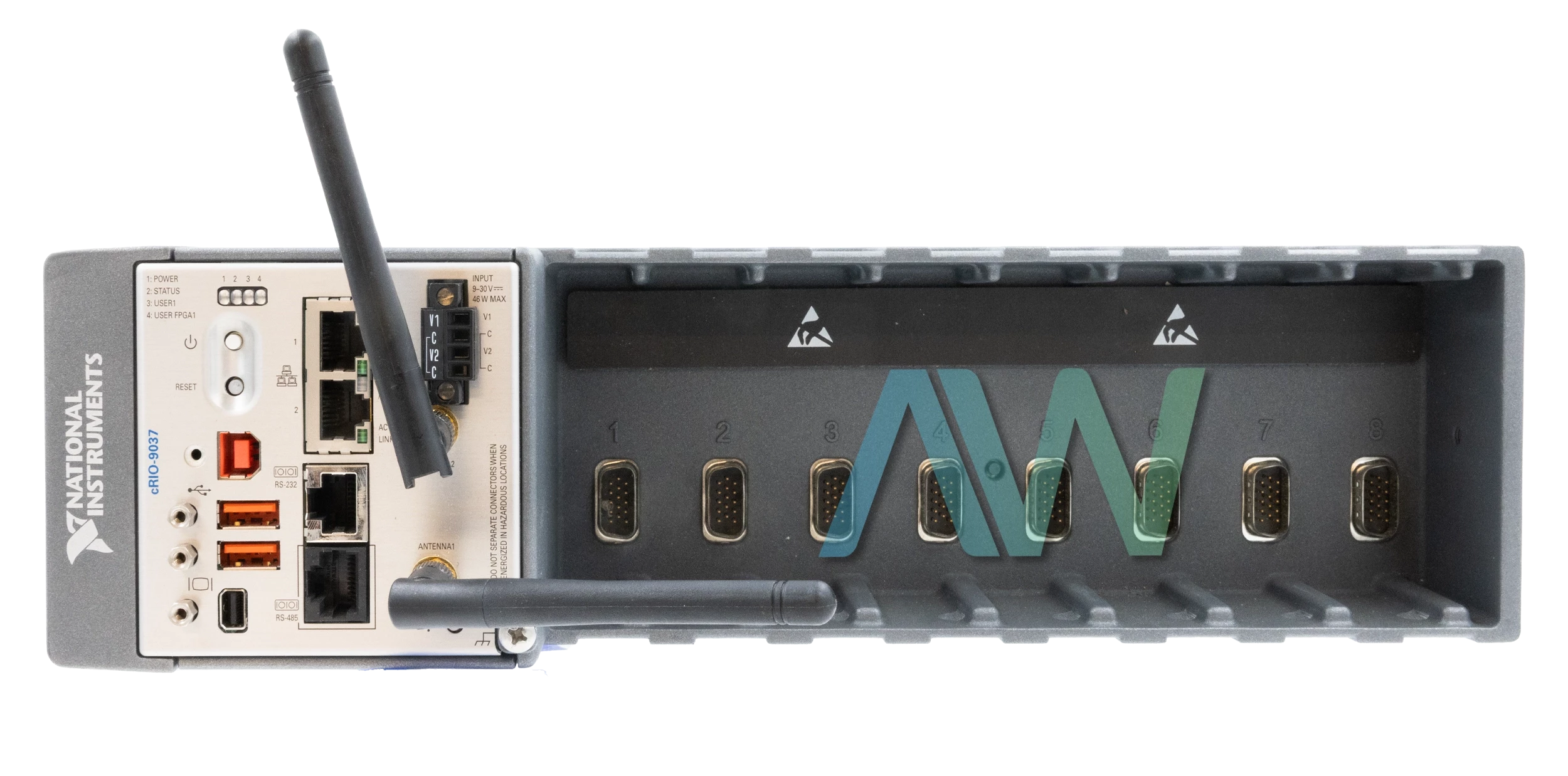

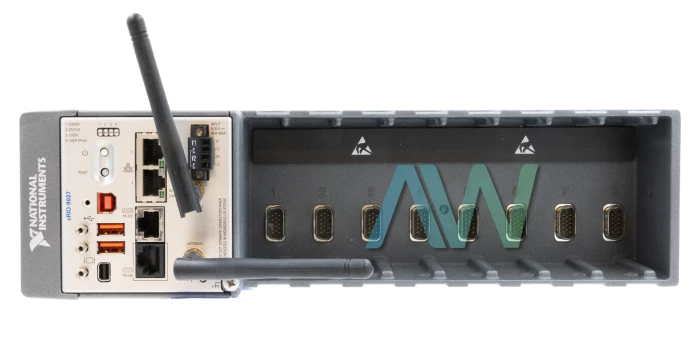

National Instruments 784549-01 CompactRIO Controller

Part Number 784549-01 is the identifying part number for the National Instruments cRIO-9037 CompactRIO Controller. The device ships with a Intel Atom E3825 (1.33 GHz dual-core processor) CPU and a shared on-die L2 cache of 1 MB. Likewise, it features 8 GB of nonvolatile memory and 2 GB of DDR3L volatile memory that has a maximum theoretical data rate of 8.533 GB/s.

The 784549-01 features 2 network ports and the following network interfaces: 10Base-T, 100Base-TX, and 1000Base-T Ethernet. Note that these are IEEE 802.3 compatible and communication rates are autonegotiated between 10 Mbit/s, 100 Mbit/s, and 1000 Mbit/s. The maximum cabling distance is 100 m per segment. On the other hand, the device also features a wireless connectivity through IEEE 802.11 a/b/g/n and can function either as a client or an access point.

The 784549-01 also provides a RS-232 serial port, a RS-485/422 serial port, two USB 2.0 host ports, and a miniDisplay port capable of resolutions up to  2560 x 1600 at 60 Hz. Furthermore, it has a Xilinx Kintex-7 7K160T FPGA  with 202800 and 101400 6-input LUTs. Moreover, it has 600 DSP slices (18 x 25 multipliers). The available block RAM in the FPGA is 11700 kbits and there aer 16 DMA channels and 32 logical interrupts.

The 784549-01 supports input voltages from 9 V to 30 V and has a maximum power consumption of 46 W. The recommended power supply for this device is rated as 100 W, 24 VDC. The device measures 12.94 in. × 3.47 in. × 4.67 in. in physical dimensions and weighs 2260 g. Screw terminal wires of sizes 20 AWG to 14 AWG are supported by the module.

The 784549-01 is recommended for operation in between -20 °C to 55 °C at a relative humidity of 10% to 90%. On the other hand, it can be stored in between -40 °C to 85 °C at a relative humidity of 5% to 95%. Note that it is meant for indoor use only and within a maximum altitude of 5000 m.
