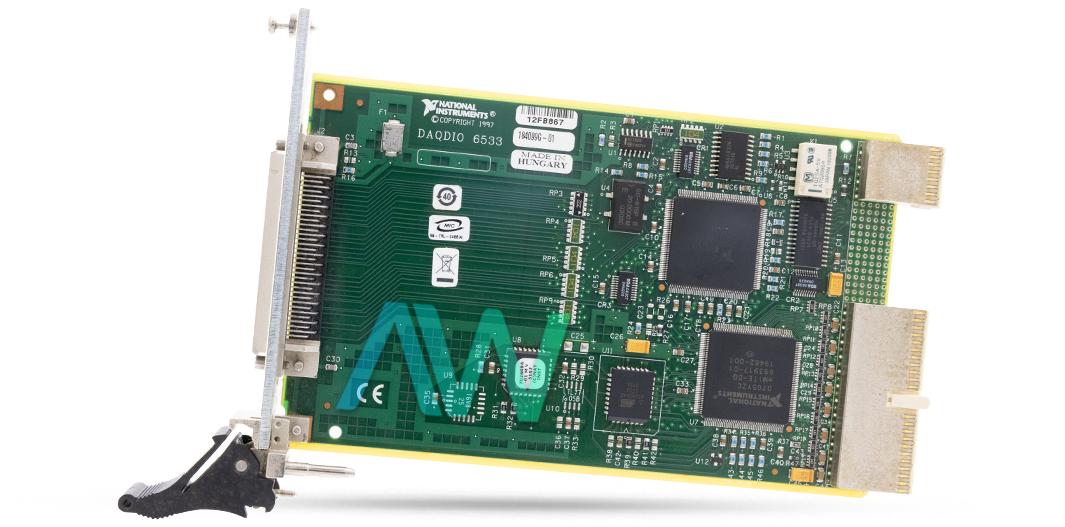

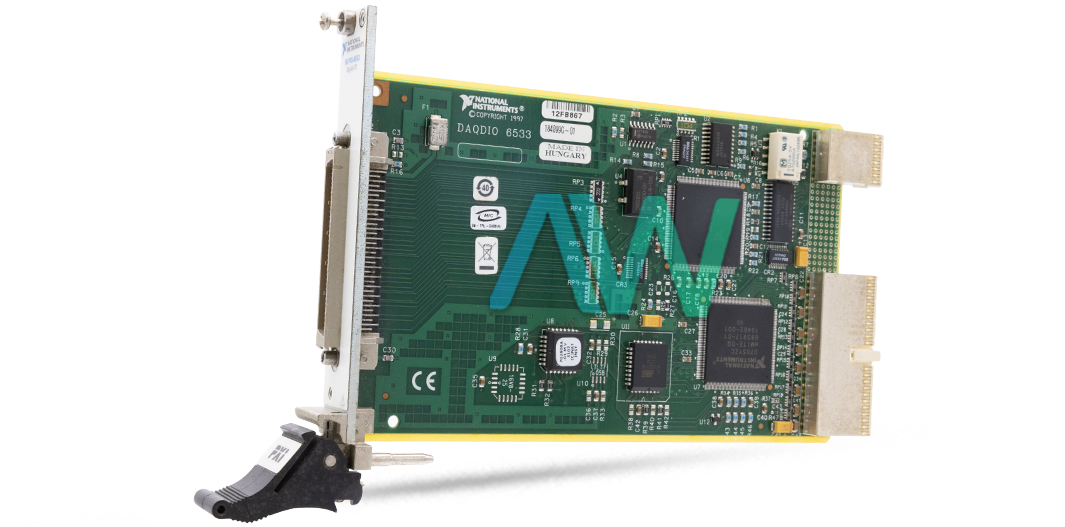

National Instruments 777429-01 PXI Digital I/O Module.

The part number 777429-01 from National Instruments is the identifying part number for the PXI-6533 PXI Digital I/O Module. This PXI Digital I/O module features 32 input and output channels. This module requires +5 volts DC to operate with a current consumption of 1.3 A. The module supports various input voltage ranges including the input low voltage of 0.8 V maximum and input high voltage ranging from 2 to 5 V. It also has output voltages ranging 0.4 V maximum and 2.4 V minimum.

The 777429-01 PXI Digital I/O Module provide Handshaking data transfer and Pattern I/O functions that are both adaptable and flexible. Pattern I/O has modes that support change detection and internal or external timing, and it can be set up as an input or output. Additionally, Handshaking I/O allows for input or output configurations. Its six modes are tailored to accommodate different data transfer methods and needs. Because of these characteristics, the 777429-01 can be used for a variety of tasks, such as synchronized communication with other digital devices and high-speed data gathering.

This I/O module has a compact and lightweight design with dimensions of  10 cm by 16 cm (3.9 by 6.3 in.). The module should only be operated in an environment with an ambient temperature between 0 degrees Celsius and 55 degrees Celsius and can withstand storage temperatures between -20 degrees Celsius to 70 Degrees Celsius with a relative humidity of 10% to 90% noncondensing for long-term use and reliability. This module also supports start and stop triggers fully compatible with 5 V TTL/CMOS featuring rise or falling edge, digital pattern. Its pulse width is 10 ns minimum with pattern detecting capability of detect pattern match.

This module has been tested and designed to meet safety standards in accordance with the IEC 61010-1, EN 61010-1, UL 61010-1, and CSA 61010-1 for safety, and EN 61326, IEC 61326, EN 55011, CISPR 11, AS/NZS CISPR 11, FCC 47 CFR Part 15B, and ICES-001 for EMC. This module does not feature and Ingress protection rating hence it should be installed in a dust and moisture-free environment.
