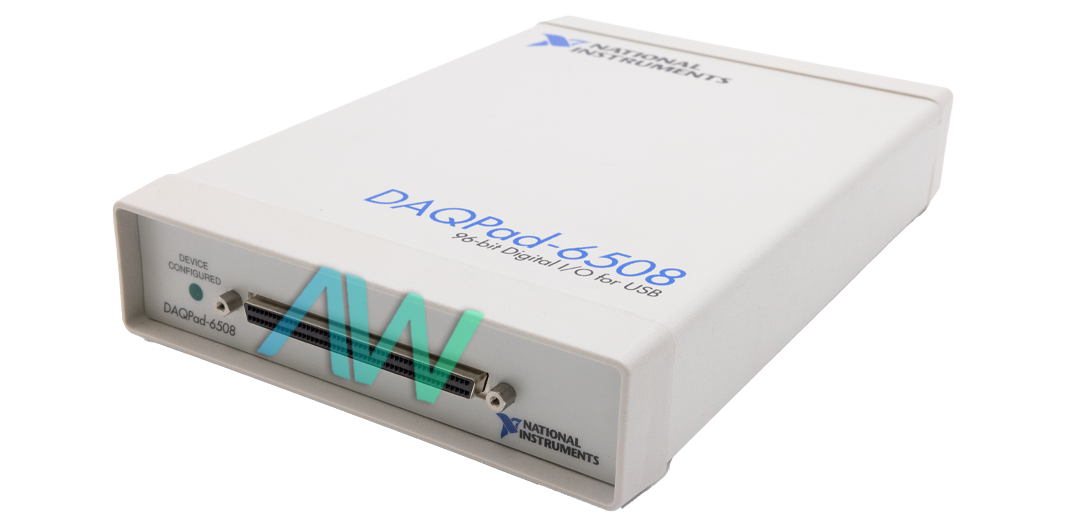

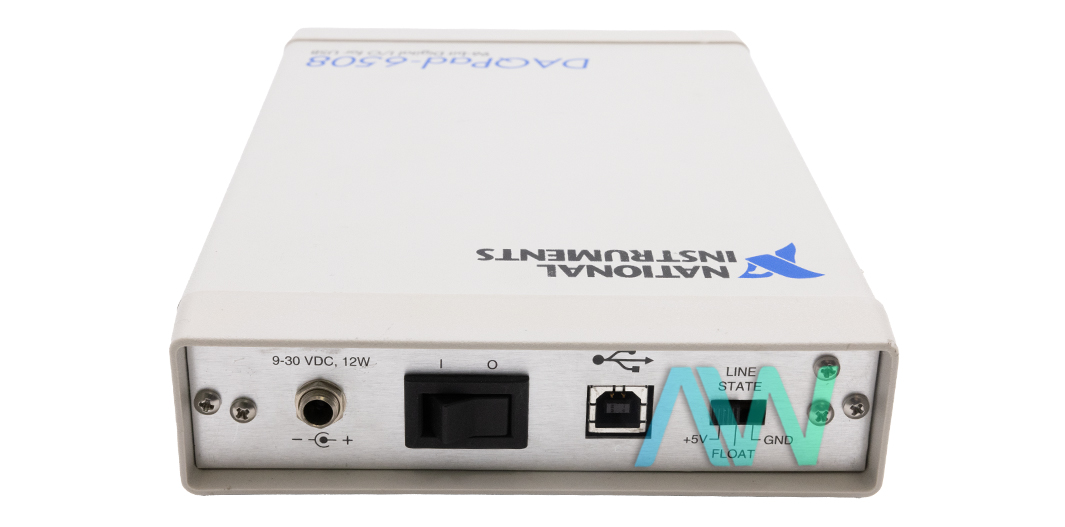

National Instruments DAQPad-6508 Digital I/O Device

The DAQPAD-6508 is a Digital I/O Device for computers with USB ports. This device is manufactured by National Instruments and is available with part number 777661-01.  The NI DAQPAD-6508 is controlled by using four 24-bit PPIs (Programmable Peripheral Interfaces). These PPIs are further divided into three 8-bit sub ports. These sub ports have transfer rates of up to 60 S/s. This 96-bit digital I/O for USB can be operated in uni-directional as well as bi-directional mode when interacting with the PPIs. This Digital I/O Device finds use in a broad range of applications. The DAQPad-6508 can interface with different devices depending upon the application requirements. Some compatible devices are plotters, I/O modules, terminal panels, and printers.

This Digital I/O Device has 96 bi-directional 5 V static I/O lines with 8-bit ports. The NI DAQPAD-6508 supports both TTL and CMOS. The output signal current is 0.5A maximum at +5 VDC at pin-49 and pin-99. It has a current drive of 2.5 mA per channel/240 mA total. The DAQPAD-6508 has mass termination. The DAQPad-6508 offers a two-wired handshake capability for easy and perfect connectivity without creating any complications. This device requires one port for the handshaking function. It has an external power requirement of up to 12 W at 9–30 VDC, and a USB current requirement of 220 mA typical and 500 mA maximum at 4.40–5.25 VDC.

For transferring data, the NI DAQPAD-6508 uses a 100-pin female, 0.050 series D-type connector. The power-up state of the DAQPAD-6508 can be configured manually. The user has the flexibility to select a high or low wake-up state. To achieve this function, a 100 kΩ resistor is connected with each terminal. To use the DAQPAD-6508 with a PC, NI-DAQ software can be utilized. NI-DAQ software is ideal to perform digital I/O and write custom programs. NI-DAQ also has several built-in example programs for different ADEs such as LabVIEW or LabWindows/CVI.

The DAQPAD-6508 measures 9.0 x 5.7 in. in physical dimensions. It has recommended operating and storage temperature ranges of 0° to 70° C and –55° to 150° C respectively, a non-condensing relative humidity range of 5% to 90%.

ModelDAQPad-6508
ManufacturerNational Instruments
Part Number777661-01
TypeDigital I/O Device
Digital I/O96
BusUSB
OS SupportWindows
TimingSoftware
Current Drive2.5 mA per channel/240 mA total
Maximum Input Range0..5 V
Maximum Output Range0..5 V
DriverNI-DAQ
Transfer RatesUp to 60 S/s
Dimensions9.0 by 5.7 in.
I/O Connector100-pin female 0.050 D-type
WarrantyThree Year Warranty
DAQPad-6508 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.
