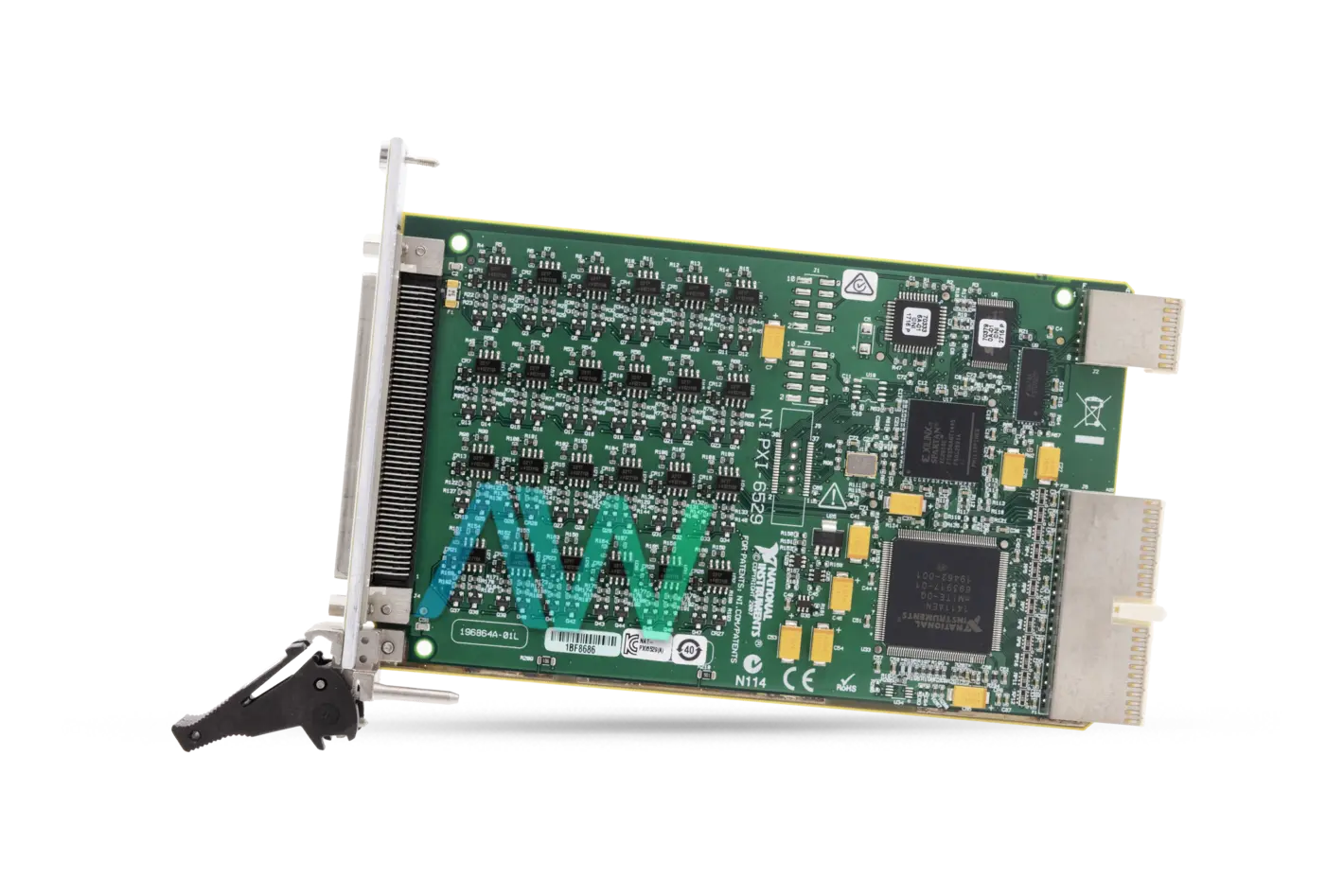

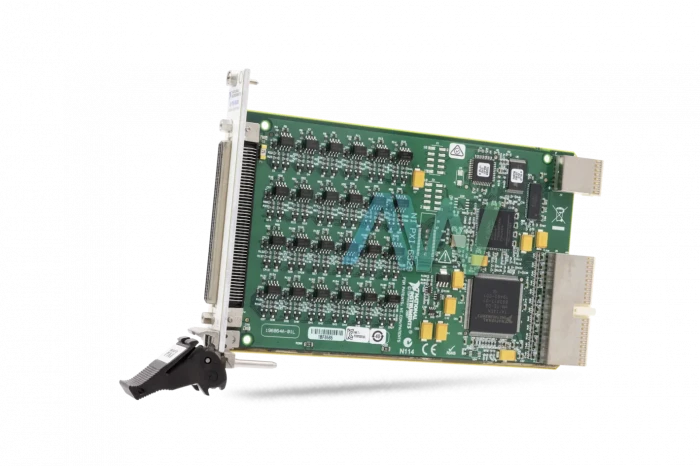

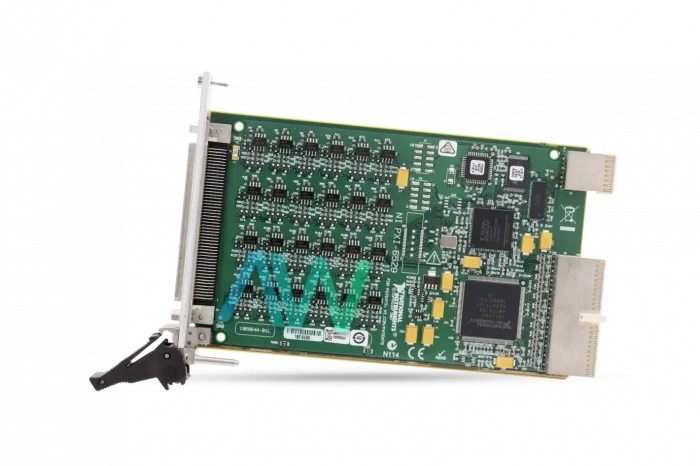

National Instruments PXI-6529 PXI Digital I/O Module

The National Instruments PXI-6529 (Part Number: 779949-01) is a Channel-to-Channel, Isolated, 48-Channel PXI Digital I/O Module with Sink/Source Inputs. This module is a parallel industrial input interface, which is considered an ideal solution for a broad range of applications, including: industrial factory automation, automotive design, machine control, biomedical applications, etc.

This module features change detection, digital filtering, and Real-Tie System Integration capabilities. The NI PXI-6529 offers a PXI start trigger line and eight lines for output. The PXI start trigger can be utilized for input only, while the input Port 0 and Output Port 3 can be configured to route signals and receive signals from the RTSI port respectively. With its change detection function enabled, the user can monitor changes on all or selected input lines. In addition, the user can program this module to send a 200 ns pulse to all or any RTSI line on the detection of a change. This module comes equipped with a 100-pin high-density SCSI connector that provides access to 48 digital inputs on the device.

 The digital logic of the NI PXI-6529 registers a logic low for the channel when no voltage is applied to the load and no current flows through the load or the module`s input. The device registers a logic high for the channel when it reads a close position of the switch and when it detects a flow of current through both the device input and the load. This Digital I/O Module requires 250 mA current at +5 VDC (±5%) and 400 mA at +3.3 VDC (±5%).

ModelPXI-6529 (779949-01)
ManufacturerNational Instruments
TypePXI Digital I/O Module
Digital Input Channels48
Digital Input Voltage Range-60 V to 60 V
Digital I/O Logic Levels60V
Dimensions6.3 x 3.9 in.
Weight4.6 oz.
WarrantyOne Year Warranty
PXI-6529 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-6529 Frequently Asked Questions



Question: What type of I/O connector is on the NI PXI-6529?



Answer: There is a 100-pin keyed female SCSI I/O connector on the NI PXI-6529.



Question: What is the minimum pulse width of the PXI-6529?



Answer: The minimum pulse width is 150 ms on the PXI-6529.



Question: What is the input current for the PXI-6529?



Answer: The PXI-6529 has an input current of 3.0 mA/channel maximum.



Question: Is the NI PXI-6529 software configurable?



Answer: Yes, the NI PXI-6529 is software configurable and does not require jumpers.

PXI-6529 PDF Manuals & Diagrams

  PXI-6529 PDF Manuals

  PXI-6529 Diagrams


PXI-6529 Technical Specifications:

Manufacturer:National Instruments
Model:PXI-6529
Part Number:779949-01
Type:PXI Digital I/O Module
Repair Evaluation:$150
