USB-6229
Modular Systems > National Instruments > M Series
Description: | USB-6229, 32 AI, 4 AO, 48 DIO, Legacy USB DAQ Device |
Need an Official Quote?
Or speak to a sales representative for pricing & lead time:

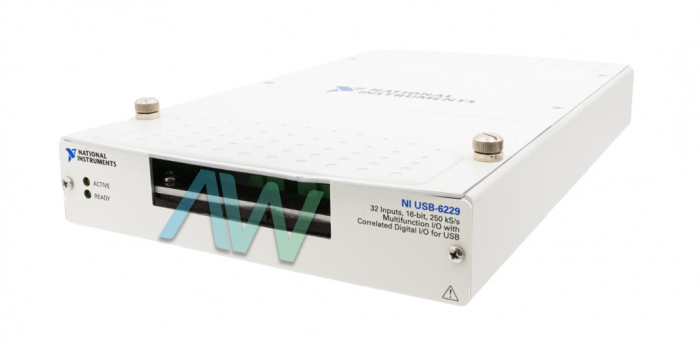

National Instruments USB-6229 Multifunction DAQ Device
The NI USB-6229 (Part Numbers: 779810-01, 779810-02, 779810-03, 779810-04, 779810-06, 779810-07) is an M Series Multifunction DAQ Device. This device has 32 analog input channels. The USB-6229 offers 16 bits analog-to-digital converter (ADC) resolution. The sample rate of this product is 250 kS/s maximum for a single channel and for multiple channels. There are two options for the I/O connectors for this Multifunction DAQ Device: 128 screw terminals or 30 BNCs/60 screw terminals.
The values of the input ranges for the USB-6229 Multifunction DAQ Device are ±10 V, ±5 V, ±1 V, and ±0.2 V. It offers a working voltage of ±11 Volts. This is the maximum voltage for inputs of this device. The size of FIFO for this instrument is 4,095 samples. The NI USB-6229 is protected against overvoltage malfunctions. This protection is available for all the analog input channels. This protection is also available for all the device’s sense channels. The value of the input current is ±20 mA maximum during the overvoltage condition.
There are also four analog output channels on the USB 6229 National Instruments. All channels provide DAC resolution. The value of this resolution is 16 bits. The update rate is 833 kS/s for a single output channel. The update rate for two channels is 740 kS/s per channel. The update rate for three channels is 666 kS/s per channel. The update rate for all four channels is 625 kS/s per channel. This device also provides an effective output resistance of 0.2 Ω.
Model | USB-6229 |
---|---|
Manufacturer | National Instruments |
Part Numbers | 779810-01, 779810-02, 779810-03, 779810-04, 779810-06, 779810-07 |
Type | Multifunction DAQ Device |
Analog Input Channels | 32 |
Analog Output Channels | 4 |
Resolution | 16 bits |
Dimensions | 10.5 in. × 6.73 in. × 1.75 in. |
Weight | 2 lb 11 oz. |
Warranty | One Year Warranty |
USB-6229 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
National Instruments USB-6229 Frequently Asked Questions
Question: What is the difference between the multiple part numbers for the USB-6229?
Answer: The USB-6229 has several power input options for different countries: U.S. 120 VAC (Part Number: 779810-01), Swiss 220 VAC (Part Number: 779810-02), Australian 240 VAC (Part Number: 779810-03), Universal Euro 240 VAC (Part Number: 779810-04), United Kingdom 240 VAC (Part Number: 779810-06), and Japanese 100 VAC (Part Number: 779810-07).
Question: What is the base clock accuracy of the NI USB-6229?
Answer: The base clock accuracy of the NI USB-6229 is 50 ppm.
Question: What is the name of the NI USB 6229 driver?
Answer: The NI USB 6229 driver is NI-DAQmx.
Question: What is the resolution of the counters/timers on the USB 6229 National Instruments?
Answer: The USB 6229 National Instruments has two 32-bit counters/timers.
USB-6229 PDF Manuals
DAQ GETTING STARTED GUIDE FOR EXTERNALLY POWERED USB.PDF
DAQ GETTING STARTED GUIDE FOR PCI PCI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
EXTERNALLY POWERED USB M SERIES PANEL MOUNTING KIT INSTALLATION GUIDE.PDF
NI 6229 DEVICE SPECIFICATIONS.PDF
NI USB 622X 625X 628X LETTER OF VOLATILITY.PDF
NI USB 622X 625X 628X OEM USER GUIDE.PDF
NOTE TO USERS INSTALLING A FERRITE FOR THE NI USB 6221 6229 BNC.PDF
