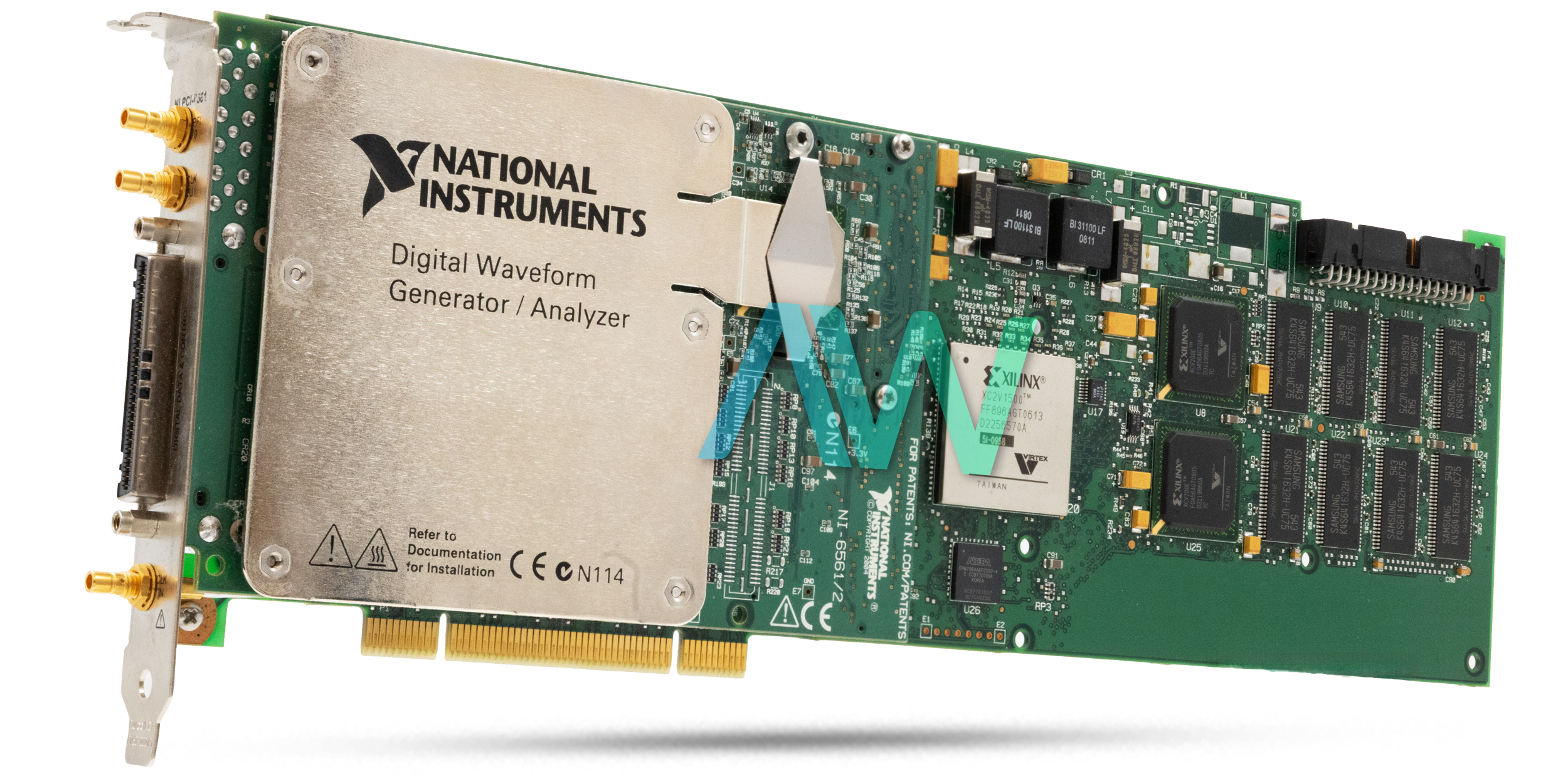

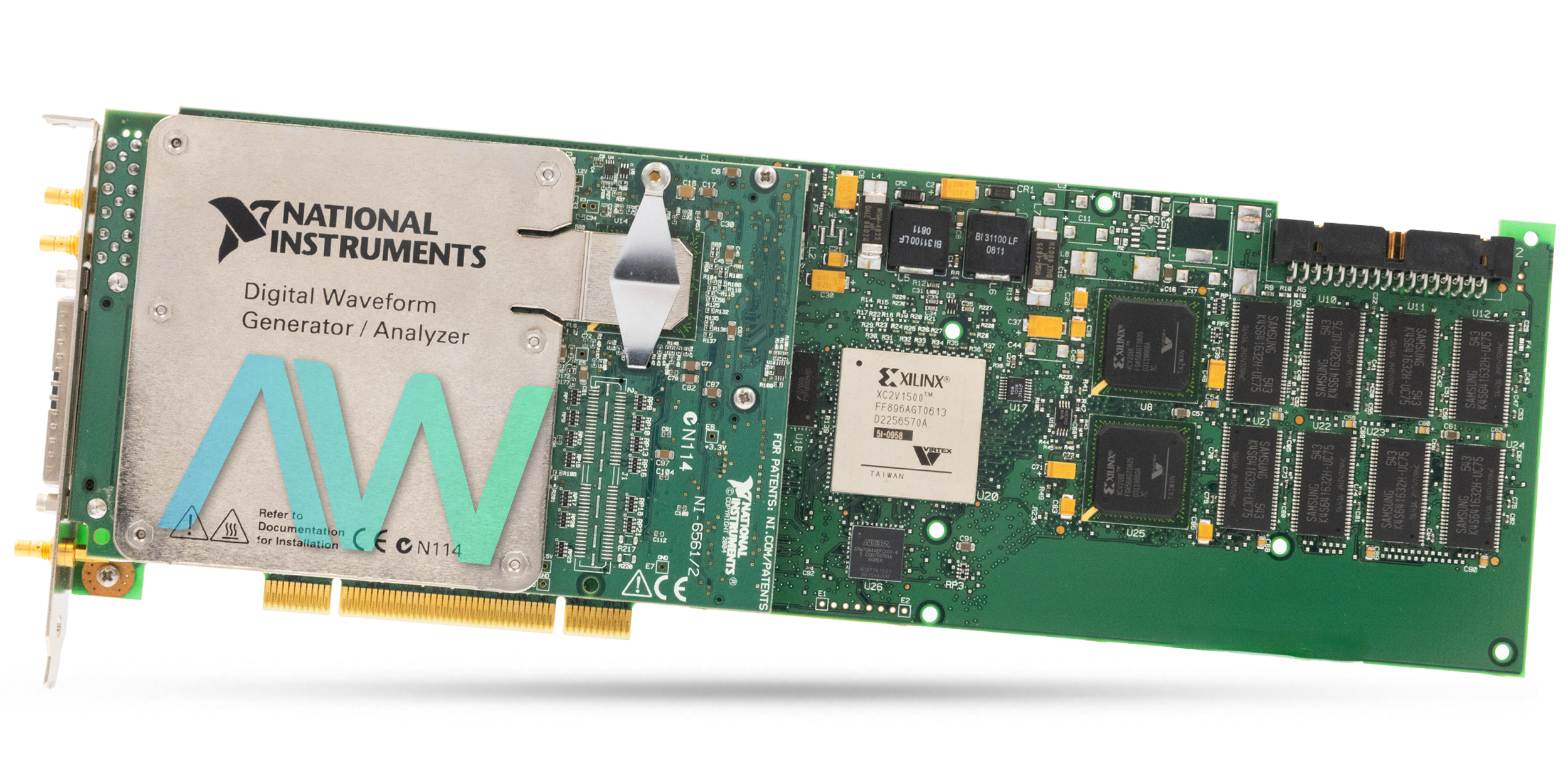

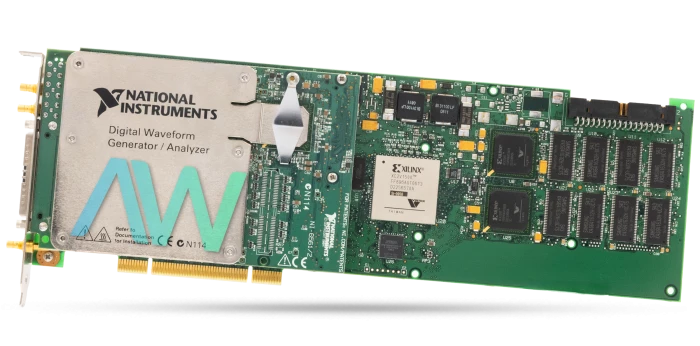

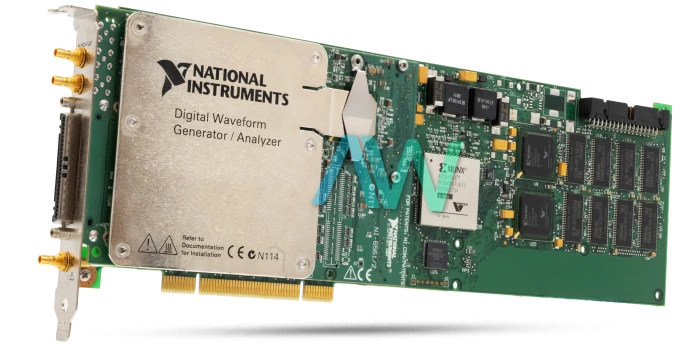

National Instruments PCI-6562 Digital Waveform Generator
The PCI-6562 (Part Numbers: 778992-01, 778992-02, and 778992-03) is an efficient Digital Waveform Generator from National Instruments. This model can interface with low‑voltage differential signaling (LVDS) digital electronics. It offers LVDS signaling for fast clock rates and low power consumption. The National Instruments PCI-6562 Digital Waveform Generator offers a data rate of 400 Mb/s for double-data-rate (DDR) mode. This model offers both single and double data rate modes. This model can be used for many applications, including aerospace, defense, and security systems. The PCI-6562 also allows users to complete testing for satellite and communication systems.
The NI PCI-6562 has the clock rate of 200 MHZ. This model offers deep onboard memory with options for 2, 16, or 128 Mb/channel memory. This model comes with the National Instruments Digital Waveform Editor feature, which helps the user create waveforms using built-in fill patterns. It also presents waveform editing options, as well as synchronization and Memory Core (SMC) technology. This technology allows the user to share memory for waveforms and user-defined instructions and create mix-signal test systems with digitizers. It also ensures interfacing of high pin digital ICs and electronic devices. The device is equipped with 2 SMB jack and a 12X InfiniBand I/O connector. The PCI-6562 is run using the NI-HSDIO driver software which is compatible with software packages such as LabVIEW, LabWindows/CVI, or Measurement Studio.
The PCI-6562 Digital Waveform Generator has 16 low-voltage, differential signaling channels. These channels offer per-channel direction control in single-data-rate (SDR) mode. There are also three input and output clock terminals, along with an internal or external clock source. Channel-to-channel tilt is available, with the value of ±215 ps to enable generation capabilities. The value for channel-to-channel tilt in acquisition mode is ±330 ps. These values are for clock frequencies at or above 25 MHZ. The NI device weighs 14.5 oz, and measures 4.96 x 13.9 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 45 °C, and a storage temperature range of -20 °C to 70 °C.
PCI-6562 Obsolete Status has been announced by National Instruments, but this model will still be available for purchase and repairs at Apex Waves.
| Model | PCI-6562 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 778992-01, 778992-02, 778992-03 |
| Type | Digital Waveform Generator |
| Channels | 16 |
| Maximum Data Rate | 200 MHz |
| Voltage Level | LVDS |
| Dimensions | 4.96 by 13.9 in. |
| Weight | 14.5 oz. |
| Warranty | Three Year Warranty |
| PCI-6562 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
National Instruments PCI-6562 Frequently Asked Questions
Question: Why does the PCI-6562 have three part numbers?
Answer: The PCI-6562 has three memory options: part number 778992-01 with 2 Mb/ch memory, part number 778992-02 with 16 Mb/ch memory, and part number 778992-03 with 128 Mb/ch memory.
Question: What is the PCI 6562 driver called?
Answer: The PCI 6562 driver is called NI-HSDIO.
Question: Does the NI PCI-6562 have a programmable data delay feature?
Answer: Yes, the NI PCI-6562 has a programmable data delay feature.
Question: Which accessories are required for the NI PCI 6562?
Answer: The NI PCI 6562 requires these accessories: the SMA-2164 Connector Block and SHB12X-B12X Shielded Cable.
PCI-6562 PDF Manuals
MAINTAIN FORCED AIR COOLING NOTE TO USERS.PDF
NI HIGH SPEED DIGITAL WAVEFORM GENERATOR ANALYZER GETTING STARTED GUIDE.PDF
NI PXI PCI 6561 6562 SPECIFICATIONS.PDF
PXI PCI 6561 6562 LETTER OF VOLATILITY.PDF
Driver Downloads for PCI-6562
OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
