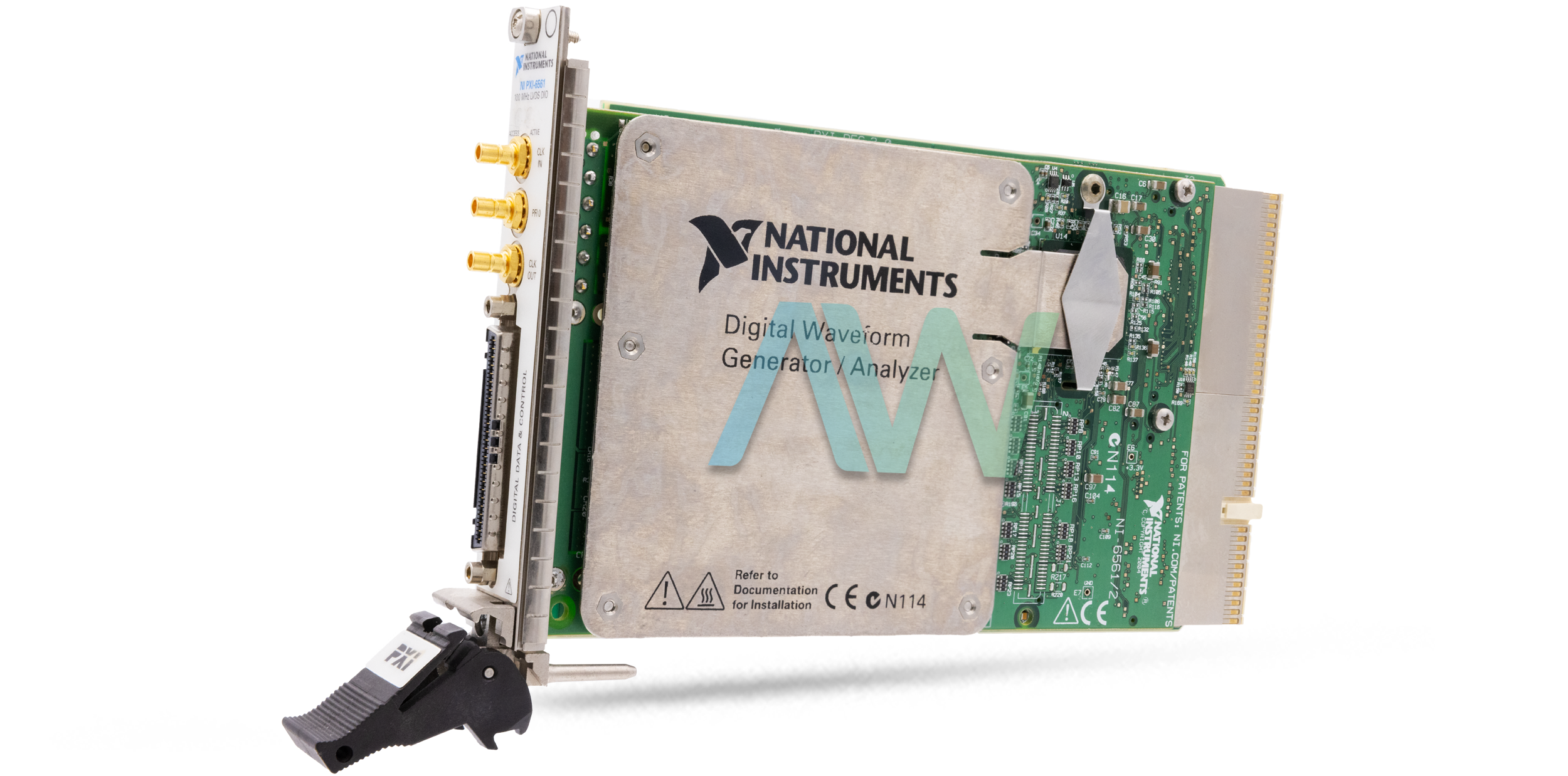

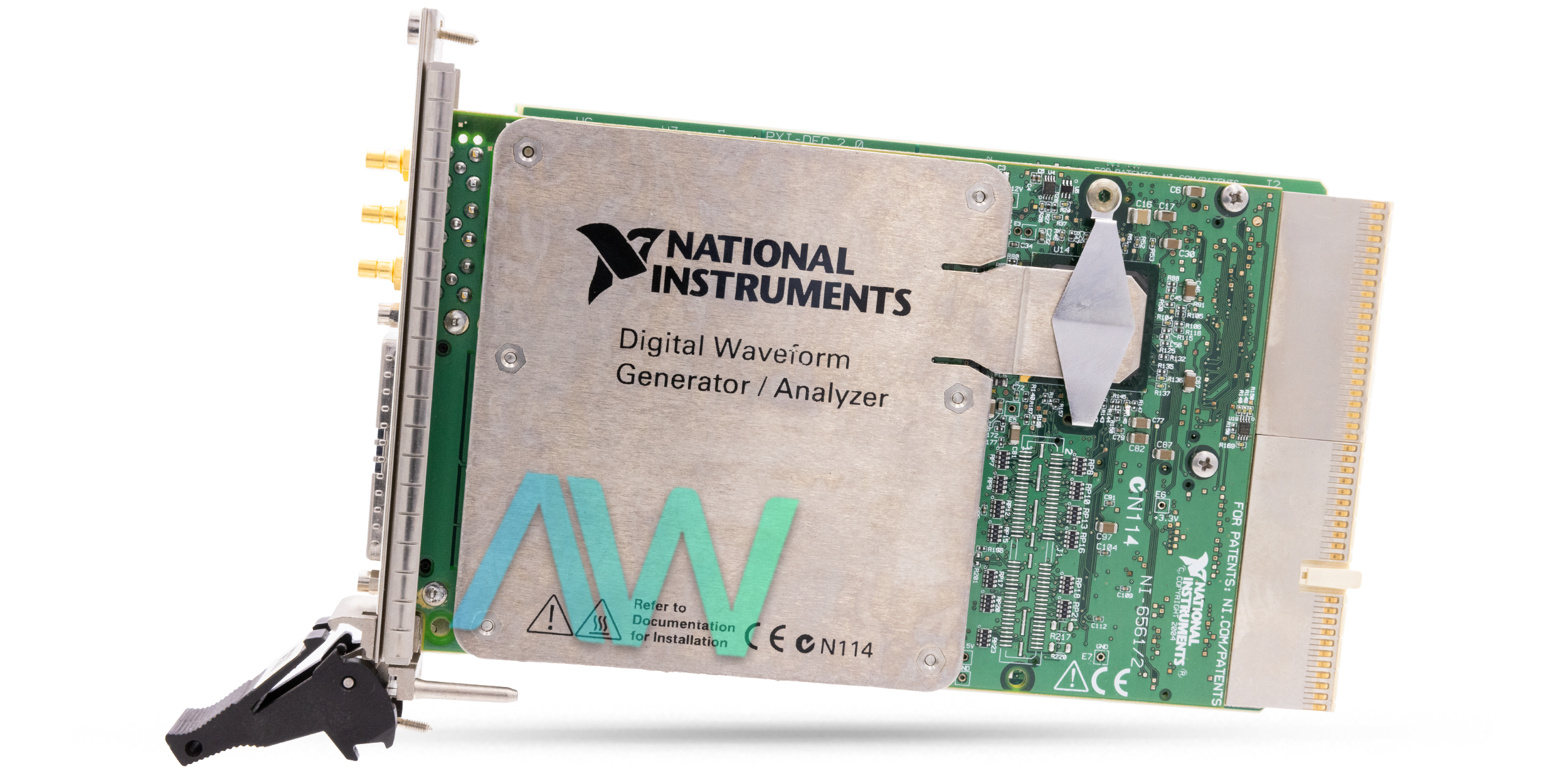

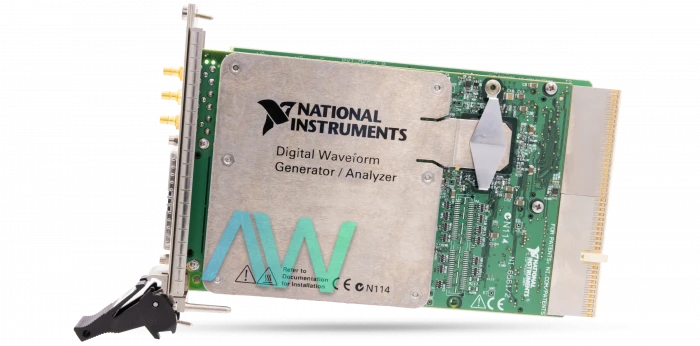

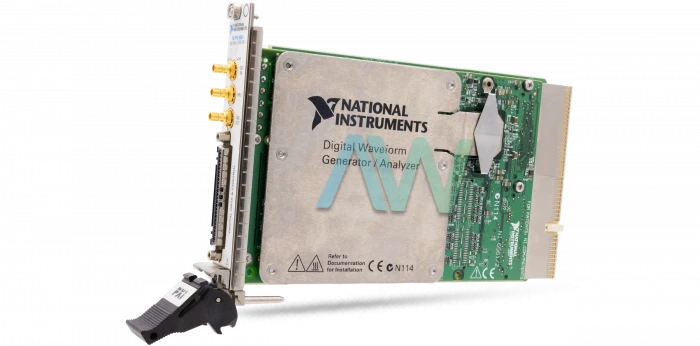

National Instruments PXI-6561 PXI Digital Waveform Instrument

The PXI-6561 (Part Numbers: 778993-01, 778993-02, and 778993-03) is a 16-Channel, 100 MHz Digital Waveform Instrument designed for interfacing, with up to 20 low-voltage signaling digital pins. This instrument can sample waveforms below and up to 100 MHz and can interface with standard LVDS voltage levels as well. The PXI-6561 also comes with capabilities for advanced synchronization, which is necessary for building joint mixed-signal test systems. The onboard clock on this instrument can operate within a frequency range of 48 Hz to 100 MHz.

This Digital Waveform Instrument comes with the Synchronization and Memory Core (SMC) technology. Thus, parameters such as maximum number of waveforms stored in memory, number of samples, and number of script instructions are user-defined and flexible. The SMC allows instructions and waveforms to share the onboard memory. The NI PXI-6561 provides 2 Mbit/channel for both the generation sessions and acquisition sessions. It can operate in two generation modes, which are the single-waveform mode and scripted mode. In the scripted mode, the PXI 6561 generates a complex or straightforward sequence of waveforms. In single waveform mode, it produces a single waveform once, continuously or n times.

The National Instruments PXI-6561 comes equipped with five types of triggers: Start Trigger, Pause Trigger, Script Trigger, Advance Trigger, and Reference Trigger. The NI-HSDIO driver software which is used with the NI PXI-6561 allows the user to control and configure their device. It also provides application interfaces for several development environments, such as LabVIEW 7.0 (or later), Microsoft Visual C/C++ 6.0 or later, and LabWindows™/CVI™ 6.0 or later. Other driver and editing software for this instrument includes Digital Waveform Editor, Express VIs for LabVIEW 7.1 and later, and Script Editor.

PXI-6561 Obsolete Status has been declared by National Instruments, but the instrument will still be available for purchase and repairs by Apex Waves.

ModelPXI-6561
ManufacturerNational Instruments
Part Numbers778993-01, 778993-02, 778993-03
TypePXI Digital Waveform Instrument
Channels16
Output Protection Range0 V to 5 V per channel
Voltage Range0 V, minimum; 2.4 V, maximum
Dimensions8.5 × 0.8 × 5.1 in.
Weight12 oz.
WarrantyOne Year Warranty
PXI-6561 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-6561 Frequently Asked Questions



Question: What is the difference between the three part numbers for the PXI-6561?



Answer: The PXI-6561 has different onboard memory sizes available: part number 778993-01 with 2 Mb/channel, 778993-02 with 16 Mb/channel, and 778993-03 with 128 Mb/channel.



Question: What is the driver for the NI PXI-6561?



Answer: The NI PXI-6561 driver is NI-HSDIO.



Question: What is the maximum power requirement for the PXI-6561?



Answer: The maximum power requirement for the PXI-6561 is 16.4 W.



Question: Which types of front panel connectors does the NI PXI-6561 have?



Answer: The NI PXI-6561 has SMB jack CLK IN, CLK OUT, and PFI 0 connectors and a 12X InfiniBand digital data & control connector.
