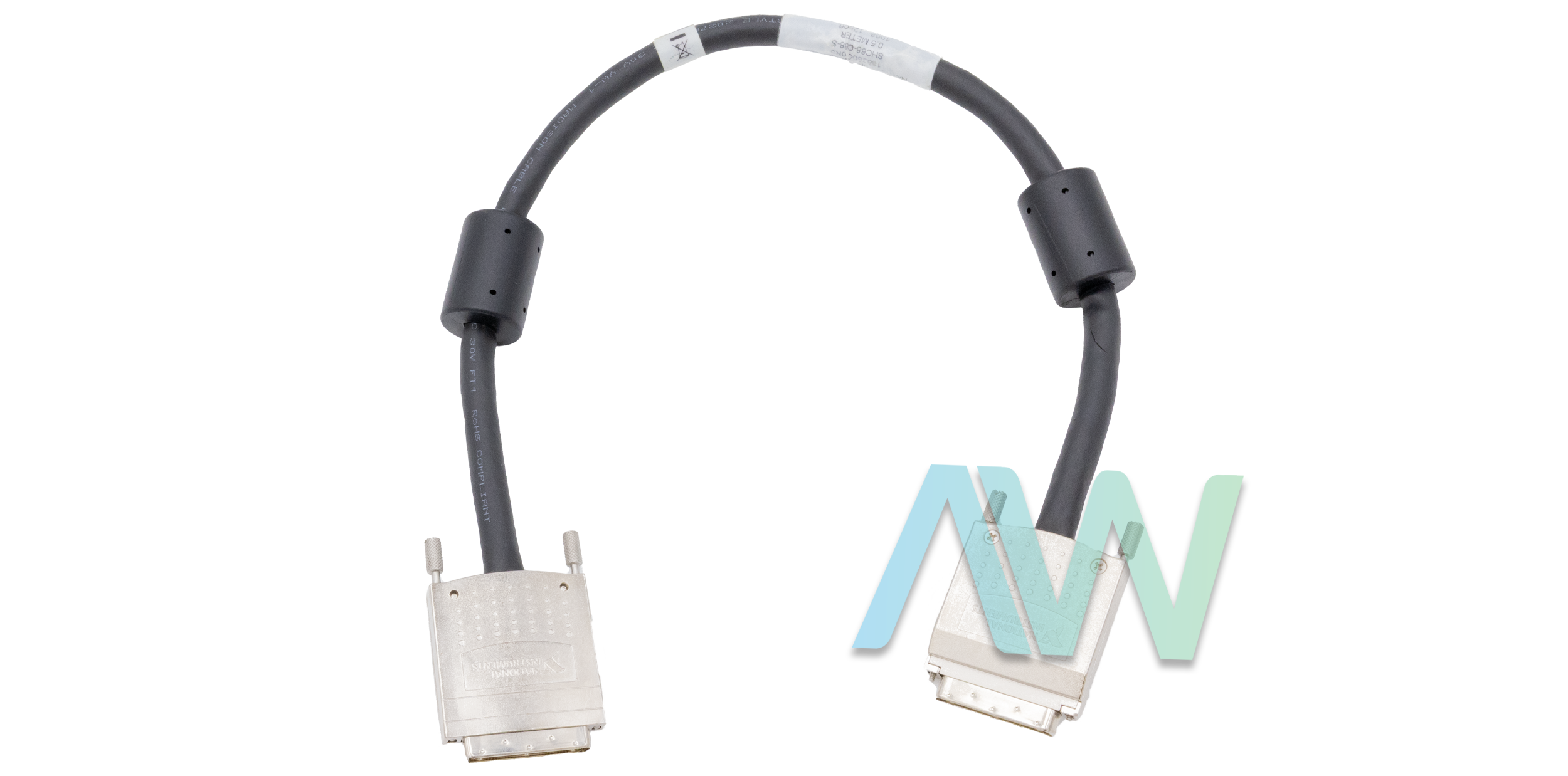

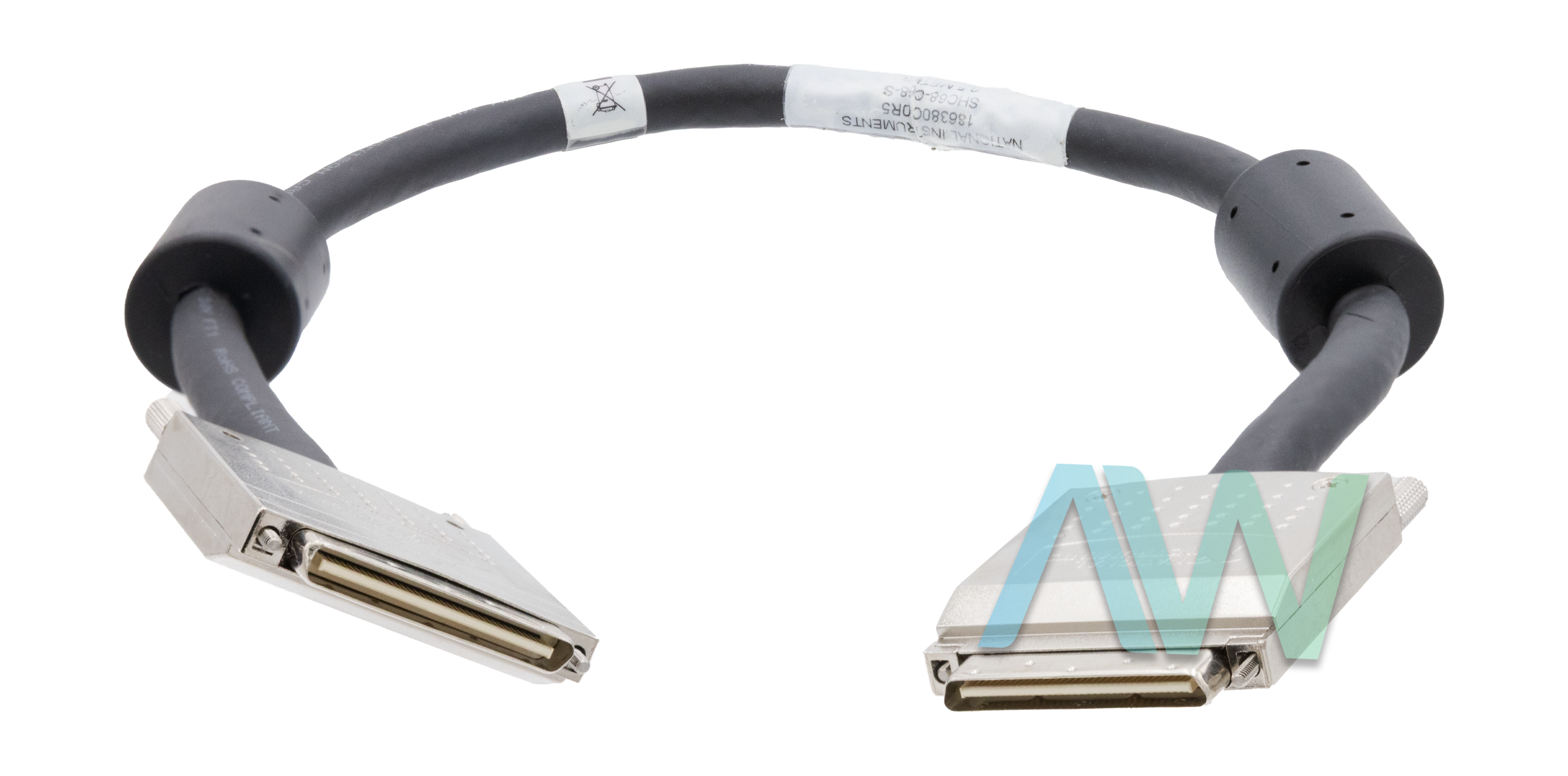

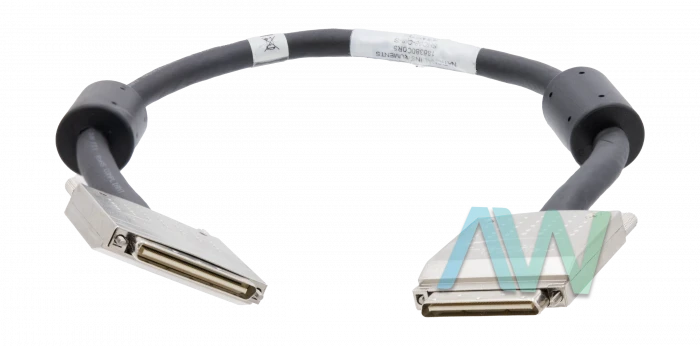

National Instruments SHC68-C68-S Cable
The SHC68-C68-S (Part Numbers: 186380-02 and 186380-0R5) is a cable which connects National Instruments motion controllers, such as NI-63xx from the X Series and NI-62xx from the M Series, to NI MID-76xx, MCA-7724, or UMI-7774 and UMI-7772 devices or SSR cable adapters. The “SHC” part of the product refers to the fact that it is a shielded cable assembly with a VHDCI connector. The next part, “68-C68” indicates the cable has a compact VHDCI connector on the accessory end. Finally, the “S” at the end of the name means the cable is specifically for switching and motion applications. This cable can only be used with DAQ products when recommended. The device has 30 AWG signal and +5 V wires, an outer diameter of 0.380 in., and a bend radius of 4.6 in.
The difference between the two part numbers for the SHC68-C68-S is the length. Part number 186380-02 is 2 m and part number 186380-0R5 is 0.5 m. One end of the NI SHC68-C68-S Cable is a 68-pin VHDCI offset male connector that connects to NI motion controllers, while at the other end is a 68-pin VHDCI offset male connector that connects to universal motion interfaces. The NI SHC68-68-S Cable has twisted pairs and is an affordable solution for customized breakout fixtures with a VHDCI connector.
| Model | SHC68-C68-S |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 186380-02 and 186380-0R5 |
| Type | Shielded Cable |
| Connectors | 68 pin VHDCI to 68 pin VHDCI |
| Cable Length | 0.5 m or 2 m |
| Compatible NI Models | Connecting to MID drives and UMI-7774/2 interfaces |
| Signal Wires | 30 AWG |
| +5V Wires | 30 AWG |
| Cable Outer Diameter | 0.380 in. |
| Bend Radius | 4.6 in. |
| SHC68-C68-S Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for SHC68-C68-S:
National Instruments SHC68-C68-S Frequently Asked Questions
Question: Which type of connectors are on the SHC68-C68-S cable?
Answer: The SHC68-C68-S cable has 68-pin 0.8 mm VHDCI Connector Male plugs for the device or module side cable pinout and the accessory side cable pinout.
Question: How long is the NI SHC68-C68-S?
Answer: The NI SHC68-C68-S is available in two lengths: part number 186380-02 is 2 m and part number 186380-0R5 is 0.5 m.
Question: Can the SHC68-C68-S be used with the MID-7604/7602 Power Amplifier Accessory?
Answer: Yes, the SHC68-C68-S can be used with the MID-7604/7602 Power Amplifier Accessory.
