PC-AO-2DC

In Stock | Ships Today

PC-AO-2DC, 2 Voltage and 2 Current AO, 12 bit, Analog Output and Digital I/O Board

Rated 5/5  |  15 ratings

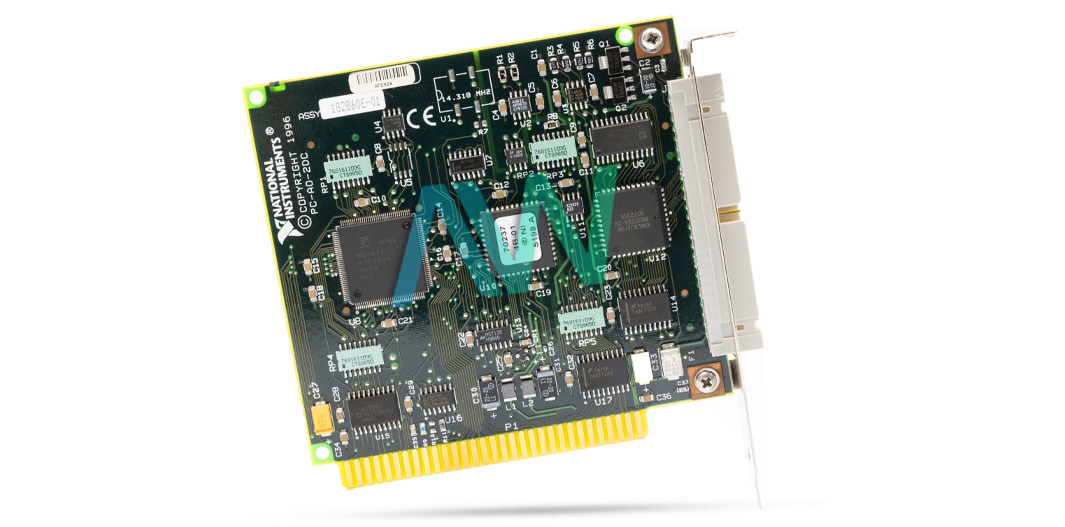

PC-AO-2DC National Instruments Analog Output and Digital I/O Board | Apex Waves | Image
❮ ❯

Actual item may vary if no part number is provided on quote request.

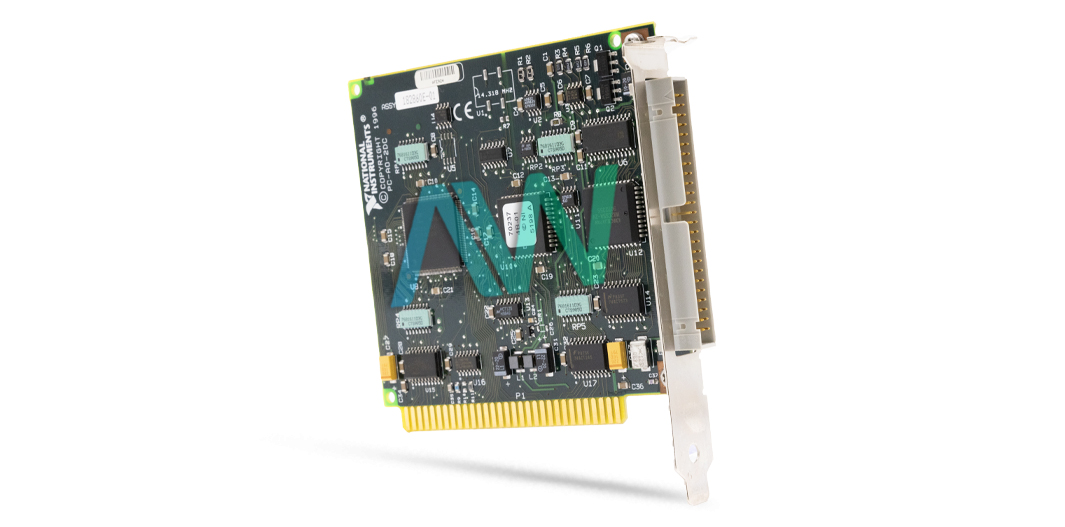

PC-AO-2DC National Instruments Analog Output and Digital I/O Board | Apex Waves | Image
PC-AO-2DC National Instruments Analog Output and Digital I/O Board | Apex Waves | Image
PC-AO-2DC New
PC-AO-2DC Refurbished

✔ 2 Year Warranty Included

✔ Free Domestic Ground Shipping

✔ NIST Calibration Available

Get Price & Availability for the PC-AO-2DC

Fast response from an Apex Waves specialist.

Fast Response Avg. 15 min
ISO 9001 Quality 2 Year Warranty
In Stock Ships Today

National Instruments PC-AO-2DC Analog Output and Digital I/O Board

The PC-AO-2DC board is comprised of analog output and digital input/output capabilities. This board is manufactured by National Instruments. The PC-AO-2DC can be installed with NI-DAQ driver software for PC compatibles. The NI PC-AO-2DC supports different types of application software depending on the OS being used. This Analog Output and Digital I/O Board can be used with LabVIEW and LabWindows/CVI software for Windows operating systems.

The NI PC-AO-2DC is specially designed for use with IBM PS/2 and PC/XT/AT modules. The PC-AO-2DC board is built with two 12-bit DACs. This Analog Output and Digital I/O Board is fabricated with circuitry that provides two channels for voltage and current outputs, which can be utilized in set-point types of applications. The National Instruments PC-AO-2DC also offers digital input/output lines with 16-bits resolution.

The NI PC-AO-2DC can be installed on a computer with an 8-bit or 16-bit expansion slot. The PC-AO-2DC is designed with DC output coupling. This board is built with an output current range from 0-20 mA. The NI PC-AO-2DC has a settling time of 100 μs. The National Instruments PC-AO-2DC requires a warm-up time of 15 minutes as recommended by the developer. The NI PC-AO-2DC has a slew rate of 0.3 V/μs. This Analog Output and Digital I/O Board comes with a male input/output connector with 50 pins. This board can be utilized with a CB-50 LP or CB-50 I/O Connector Block with an NB1 cable.

ModelPC-AO-2DC
ManufacturerNational Instruments
TypeAnalog Output and Digital I/O Board
Output ChannelsTwo voltage and two current
Resolution12 bits
Output CouplingDC
Bus Interface TypeSlave
I/O Connector50-pin male
Dimensions4.45 by 3.90 in.
PC-AO-2DC ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.
