Part Number PCI-7344
Manufacturer/Brand National Instruments
Description: PCI-7344, 4-Axis, Motion Controller
In Stock | Ships Today
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:

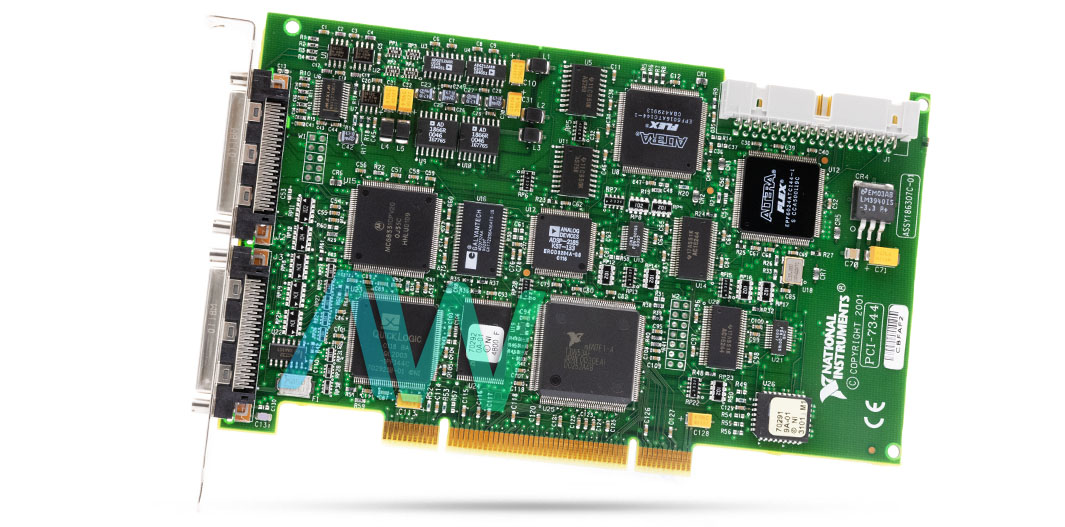

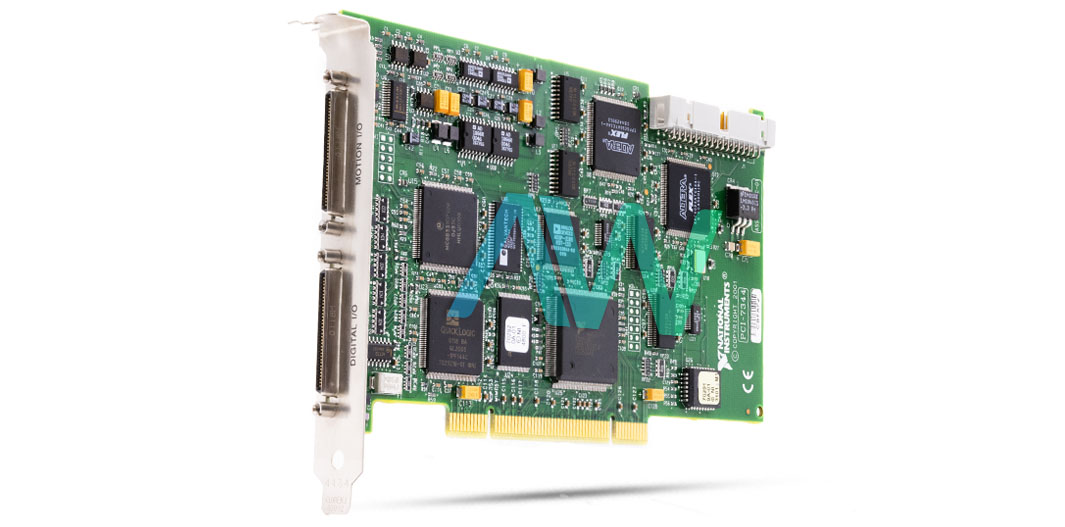

National Instruments PCI-7344 Motion Controller Device

Featured with 3D contouring, 3D linear and circular interpolation, and up to 62 ms PID loop update rate, the National Instruments PCI-7344 (Part number: 778916-04) is a high-quality Motion Controller for stepper/servo control applications. This device is well-suited for machine builders and end users who require the capability of creating powerful applications swiftly and effortlessly. This device has a unique construction in which the DSP and CPU operate together to provide the user with optimized closed-loop controlling, motion command processing, and automated systems controlling. The NI PCI-7344 Motion Control Board comes with integrated system safety mechanisms. For example, the watchdog timer function has 63 ms timeout and resets the board to the startup state.

The NI PCI-7344 has 62.5 to 500 µs/sample trajectory update range and offers 62.5 µs/axis maximum update range. This Motion Controller enables the user to acquire stepper outputs at 4 MHz maximum pulse rate and 120 ns maximum pulse width over a voltage range of 0 to 5 V. The PCI-7344 National Instruments offers four 8-bit digital I/O ports; each bit can be programmed individually. For motion controlling and digital I/O, two separate 68-pin female high-density VHDCI I/O connectors are provided.

The motion I/O connector incorporated in this Motion Controller contains all necessary signals required to control as many as four axes of stepper and servo motion, including: inhibit outputs, breakpoint outputs, motor command outputs, reverse limit inputs, home limit inputs, and more. For high-speed connectivity between the NI Motion Controller PCI 7344 and other National instruments devices, the user can utilize the RTSI connector provided. This Motion Controller is fully compatible with LabVIEW 6.0, C/C++, and various other software programs.

Each NI PCI-7344 requires:

-MID-7604 Stepper Motor Drive: 777936-01

-MID-7654 Servo Motor Drive: 778005-01 and 778005-05

-SHC68-C68-S 0.5 m Cable: 186380-0R5

-UMI-7774 Universal Motion Interface: 778558-01

PCI-7344 Obsolete Status has been announced by National Instruments, but the motion controller will still be available for purchase and repairs by Apex Waves.

ModelPCI-7344
ManufacturerNational Instruments
Part Number778916-04
TypeMotion Controller Device
Axes4
Analog Inputs4
Analog Outputs4
Dimensions6.9 by 3.9 in.
I/O Connector68-pin female high-density VHDCI type
WarrantyOne Year Warranty
PCI-7344 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.
