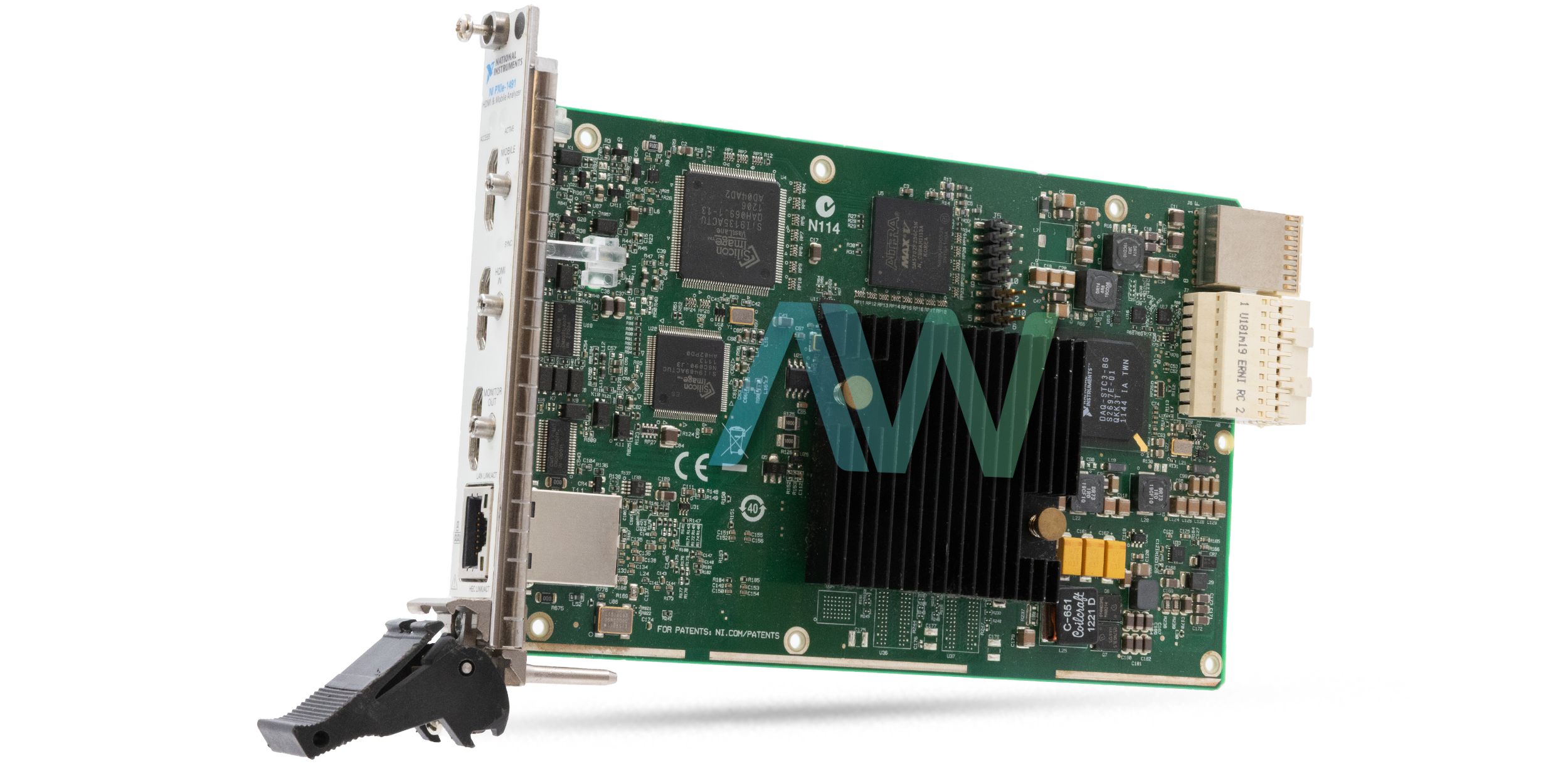

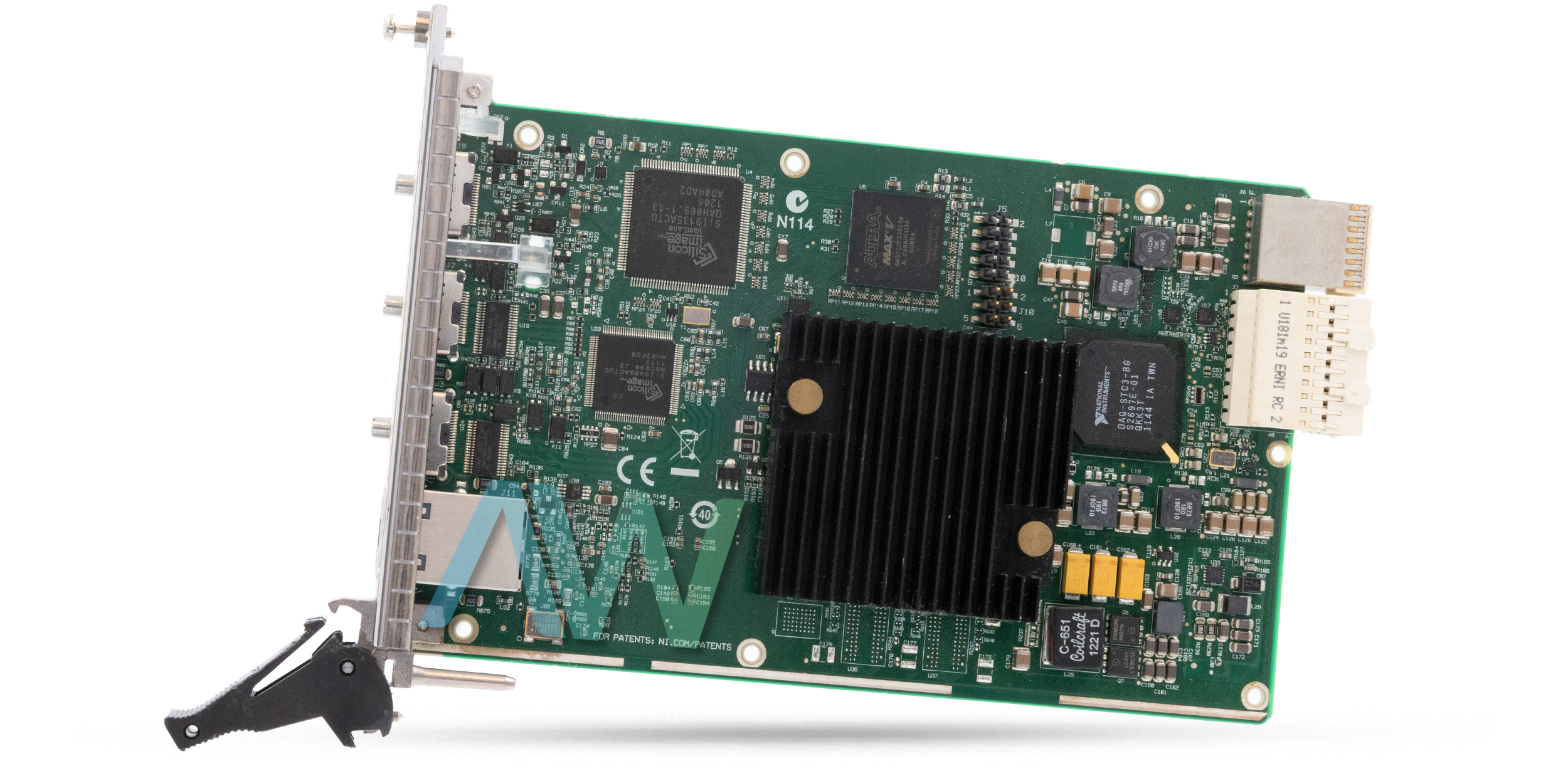

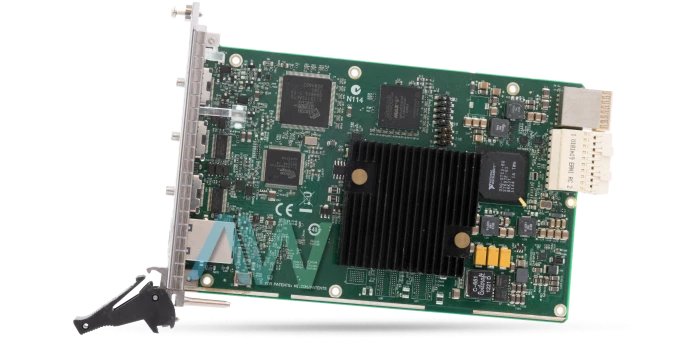

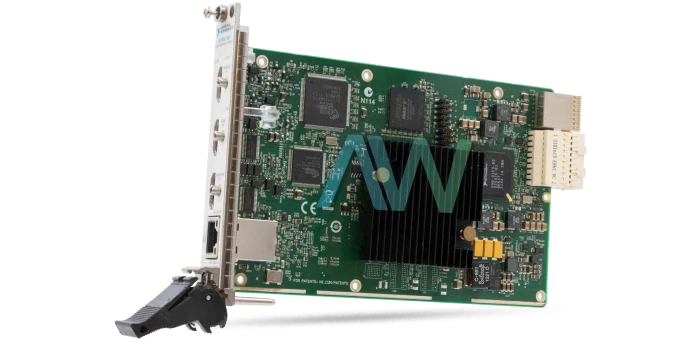

National Instruments PXIe-1491 PXI Audio and Video Analyzer

The PXIe-1491 is an advanced HDMI Protocol Audio and Video Analyzer with exceptional built-in capabilities to analyze HD audio and video files. The NI PXIe-1491 enables the user to carry out audio, video, and communication protocol. The users can conduct analysis for a number of multimedia devices, including: smartphones, tablets, set-top boxes, A/V encoders, and many more. Users can carry out measurements quickly with high accuracy. The PXIe-1491 can be implemented as an automated multimedia test system and can be utilized for testing medical devices and military A/V equipment.

The NI PXIe-1491 Audio and Video Analyzer incorporates eight audio channels. These channels offer the audio sample rate in the range of 32 kHz to 192 kHz. It also has two built-in ARC channels. The sample rates for the ARC channels are 32, 44.1, or 48 kHz. The ARC channels offer a typical value of 35ppm. The HDMI functions of the PXIe-1491 include Video, Audio, CEC, ARC, HEC, and HPD analysis. The TDMS clock rate of the instrument ranges from 25 MHz to 225 MHz. The range of the video clock rate is from 25 MHz to 165 MHz.

The National Instruments PXIe-1491 has a great minimum value for pulse width detection for video and audio triggers. It is 64 nanoseconds. The NI PXIe 1491 comes in a compact size and shape and weighs around 208 grams. The dimensions are 8.5 x 0.8 x 5.1 inches. The maximum power consumption of the instrument is 30 watts. The NI PXIe-1491 Audio and Video Analyzer also has driver and application software available.

PXIe-1491 Obsolete Status has been announced by National Instruments, but the Analyzer will still be available for purchase and repairs by Apex Waves.

ModelPXIe-1491
ManufacturerNational Instruments
TypePXI Audio and Video Analyzer
TMDS Clock Rate25 MHz to 225 MHz
Video Clock Rate25 MHz to 165 MHz
Audio Channels8-channel LPCM or encoded audio
Total Power30 W
Dimensions8.5 x 0.8 x 5.1 in.
Weight7.3 oz.
WarrantyOne Year Warranty
PXIe-1491 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXIe-1491 Frequently Asked Questions



Question: Which types of application software can be used with the PXIe-1491?



Answer: The following types of application software can be utilized with the PXIe-1491: NI AudioMASTER 6.3 or later, NI Video Measurement Suite (VMS) 3.2 or later, or NI Picture Quality Analysis (PQA) 1.5 or later.



Question: What are the HDMI functions of the NI PXIe 1491?



Answer: The HDMI functions of the NI PXIe 1491 are HPD, video, HEC, audio, ARC, and CEC.



Question: What is the minimum detectable pulse width for the NI PXIe-1491?



Answer: The NI PXIe-1491 has a minimum detectable pulse width of 64 ns.



Question: What are the audio trigger destinations for the PXIe-1491?



Answer: The audio trigger destinations for the PXIe-1491 are PXI_TRIG<0…7>.
