PXIe-4144

In Stock | Ships in 5-10 Days

PXIe-4144, 4 SMU Channels, D-SUB Connectors, PXI Source Measure Unit

Rated 4.9/5  |  14 ratings

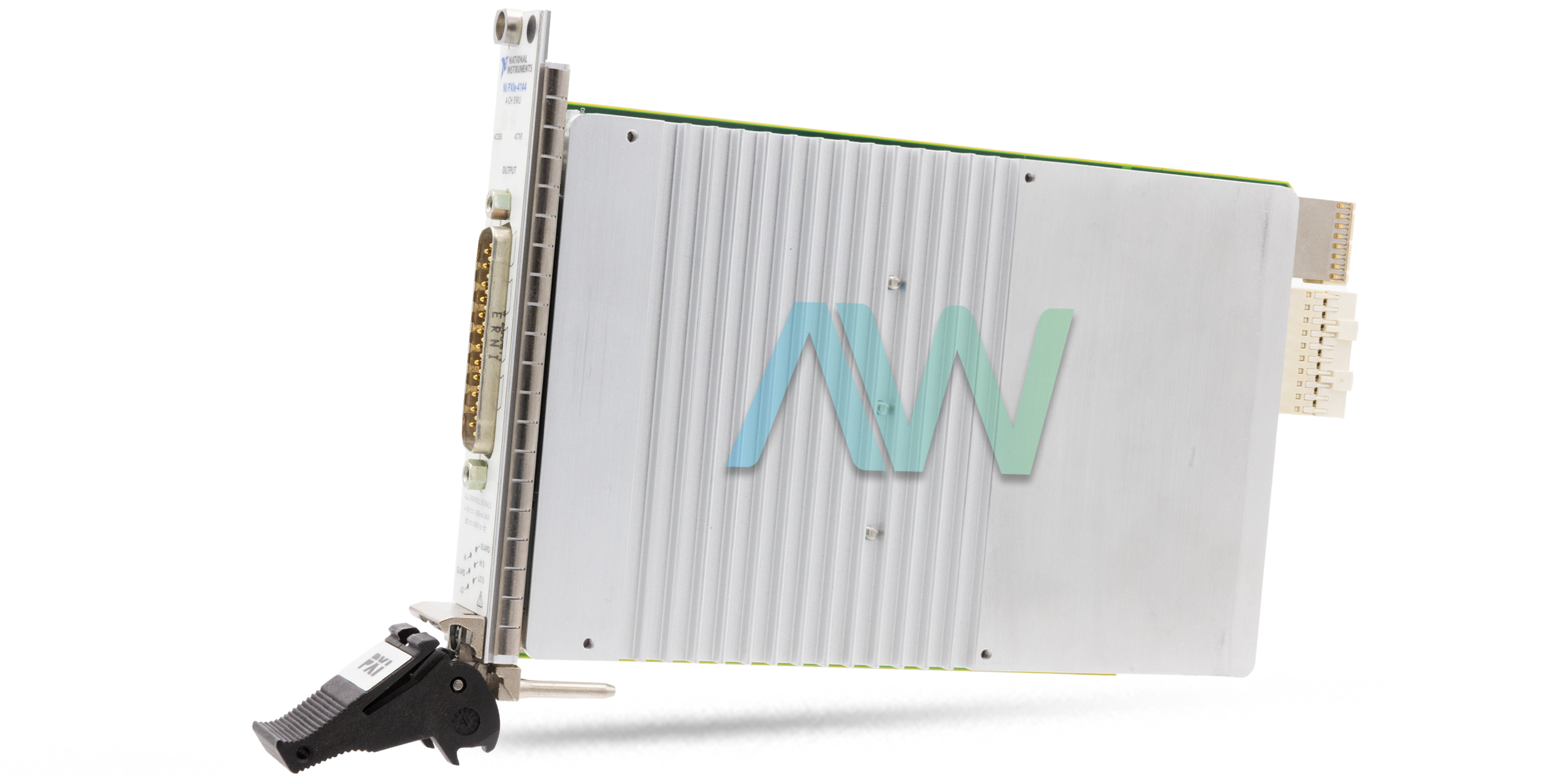

PXIe-4144 National Instruments PXI Source Measure Unit | Apex Waves | Image
❮ ❯

Actual item may vary if no part number is provided on quote request.

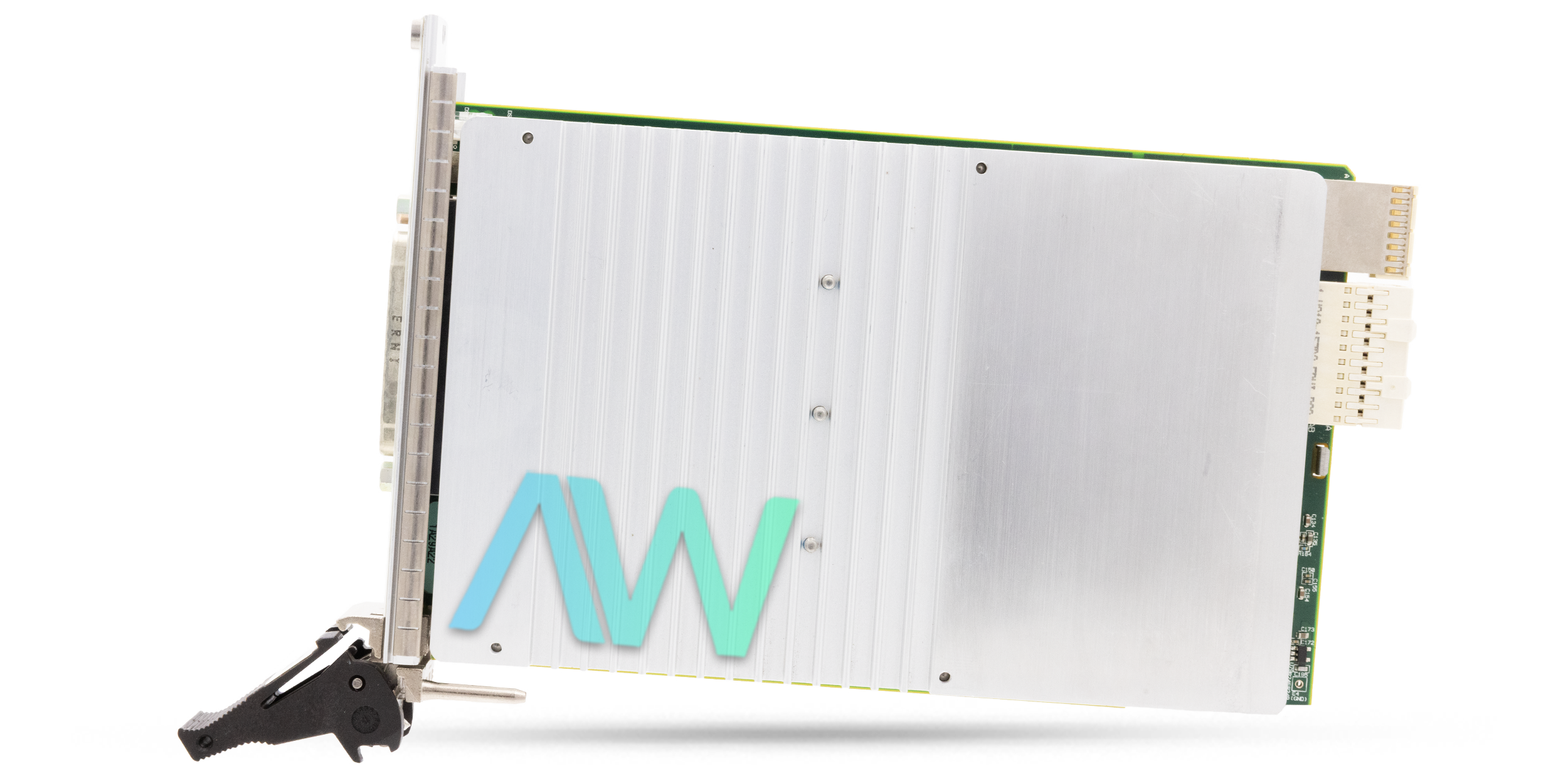

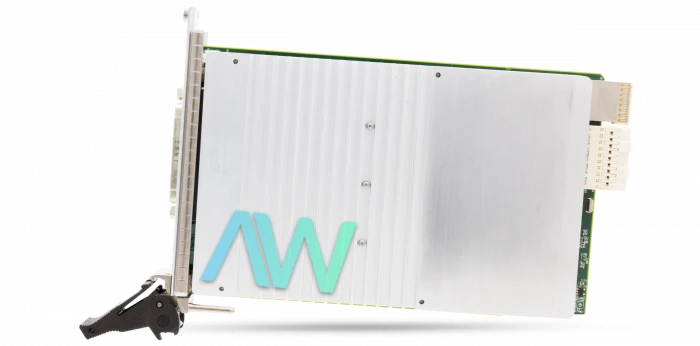

PXIe-4144 National Instruments PXI Source Measure Unit | Apex Waves | Image

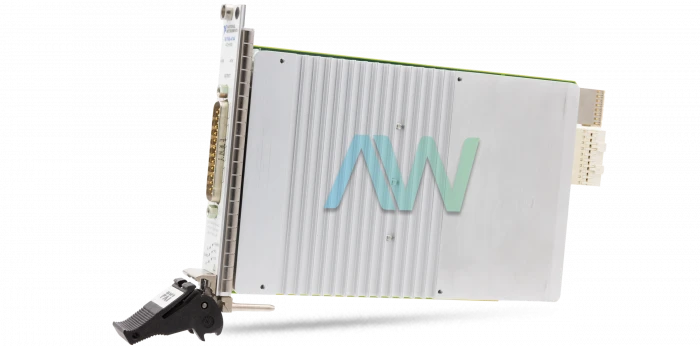

PXIe-4144 National Instruments PXI Source Measure Unit | Apex Waves | Image
PXIe-4144 New
PXIe-4144 Refurbished

✔ 2 Year Warranty Included

✔ Free Domestic Ground Shipping

✔ NIST Calibration Available

Expert Insights for the PXIe-4144

"The PXIe-4144 is a 4 channel source measurement unit. Each channel has integrated remote 4 wire sensing, which is ideal for accurate measurements. The high speed sequencing engine can synchronize all of the devices in your chassis together, resulting in measurements that are perfectly timed."

technician's profile picture

- Chris B.

LabVIEW Trained

In-House Technician

Get Price & Availability for the PXIe-4144

Fast response from an Apex Waves specialist.

Fast Response Avg. 15 min
ISO 9001 Quality 2 Year Warranty
In Stock Ships in 5-10 Days

Expert Insights for the PXIe-4144

"The PXIe-4144 is a 4 channel source measurement unit. Each channel has integrated remote 4 wire sensing, which is ideal for accurate measurements. The high speed sequencing engine can synchronize all of the devices in your chassis together, resulting in measurements that are perfectly timed."

technician's profile picture

- Chris B.

LabVIEW Trained

In-House Technician

National Instruments PXIe-4144 PXI Source Measure Unit

The PXIe-4144 (Part Number: 782432-01) from National Instruments is a High Speed PXI Source Measure Unit with 4 SMU channels. Based on the modular PXI architecture, this SMU is designed with features that shorten test execution times. Source Measure Units like the PXIe-4144 from NI are capable of being integrated with additional hardware- including oscilloscopes, RF generators and analyzers. This device allows the user to create systems that test several devices simultaneously, increasing the throughput of each tester with flexibility and increased channel density. The front panel connectors featured by this Source Measure Unit are 25-Position Male D-SUB connectors.

The input trigger types of the PXIe-4144 are Start, Source, Sequence Advance, and Measure. The polarity of of these sources (trigger lines 0 - 7) is configurable, with a nominal minimum pulse width of 100 ns. On the other hand, the destinations for these trigger lines are not configurable, but have an active high polarity. The minimum pulse width for the destinations is nominal and >200 ns. In terms of measurement and update timing features, the PXIe-4144 SMU has available sample rates calculated by the formula (600 kS/s)/N. The accuracy of the sample rate is ±50 ppm, with a continuous maximum measure rate to host of 600,000 S/s per channel.

The PXI Express power requirement for the PXIe-4144 differs depending on the voltage rail. A 12 V rail gives 2.1 A of power, while a 3.3 V rail is for 2.9 A of required power.

Designed as a one slot PXI Express/CompactPCI Express module, this device measures dimensions of 0.8 in. × 5.1 in. × 8.5 in. (2.0 cm × 13.0 cm × 21.6 cm) and weighs in at 14.39 oz (408 g). When operational, the PXIe-4144 has a temperature range of 0 °C to 55 °C with a noncondensing relative humidity range of 10% to 70%. When not being used, the device has an ambient storage range of -40 °C to 70 ºC with a noncondensing relative humidity range spanning from 5% to 95%.

ModelPXIe-4144
Part Number782432-01
ManufacturerNational Instruments
TypePXI Source Measure Unit
SMU Channels4
Voltage Range-6 V to 6 V
Current Range-500 mA to 500 mA
Dimensions0.8 x 5.1 x 8.5 in.
Weight14.39 oz.
PXIe-4144 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote for Pricing

Associated part numbers for PXIe-4144:

National Instruments PXIe-4144 Frequently Asked Questions



Question: What is the power requirement for the PXIe-4144?

Answer: The SMU has a power requirement of 2.1 A from the 12 V rail and 2.9 A from the 3.3 V rail.



Question: What is the current sensitivity of the NI PXIe-4144?

Answer: The Source Measure Unit has a current sensitivity of 150 pA.



Question: What type of equipment is needed to calibrate the PXIe-4144?

Answer: To calibrate the NI SMU, the user needs a Digital Multimeter, two 50 Ω resistors, and a 500 Ω resistor.



Question: Is self-calibration possible?

Answer: Yes, it is possible to self-calibrate the NI PXIe-4144.

Accessory TypeModel NamePart Number
Screw Terminal Accessory  Screw Terminal Connector Kit  781974-01
CableDB25F-DB25F
---
