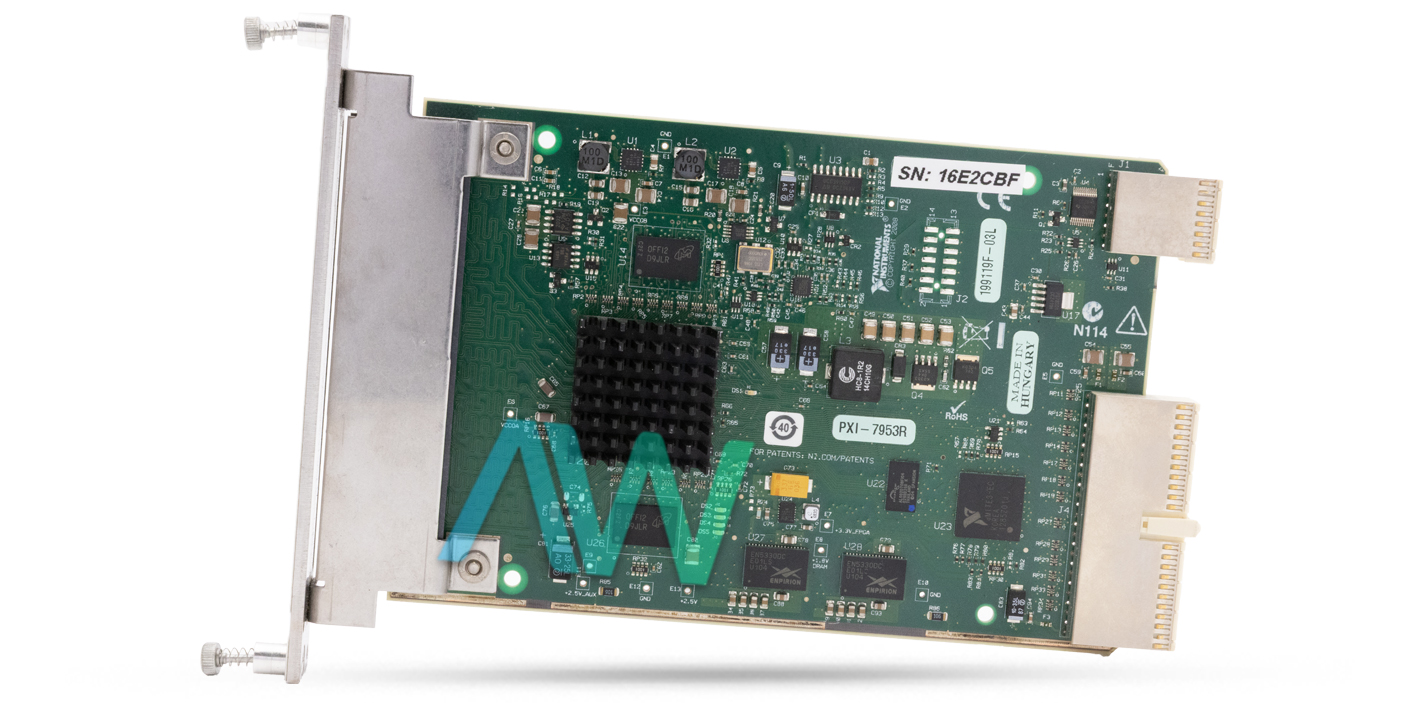

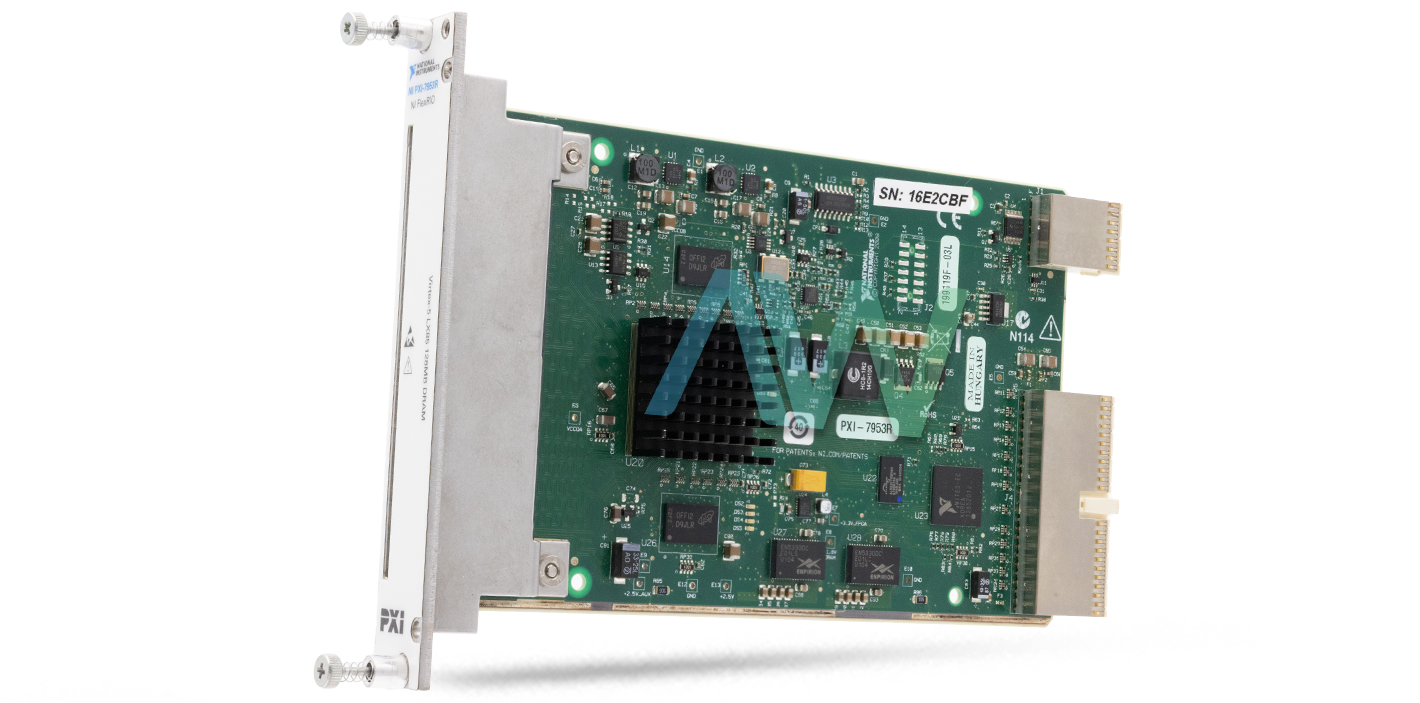

PXI-7953R National Instruments PXI FPGA Module for FlexRIO | Apex Waves | Image PXI-7953R National Instruments PXI FPGA Module for FlexRIO | Apex Waves | ImagePXI-7953RPXI-7953R | Legacy, Refurbished and New Surplus
PXI-7953R National Instruments PXI FPGA Module for FlexRIO | Apex Waves | Image
PXI-7953R National Instruments PXI FPGA Module for FlexRIO | Apex Waves | Image
PXI-7953R New
PXI-7953R | Legacy, Refurbished and New Surplus

PXI-7953R

4.6/5 | 20 ratings

Modular Systems > National Instruments > R Series

Part Number PXI-7953R
Manufacturer/Brand National Instruments
Description: PXI-7953R, Virtex-5 LX85 FPGA, PXI FPGA Module for FlexRIO
Lowest Price Guarantee
Fast Quote
Quoted Price
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:


National Instruments PXI-7953R PXI FPGA Module for FlexRIO

Featured with a Virtex-5 LX85 FPGA, the PXI-7953R (Part Number: 780562-01) is a Reconfigurable FlexRIO FPGA module. The LX85 FPGA offers 51,840 LUTs, 48 DSP48 Slices, and 3,456 Kbits of BRAM. The FPA also has 12,960 FPGA Slices. This module can be configured by the user through appropriate software programs for its deployment in a variety of measurement and data acquisition applications. The 66 I/O pairs provided on this device is of a general-purpose type that can also be configured as 132 single-ended signals.

The PXI-7953R has 128 megabytes of DRAM and can be deployed in any compatible PXI slot. This module is widely used in the construction of FlexRIO systems. A combination of the PXI-7953R PXI Module and a FlexRIO Adapter Module results in the formation of a fully, software-reconfigurable instrument that supports graphical programming through Verilog/VHDL or LabVIEW. This module is designed in the PXI form-factor can be coupled with any type of FlexRIO adapter module including a digital I/O or RF module.

PXI-7953R Mature Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelPXI-7953R
ManufacturerNational Instruments
Part Number780562-01
TypePXI FPGA Module for FlexRIO
FPGAVirtex-5 LX85
General-Purpose Channels132
DRAM128 MB
Embedded Block RAM3,456 kbits
DSP Slices48
LUTs/Flip-Flops51,840
Bus InterfaceMaster, slave
Dimensions7.4 x 5.1 in.
Weight1 lb.
WarrantyOne Year Warranty
PXI-7953R ManualUser Manual and Maintenance Manual Available for Download
PricingContact a Sales Representative for a quote.

Why Buy From Apex Waves:

Apex Waves Youtube Video


Delivery:
UPS, FedEX and DHL – Free Fedex Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All of our products are covered by our Apex Waves Warranty.
3 Year Warranty - New Surplus Parts
2 Year Warranty - Refurbished Parts
Returns: No hassle return policy.
Dedicated customer service team.
Payment:
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
Repair Evaluation: $150
