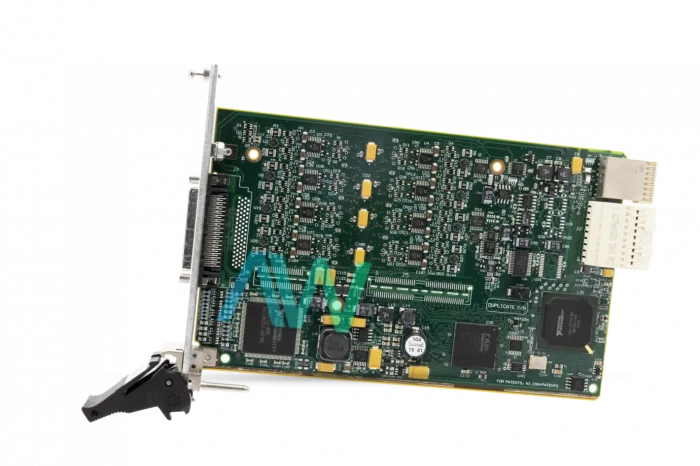

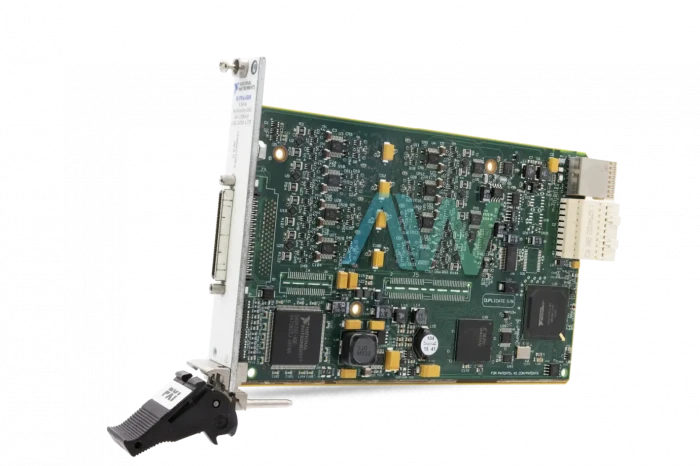

National Instruments PXIe-6366 PXI Multifunction I/O Module

The PXIe-6366 (Part Number: 781057-01) is a high-performance, simultaneous sampling, 16-bit Multifunction I/O Module from the X Series by NI. The NI PXIe-6366 offers analog I/O, digital I/O, counter/timers, and analog/digital triggering. This module enables the user to perform configurations and measurements easily. module delivers advanced timing functionality, independent timing engines, and triggerable measurement tasks.

The PXIe-6366 Multifunction I/O Module has eight differential analog inputs with a sample rate of 2 MS/s per channel and 16 bits of resolution. The module also has two analog outputs with 3.33 MS/s update rate, 16-bit resolution, and ±10V. The NI PXIe-6366 module additionally has 24 digital channels, which are individually programmable as input or output. Eight digital channels are hardware-timed up to 10 MHz.  The PXIe-6366 module features four 32-bit, 100 MHz counters. These counters can be used for PWM, encoder, frequency, and triggering functionality.

The use of NI-STC3 technology provides both analog/digital triggering and improved timing. The module has one 68-pin female VHDCI connector. The module has a high-throughput PCI Express bus, a multicore-optimized driver, and application software. The driver and software are supported for Windows 10/8/7/Vista/XP. The latest software stops crashes from occurring, as well as optimizes the hardware and system performance.

The National Instruments PXIe-6366 Multifunction I/O Module is well suited for a broad range of applications, from basic data logging to control and test automation. This module can be used in several industrial applications, such as IF digitization, transient recording, ultrasound, and sonar testing. The module additionally is great for the high energy physics and telecom industry, as well as ISDN, ADSL, and POTS manufacturing test.
