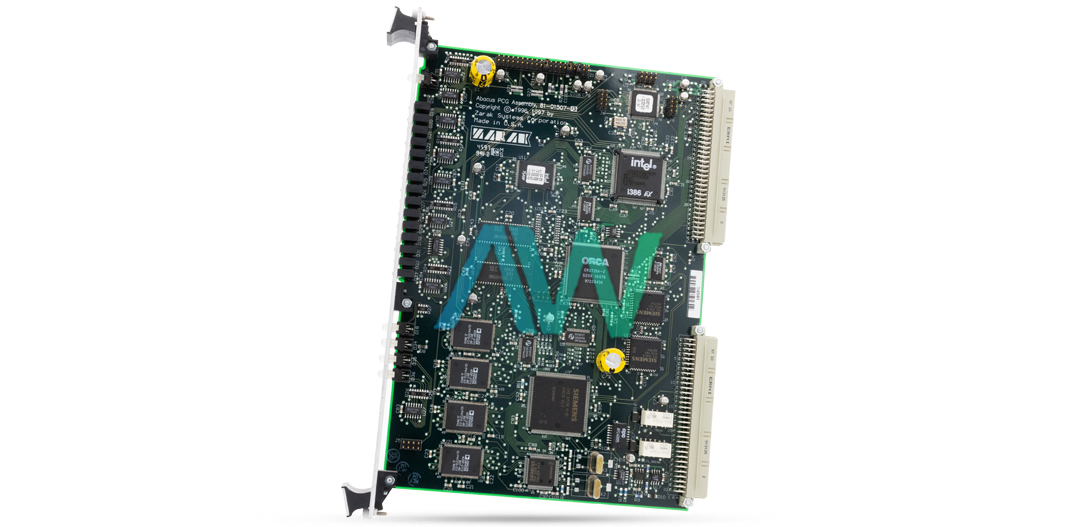

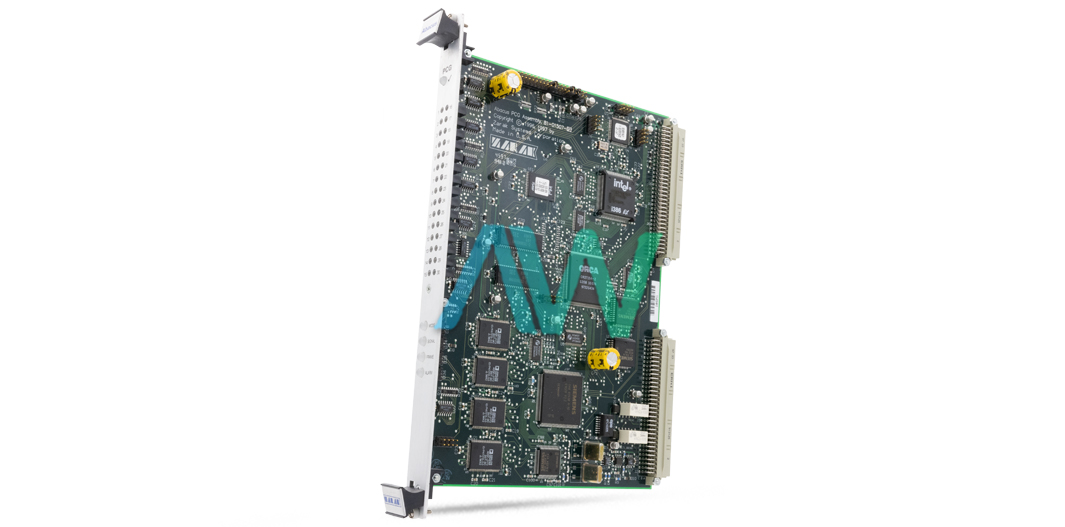

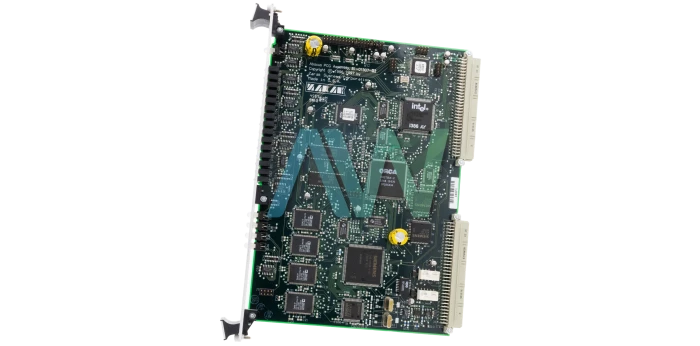

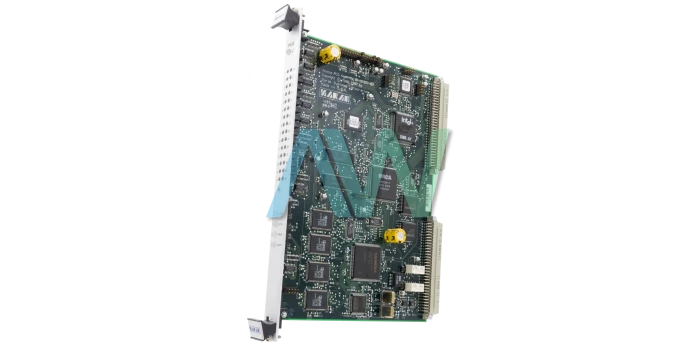

Spirent Abacus PCG Model 81-01507-13
The Spirent Abacus PCG Model 81-01507-13 is a high-performance, four-wire subscriber, or exchange interface card ideal for heavy-duty telecommunications testing. As part of the modular Abacus1 system, Model 81-01507-13 provides protocol support such as T1 CAS, E1 CAS, T1 PRA, E1 PRA, SLC-96, GR-303, V5.1, V5.2, and SS7, among others, to possess the needed device test functionality and compatibility with international communication standards. It is designed to be a key building block for generating, switching, or analyzing telephone traffic: an application requires bulk calls to be generated or a central office to be emulated.
The Spirent Abacus PCG Model 81-01507-13 will generate and switch calls with ease to simulate those in real-life scenarios in telecommunication networks. It converts for both A-law and µ-law encoding with the model number 81-01507-13 and is hence versatile for many circuit types. This unit generates and terminates calls between systems while gathering real-time statistics and performing programmable call sequences. Due to the sophistication, the unit is particularly suited for testing PBXs, checking the routing of calls, and the network capacity during high volumes of calls.
The Model 81-01507-13 has been designed for the Abacus1 system, featuring easy-to-operate interfaces provided by Windows-based software run from an external PC. In such a way, this setting allows for complete control, using the Spirent Abacus PCG Model 81-01507-13 in batch test automation, protocols, and multi-interface types. It is modular, scalable, and fits to 1,023 channels for the purpose of large-scale testing, extendable for future upgrades. It thus makes the Model 81-01507-13 an indispensable tool for such equipment manufacturers, providers of telecommunication, and system integrators.
In particular, the Spirent Abacus PCG Model 81-01507-13 is designed for traditional telephony, VoIP, satellite communications, or hybrid test environments. The Model 81-01507-13 can generate and switch calls simultaneously in order to strongly validate communications systems supporting multiple global protocols. Able to maintain consistent performance with deep analytics, it underpins its value when modern network infrastructures are put to test.
| Model | 81-01507-13 PCG Card |
|---|---|
| Part Type | 4-Wire Subscriber or Exchange Interface Card |
| Application | Call generation, switching, and analysis for telecom networks |
| Supported Protocols | T1 CAS, E1 CAS, T1 PRA, E1 PRA, SLC-96, GR-303, V5.1, V5.2, SS7 |
| Capacity | Up to 1,023 channels in Abacus1 system |
| Encoding Compatibility | A-law and µ-law conversions |
| Real-Time Analysis | Displays call statistics and protocol data |
| Modularity | Expandable design, supports mixed circuit types |
| Power Requirements | 300 W max (rack-mounted), 85 W max (portable) |
