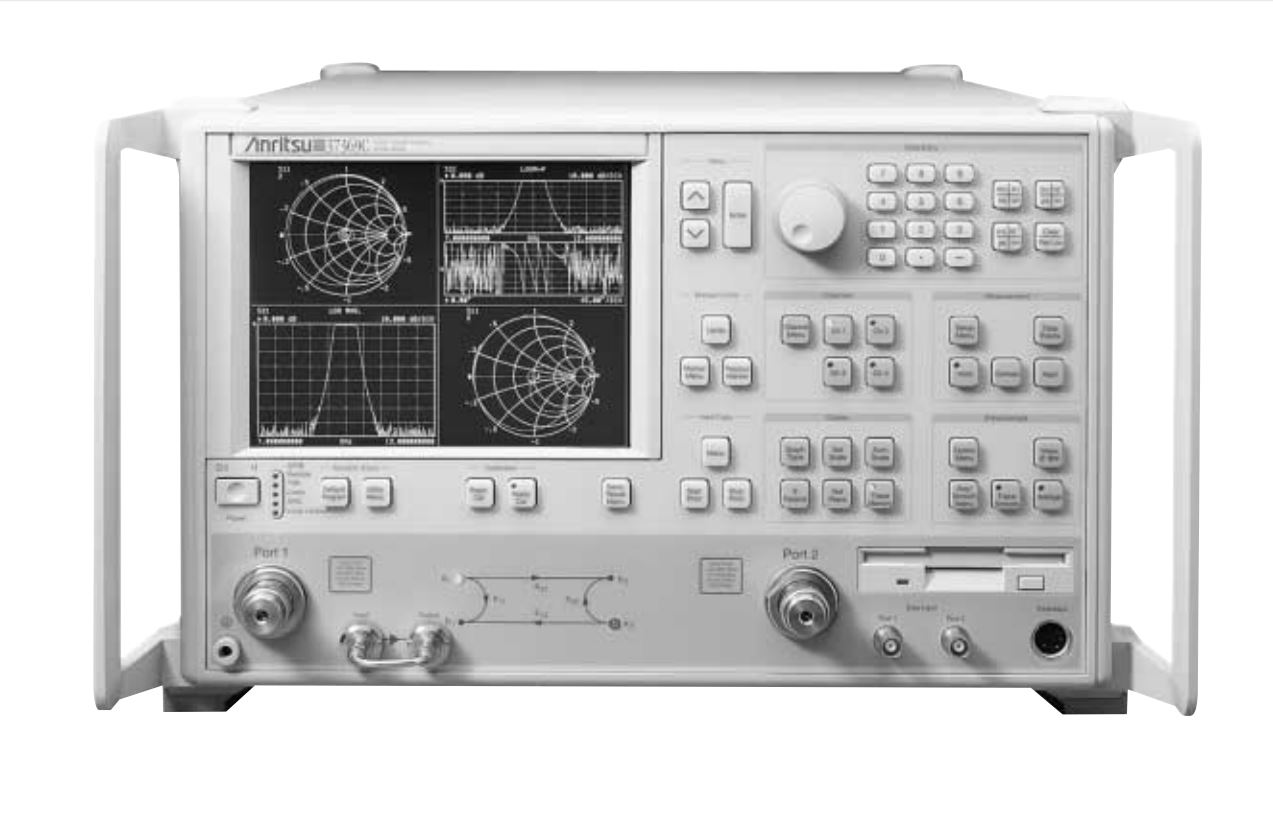

Anritsu 37317A Vector Network Analyzer
The Anritsu 37317A Vector Network Analyzer has a Frequency Range between 22.5 MHz to 8.6 GHz, and is part of Anritsu’s elite instruments intended to make quick and exact S-parameter measurements. This series incorporates a combined source, S-parameter test set, and tuned collector into a solitary smaller bundle that is perfect for seat top testing. High throughput estimations are accomplished in this model using quick, 12-term mistake rectified breadths, quick GPIB information exchanges, and a natural UI. All estimations are shown on a substantial LCD display or on an outside VGA screen.
The 37317A has a Frequency Counter between 0.1 to 26.5 GHz and an input impedance of 50Ω, a Power Meter and a Power Sensor with a frequency of 65 GHZ, and a Digital Multimeter with 4 ½ digits of resolution.
This model offers many arrangements, such as: Log Magnitude, Phase, Log Magnitude and Phase, Smith Chart (Impedance), Smith Chart (Admittance), Linear Polar, Log Polar, Group Delay, Linear Magnitude, Linear Magnitude and Phase, Real, Imaginary, Real and Imaginary, SWR, Power.
The data points for this model have 1601 as the most extreme. Information focuses can be changed to an estimation of 801, 401, 201, 101 or 51 focuses without recalibration (if 1601 focuses were utilized as a part of the adjustment). Furthermore, the framework acknowledges a self-assertive arrangement of N discrete information focuses where: 2 ≤ N ≤ 1601. CW mode grants choice of a solitary information point without recalibration.
The manual for this model is available on the ApexWaves.com website.
| Model | 37317A |
|---|---|
| Manufacturer | Anritsu ã‚¢ãƒ³ãƒªãƒ„æ ªå¼ä¼šç¤¾ |
| Series | 37000A |
| Type | Vector Network Analyzer |
| Power Range | 0 to -90 dBm |
| Channels | Four |
| Frequency Range | 22.5 MHz to 8.6 GHz |
| Operating Temperature Range | 0ºC to +50ºC |
| 37317A Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for 37317A:
