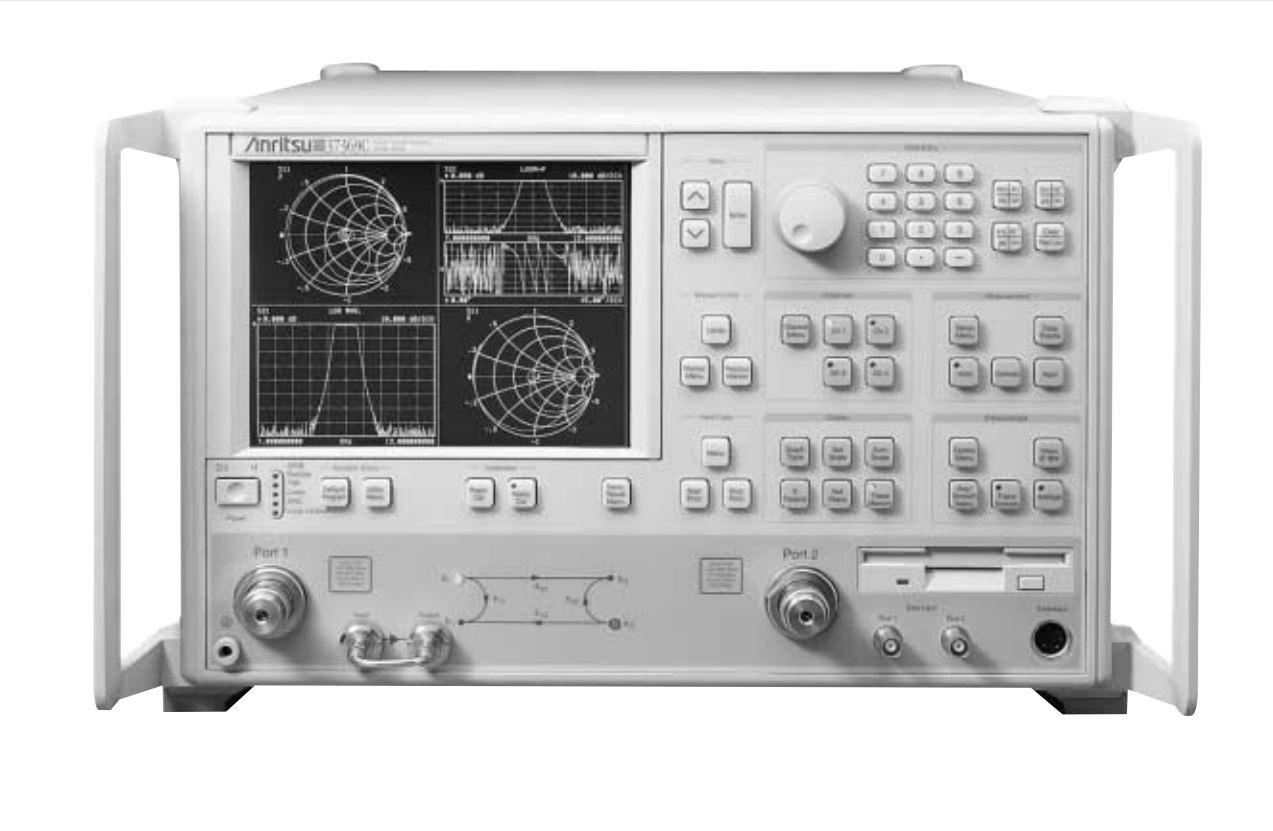

Anritsu 37397A Vector Network Analyzer
The Anritsu 37397A Vector Network Analyzer, 40 MHz to 65 GHz is elite instruments intended to make quick and precise S-parameter estimations of dynamic and aloof gadgets over the 40 MHz to 65 GHz go. These system analyzers incorporate an integrated source, S-parameter test set and tuned collector into a solitary smaller bundle that is perfect for seat top testing.
This model has four estimation channels and four S-Parameters (11, S21, S22, S12) or non-ratioed, complex information and output impedance; complex information or output induction and complex forward and invert transmission.
37397A model incorporates a Tune Mode, which streamlines Sweep Speed in tuning applications by refreshing forward S-parameters more often than turn around ones. This mode enables the client to choose the proportion of sending scopes to turn around clears after an entire 12-term alignment. The proportion of forward breadths to turn around scopes can be set anyplace between 1:1 to 10,00:1.
This Vector Network Analyzer has four Display Channels, each channel can show any S-parameter or client characterized parameter in any configuration with up to two follows per channel for a most extreme of eight follows at the same time. A solitary channel, two channels, overlaid channels or every one of the four channels can be shown at the same time.
In case you are interested in this model and you want to learn more about its options, functions and specifications, you will be able to find it’s manual on the ApexWaves.com website.
| Model | 37397A |
|---|---|
| Manufacturer | Anritsu ã‚¢ãƒ³ãƒªãƒ„æ ªå¼ä¼šç¤¾ |
| Series | 37000A |
| Type | Vector Network Analyzer |
| Power Range | -7 to -79 dBm |
| Channels | Four |
| Frequency Range | 40 MHz to 65 GHz |
| Operating Temperature Range | 0ºC to +50ºC |
| 37397A Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
