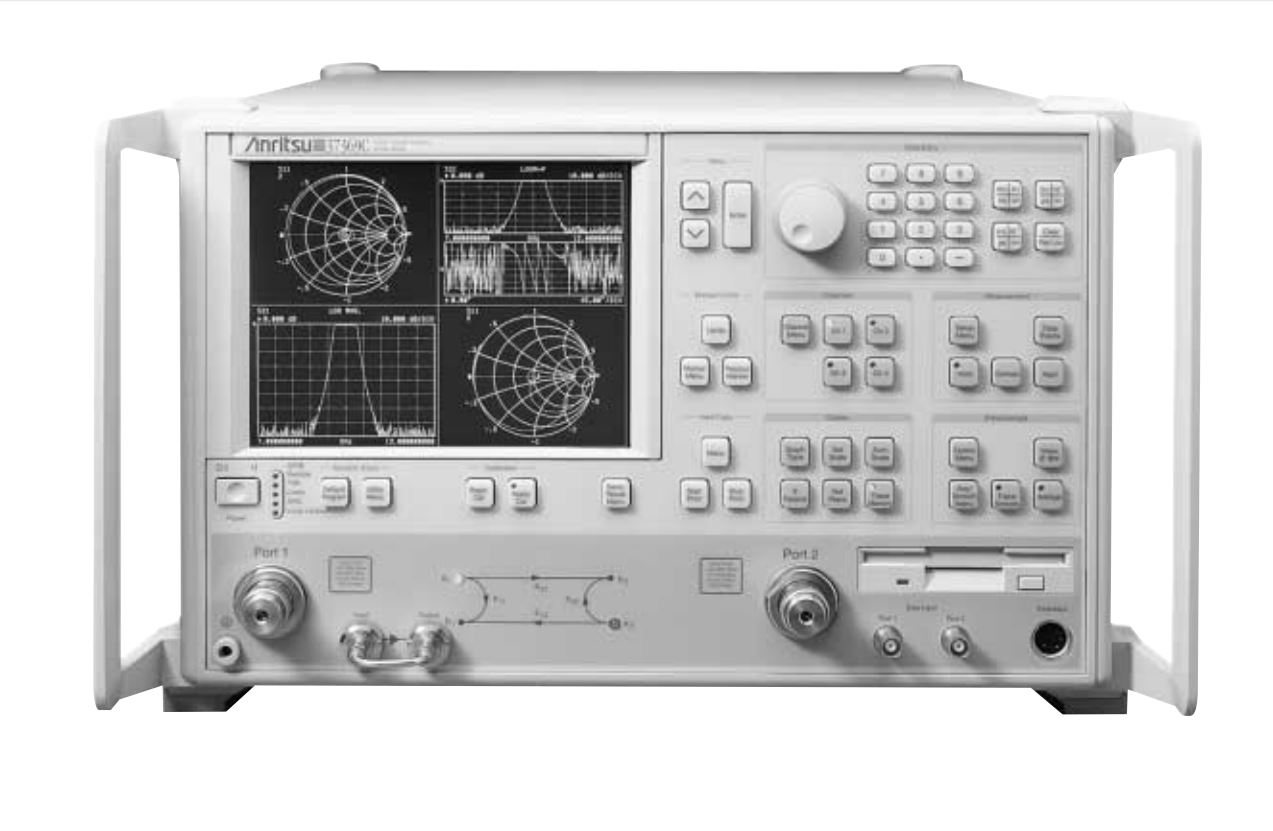

Anritsu Vector Network Analyzer 37217C
The Anritsu 37217C is a Microwave Vector Network Analyzer tool that offers fast and accurate measurements. The low-end frequency measurement capability for 37217C is 22.5 MegaHertz. The high-end frequency measurement limit is of the order of 8.6 GHz. This Vector Network Analyzer is controlled through microprocessors. The model incorporates many built-in functions to fulfill the user demands. A test set, signal source, and an analyzer subsystem are included, allowing the user to measure the characteristics of the complex vector signal.
The 37217C performs measurements through the simulated signal. The signal is fed to the device that is under testing. The device is connected to the front panel through port 1 or port 2. The VNA also enables the user to interact with the PCB of the main processor. It is offered by using the keypad on the front panel and a rotary knob. The 37217C includes the interface that is compatible for external keyboard use.
The signal source in the 37217C VNA generates the swept frequency and produces the signal that is then phase-locked. This helps to stabilize the output frequency. The device also offers a multiple source control mechanism and contains separate controls for two sources. The Anritsu 37217C also has an internal receiver, which the user can utilize to determine sweep ranges for these sources. The output power can also be determined separately. The Anritsu 37217C has a one hour suggested warm-up time; this is the minimum time suggested before operating the device.
| Model | 37217C |
|---|---|
| Manufacturer | Anritsu ã‚¢ãƒ³ãƒªãƒ„æ ªå¼ä¼šç¤¾ |
| Series | Anritsu 37000C |
| Type | Vector Network Analyzer |
| Frequency | 22.5 MHz to 8.6 GHz |
| Display | 8.5 inch color LCD |
| Operating Temperature | 23 +/- 3 deg C |
| Power Range | -20 dBm to 0 dBm |
| 37217C Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for 37217C:
| Model/Option | Description |
|---|---|
| 37217C Option 1 | Rack mount kit with slides |
| 37217C Option 1A | Rack mount kit with handles |
| 37217C Option 2A | High-speed time (distance) domain capability |
| 37217C Option 4 | External SCSI-2 hard disk drive compatibility |
| 37217C Option 7A | Replaces universal K connector (standard) with universal GPC-7 |
| 37217C Option 7N | Replaces universal K connector (standard) with universal N-male |
| 37217C Option 7NF | Replaces universal K connector (standard) with universal N-female |
| 37217C Option 7S | Replaces universal K connector (standard) with universal 3.5 mm-male |
