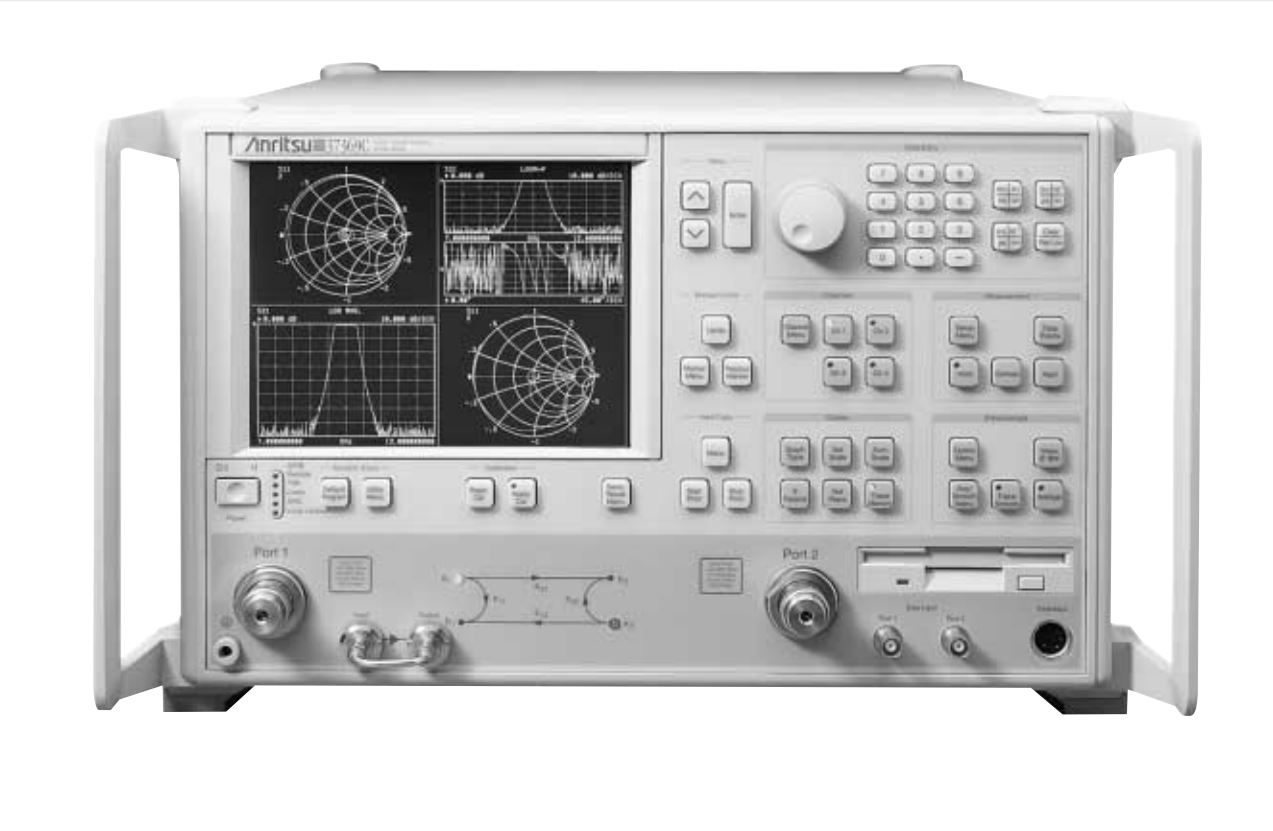

Anritsu Vector Network Analyzer 37347C
Anritsu 37347C is efficient and integrated Vector Network Analyzer, which provides the phase and scale measurement of several domains. These domains are the network, amplifiers, attenuators, and antennas. Its frequency range is from 40.0 MHz to 20.0 GHz. The input noise level is -65 dBm. This model performs absolute and accurate S-parameter measurements of frequency translation devices and offers the advanced level of measuring capabilities. The 37347C can be used for the measurement of both active and passive devices.
Anritsu 37347C offers many features for the accurate measurement of data, with measurement update rates of less than 2 ms per point. This feature provides phase lock and vector error correction for ideal accuracy. The 37347C provides a built-in storage device, with the hard disk drive, external drive on SCSI port, and internal 1.44 MB floppy drive. It also offers time domain analysis. This feature provides the impedance mismatch in the waveguide and other media.
Anritsu 37347C has several applications and benefits. It has a tune mode option for speed improvement and enhanced accuracy and a great display with color LCD and VGA display. It has four display channels. These channels display S-parameter and user-defined parameters. Each channel can display two traces at a time. The model also has a Lab view instrument driver, which aids in quickly to creating test programs. There are also independent markers to read out measurement data. These markers can find critical filter parameters. The 37347C has an internal source frequency resolution of 1 Hz, which measures data for the narrowband devices.
| Model | 37347C |
|---|---|
| Manufacturer | Anritsu ã‚¢ãƒ³ãƒªãƒ„æ ªå¼ä¼šç¤¾ |
| Series | Anritsu 37000C |
| Type | Vector Network Analyzer |
| Frequency | 40 MHz to 20 GHz |
| Display | 8.5 inch color LCD |
| Operating Temperature | 23 +/- 3 deg C |
| Power Range | -90 dBm to +5 dBm |
| 37347C Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for 37347C:
| Model/Option | Description |
|---|---|
| 37347C Option 1 | Rack mount kit with slides |
| 37347C Option 1A | Rack mount kit with handles |
| 37347C Option 2A | High-speed time (distance) domain capability |
| 37347C Option 4 | External SCSI-2 hard disk drive compatibility |
| 37347C Option 7A | Replaces universal K connector (standard) with universal GPC-7 |
| 37347C Option 7N | Replaces universal K connector (standard) with universal N-male |
| 37347C Option 7NF | Replaces universal K connector (standard) with universal N-female |
| 37347C Option 7S | Replaces universal K connector (standard) with universal 3.5 mm-male |
