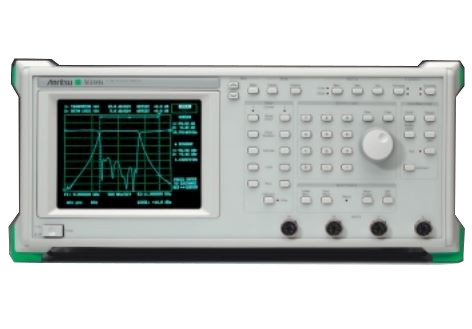

Anritsu 54147A Scalar Network Analyzer
The Anritsu 54147A Scalar Network Analyzer has an Apply/Remove Trace Memory Option: S = 1: Apply Trace Memory subtraction to choose channel (N) follow show. S = 0: Do not matter Trace Memory subtraction for chose channel (N) follow show. Follow memory subtraction is shown on the best two lines of the screen by the message '(– MEM)'. The order case represents setting as far as possible for portions 1 and 2. For the recurrence parameter, either "GHz" or "MHz" might be utilized; if nor is indicated, MHz is accepted for models 5407, 5409, and 5411; GHz is expected for every single other model. The "dB" memory aide as utilized as a part of the string is discretionary and might be utilized to enhance coherence. The order memory helpers might be in either upper or lower case, or blended; in any case, the section status character is case-sensitive. Up to ten fragments (1 – 10) might be determined, an entire arrangement of portion esteems might be entered utilizing a solitary charge, or each section might be entered exclusively. The section definitions are checked by the instrument and any cover, where a solitary recurrence has two unique esteems indicated by various portions, is dealt with as a charge language structure mistake. The information is entered in an ASCII arrange. Orders OCH and OCL return definitions for every one of the 10 conceivable portions regardless of what number of have been unequivocally characterized. Vague fragments have default esteems and lowercase Segment Status character. All recurrence data is output from models 54107, 54109, and 54111 in MHz and in GHz for every single other model (paying little mind to include design utilized).
If a breaking point is asked for with OCH or OCL when that farthest point is off or a Single Line Limit is utilized, the last known information or default esteems will be returned, yet all section status characters will be lowercase (d or s).
| Model | 54147A |
|---|---|
| Manufacturer | Anritsu ã‚¢ãƒ³ãƒªãƒ„æ ªå¼ä¼šç¤¾ |
| Series | Anritsu 54100A |
| Type | Scalar Network Analyzer |
| Frequency | 10 MHz to 20 GHz |
| Dynamic Range | −55 dBm to +16 dBm |
| Dimensions | 7 x 16.75 x 18.75 inches |
| Sweep speed | < 70 ms |
| 54147A Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for 54147A:
| Model/Option | Description |
|---|---|
| 54147A Option1 | Rack mounting with slides |
| 54147A Option 2 | Step attenuator 70 dB RF |
| 54147A Option 2A | Step attenuator 70 dB, 20 GHz MW |
| 54147A Option 2B | Step attenuator 70 dB, 26.5 GHz MW |
| 54147A Option 2C | Step attenuator 70 dB, 40 GHz MW |
| 54147A Option 2D | Step attenuator 70 dB, 50 GHz MW |
| 54147A Option 4 | 75 Ω source output (available to 3.0 GHz) |
| 54147A Option 5 | Add reference channel |
| 54147A Option 6 | Add external levelling |
| 54147A Option 7 | Internal distance-to-fault software |
| 54147A Option 8 | Internal relative group delay software |
| 54147A Option 12 | Add front panel cover |
| 54147A Option 13 | Add front mounted handles |
| 54147A Option 16 | +15 V DC supply for millimeter wave source module |
| 54147A Option 25 | Maintenance manual |
| 54147A Option 26 | Extra operation and GPIB programming manual |
| 54147A Option 33 | Canon printer |
