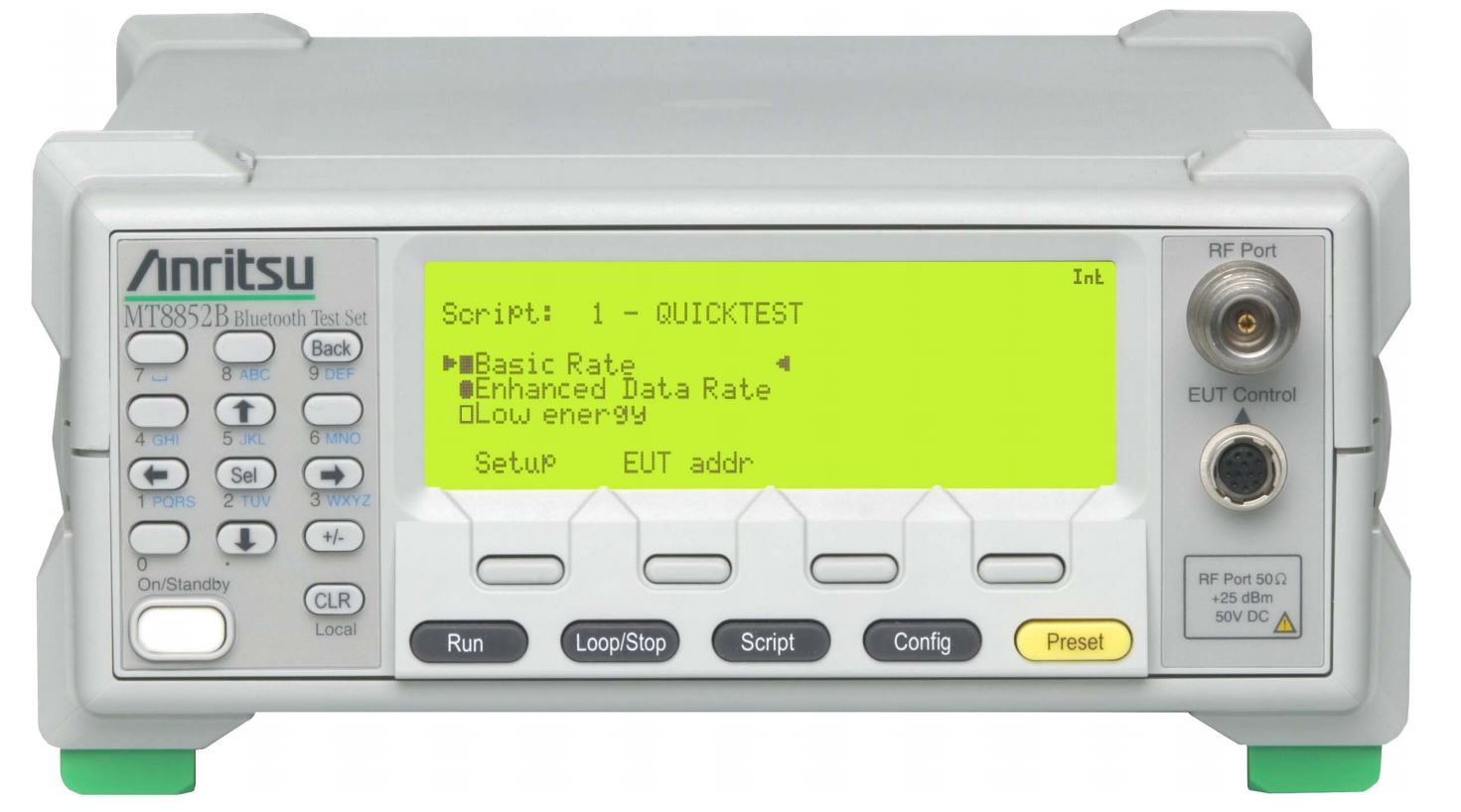

Anritsu MT8852B Bluetooth Test Set
The MT8852B is a high-performance Bluetooth test set from Anritsu. It is an innovative product that enables the user to test single mode and dual-mode devices. The Anritsu MT8852B Bluetooth supports different rates as per Bluetooth test specifications, such as Basic Rate (BR), Enhanced Data Rate (EDR), and Bluetooth low energy (BLE). There are various measurement capabilities available for the users, including the measurement of transmitting power, frequency, modulation, and sensitivity of the receiver. This model is compatible with Bluetooth SIG core specifications, including v4.0, 4.1, 4.2, and 5.0.
The Anritsu MT8852B Bluetooth test set incorporates PC applications as well, which allows the user to configure reference packets for testing requirements. The user can also enable the automatic trace of receiver sensitivity and view the power burst profile. This model offers a numeric display, which represents all test cases along with their pass or fail status. The user can control the EUT with the help of UART, USB, USB-Adapter, and two-wire interfaces.
The Anritsu MT8852B Bluetooth performs measurements as per Bluetooth® RF test specifications. The Anritsu MT8852B Bluetooth test set enables fast and accurate measurements. Thee instrument has the capability to support up to nine basic rates and six EDR test cases. It can also support 27 different cases for testing requirements for Bluetooth low energy equipment. In addition, there is an audio testing capability. The Anritsu MT8852B Bluetooth test set comes with BlueSuite Pro3 software, which offers graphical traces for different testing mechanisms. These include modulation, power ramp, individual channel measurement, and receiver search.
| Model | MT8852B |
|---|---|
| Manufacturer | Anritsu Corporation (ã‚¢ãƒ³ãƒªãƒ„æ ªå¼ä¼šç¤¾ Anritsu Kabushiki-gaisha) |
| Type | Bluetooth Test Set |
| Measurement Range | –50 to +22 dBm (average power), +23 dBm (peak power) |
| Output Power Range | –90 to 0 dBm |
| Frequency Range | 2.4 GHz to 2.5 GHz |
| Weight | <3.8 kg |
| MT8852B Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
