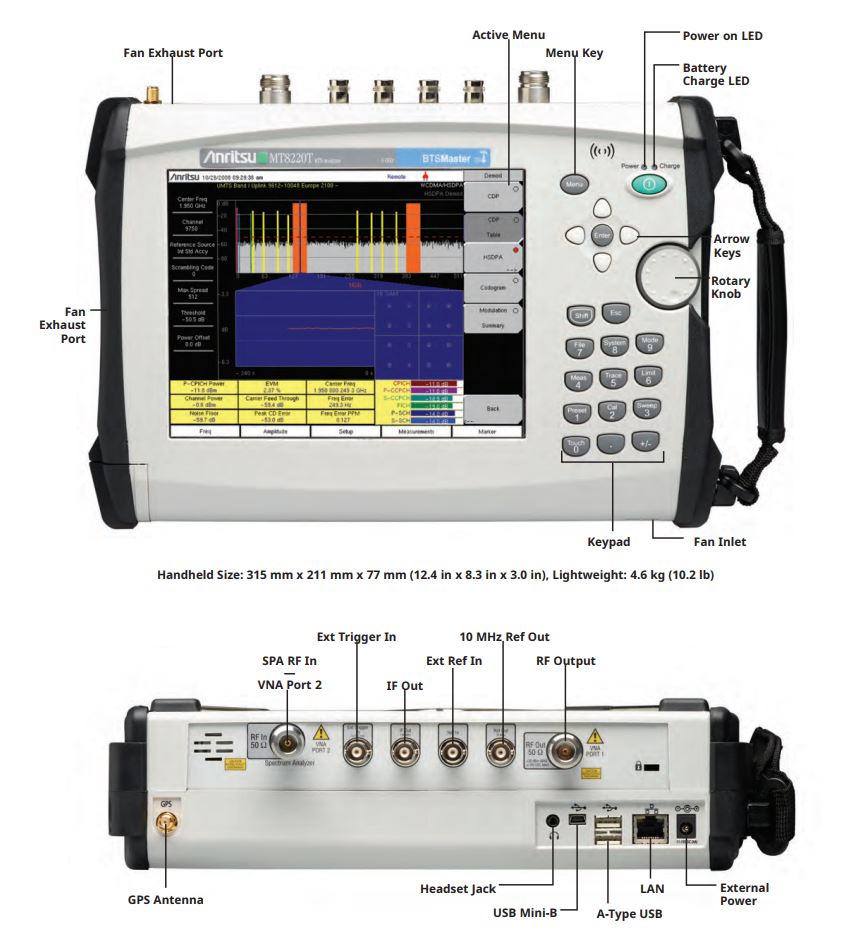

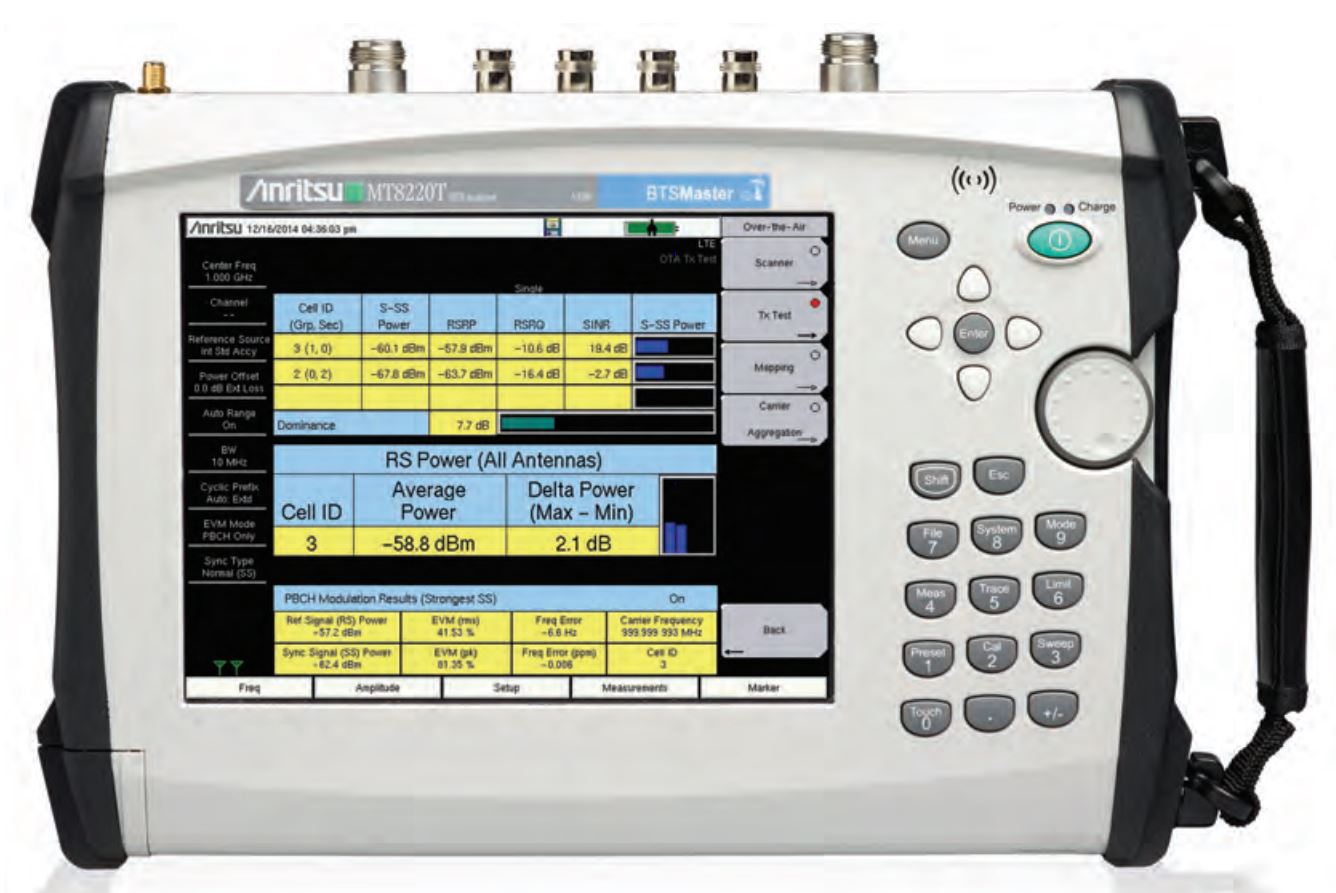

Anritsu BTS MT8220T Handheld Base Station Analyzer
The BTS Master MT8220T is Anritsu's third era of high performance handheld base station analyzer that has been particularly created to improve the support for 4G remote systems, as well as installed 2G, 3G, and WiMAX systems.
The degradation in Key Performance Indicators (KPIs), like dropped call and blocked call rates or low information throughput caused because of a breakdown at the cell site or obstruction, can be effectively and precisely analyzed down to the base station field replaceable unit (FRU) or the offending interfering signal with the BTS Master. In this model, you can use Line Sweep Tools (LST), which is a PC program that processes cable and antenna estimation traces. It gives an intense trace analysis and report generator for line sweepers.
Benchmarking attempted by Anritsu has demonstrated that experts furnished with base station analyzers have the important instruments to investigate degrading KPIs, which in turn can reduce churn. The BTS Master Base Station Analyzer can turn into your indispensable apparatus to accomplishing ideal system execution.
This model has a 20 MHz bandwidth modulation quality testing, a vector signal generator between 400 MHZ to 6 GHz for comprehensive DAS and receiver testing, many sweep modes for reliable interference chasing and investigation, 2 port cable and antenna analyzer, a power meter between 10 MHz to 7.1 GHz and a GPS receiver with antenna.
The manual for this model is available on the ApexWaves.com website for further information on its functions and specifications.
| Model | MT8220T |
|---|---|
| Manufacturer | Anritsu Corporation ã‚¢ãƒ³ãƒªãƒ„æ ªå¼ä¼šç¤¾ Anritsu Kabushiki-gaisha |
| Series | BTS Master |
| Type | Handheld Base Station Analyzer |
| VNA Frequency | 400 MHz to 6GHz |
| Measurements | Return loss, VSWR, SFP data, Layer 2 alarms. |
| Sweep speed | 4.5 ms/data points |
| Data storage and transfer | Memory card slot |
| Display | High Contrast and Night Vision Settings. |
| Battery Life | Up to 2.5 hours |
| Weight | 4.6 kg |
| MT8220T Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for MT8220T:
MT8220T FAQ- Anritsu BTS Master
Frequently Asked Questions
Question:
What is the MT8220T’s battery life?
Answer:
The battery life will last up to 2.5 hours.
Question:
What is the MT8820T designed for?
Answer:
The MT8820T is created to advance the support for 4G wireless networks.
Question:
What is the operating temperature range?
Answer:
The operating temperature range for the MT8820T is -10 degrees C to 45 degrees C.
