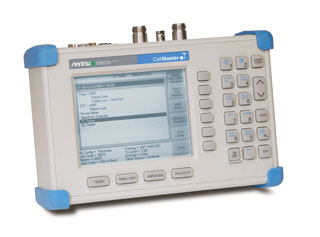

Cell Master MT8212A by Anritsu
A comprehensive multi-purpose base station test tool for engineers and technicians maintaining wireless systems!
With a combined functionality of a cable & Antenna Analyzer, T1/E1 Analyzer, Power Meter, and a Spectrum Analyzer the Cell Master MT8212A is a powerful one-box base station test tool for maintaining, troubleshooting and even deploying wireless communication infrastructures. It’s a handheld, lightweight test set and eliminates the need for a technician to learn, carry and operate multiple instruments.
Built for Outdoor Testing
It comes in a ruggedized design to withstand frequent drops, rough handling, and harsh weather conditions. A unique sealing arrangement protects Cell Master MT8212A from moisture and dirt. Being a battery operated, single handheld and lightweight package the Cell Master MT8212A is an easily operable and thus ideal instrument, specifically for field-based technicians and engineers.
Broad Measurement Capability (11 Basic Tests)
Cell Master MT8212A allows you to get several tests done without any requirement of multiple analyzers and tools. With a MT8212A alone you will be able to conduct these tests;
1. VSWR
2. Cable loss
3. Field strength
4. Channel power
5. Distance-to-fault
6. Transmitter power
7. Signal identification
8. Precision return loss
9. Interference analysis
10. T1/E1 measurements
11. Adjacent channel power ratio
Technical Specifications
• Cable & Antenna Analyzer Frequency Range 25 MHz to 4.0 GHz
• T1/E1 Analyzer Line Coding AMI, B8ZS
• Power Meter Frequency Range >10 MHz to 3.0 GHz
• Spectrum Analyzer Frequency Range 10 MHz to 3.0 GHz
General Specifications
• Supported Languages English, Spanish, French, German, Chinese, Japanese
• Built-in Trace Memory Up to 200 traces
• Display Adjustable Monochrome VGA (640x480)
• RF IN/OUT Type N, female, 50Ω
Powerful Software for Data Management
Cell Master MT8212A is delivered with a powerful, PC based data management and analysis program. It enables users for managing, analyzing and archiving trends, system performance and other vital parameters of base stations under monitoring. A professional report generator is also provided by the handheld software tools for cases when recorded data must be transferred.
