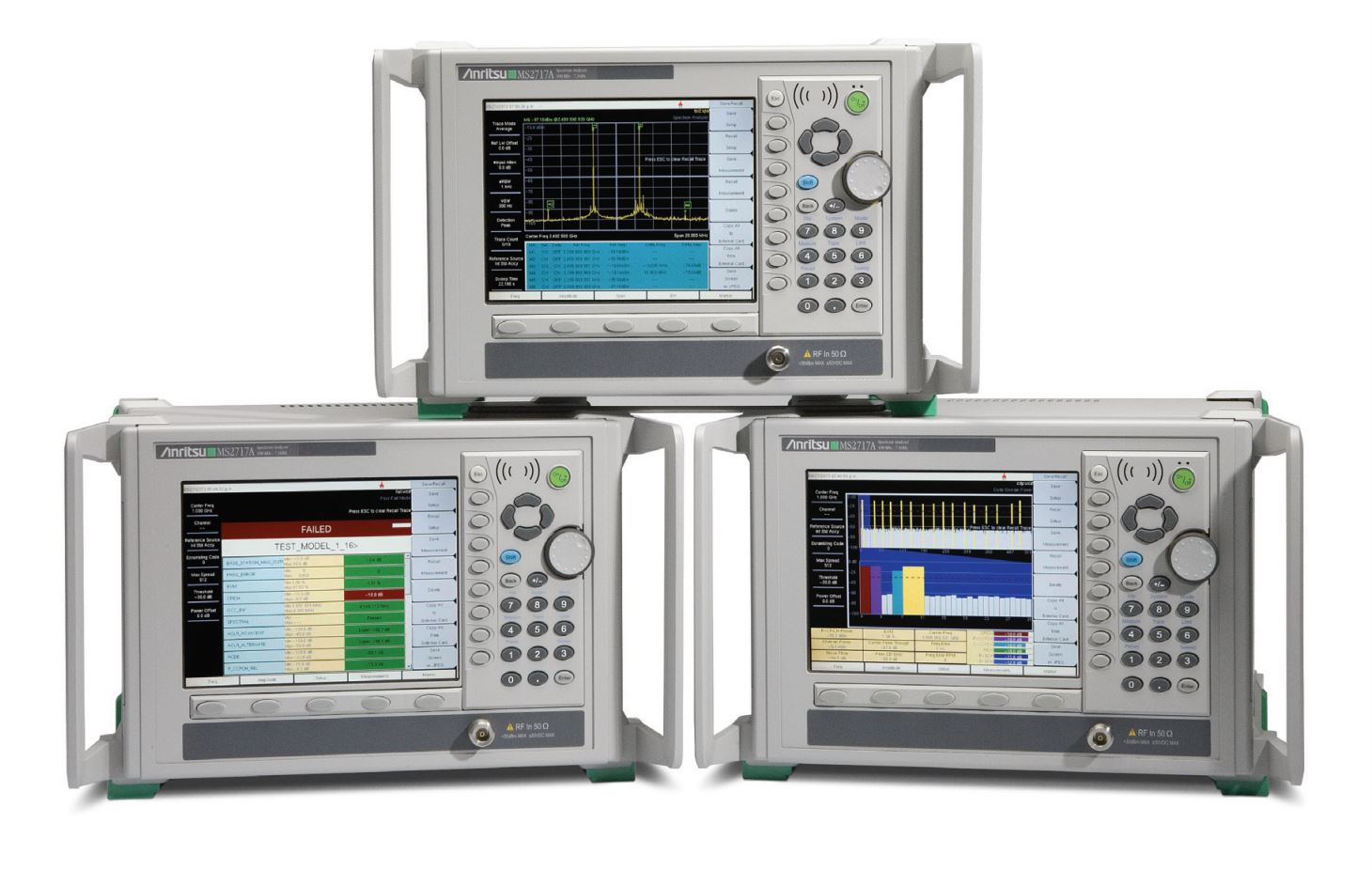

Anritsu MS2717A Economy Spectrum Analyzer
The Anritsu's MS2717A is the new Economy Spectrum Analyzer with prevalent execution and propelled abilities. The Anritsu MS2717A conveys reasonable range examination with unrivaled execution, propelled capacities, and current WCDMA signal investigation. With a Frequency Range between 100 kHz to 7.1 GHz the MS2717A effortlessly handles most remote frequencies. The sign of the MS2717A is phase noise execution: run of the mill – 110 dBc/Hz SSB phase noise at 10 kHz balances up to 6 GHz, which effortlessly measures most remote nearby oscillators and synthesizers. The MS2717A is ergonomically planned so controls are anything but difficult to learn and simple to use for enhancing efficiency in assembling, R&D, and useful testing. The best part is that the predominant dynamic scope of 100 dB enables quick and exact testing of remote parts that require outstanding linearity. The wide 8 MHz catch data transfer capacity underpins discretionary WCDMA/HSDPA and WCDMA demodulator estimations for streamlining trial of Node-Transmitters.
Among the standard estimations this model offers a Channel Power that measures the aggregate power in a predefined transmission capacity, ACPR that measures control levels in the channels instantly above and beneath the inside channel, C/I that measures transporter to impedance proportion and an Occupied Bandwidth that measures 99% to 1% control channel of a range.

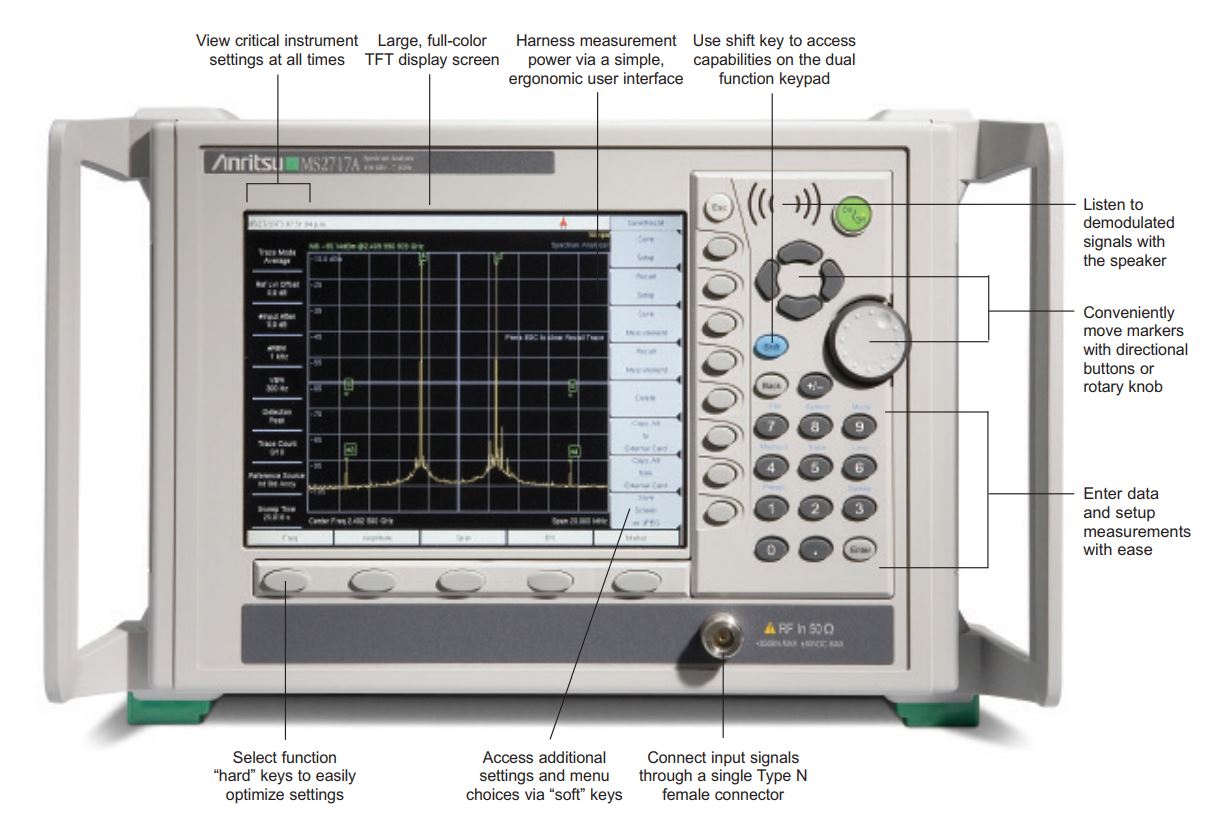

This simple to learn operation gadget has a 8.4 inch Color TFT Display (SVG), 64 MB Storage for 1,000 Traces, 1,000 Setups and 1 Year of Standard Warranty.
On the off chance that you are intrigued to learn more about this model capacity you can check its manual on the ApexWaves.com site.
| Model | MS2717A |
|---|---|
| Manufacturer | Anritsu Corporation (ã‚¢ãƒ³ãƒªãƒ„æ ªå¼ä¼šç¤¾ Anritsu Kabushiki-gaisha) |
| Series | Economy Spectrum Analyzer |
| Type | Spectrum Analyzer |
| VNA Frequency | 100 kHz to 7.1 GHz |
| Storage | 64 MB |
| Screen Size | 8.4 inch Color TFT Display |
| MS2717A Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for MS2717A:
MS2717A FAQ- Anritsu
Frequently Asked Questions
Question:
The ADC Self Test failed. What does this mean?
Answer:
The Analog to Digital converter failed to return an answer. Ensure that the temperature is within recommended limits and reset to the factory default setting.
Question:
What do I do when the high temp warning error appears?
Answer:
First, verify that the ventilation openings are clear and then check that the fan is running. Next, turn off the product and let it cool down for several minutes.
Question:
My Anritsu Spectrum Analyzer is displaying the error message “Unable to add additional limit points “%d is the maximum.”
Answer:
This message means that you attempted to add a limit point beyond the maximum amount of allowed points for your device.
Question:
What is the sweep time for the MS2717A Anritsu Spectrum Analyzer?
Answer:
The sweep time is a minimum of 200 ms or 10 us in zero span.
