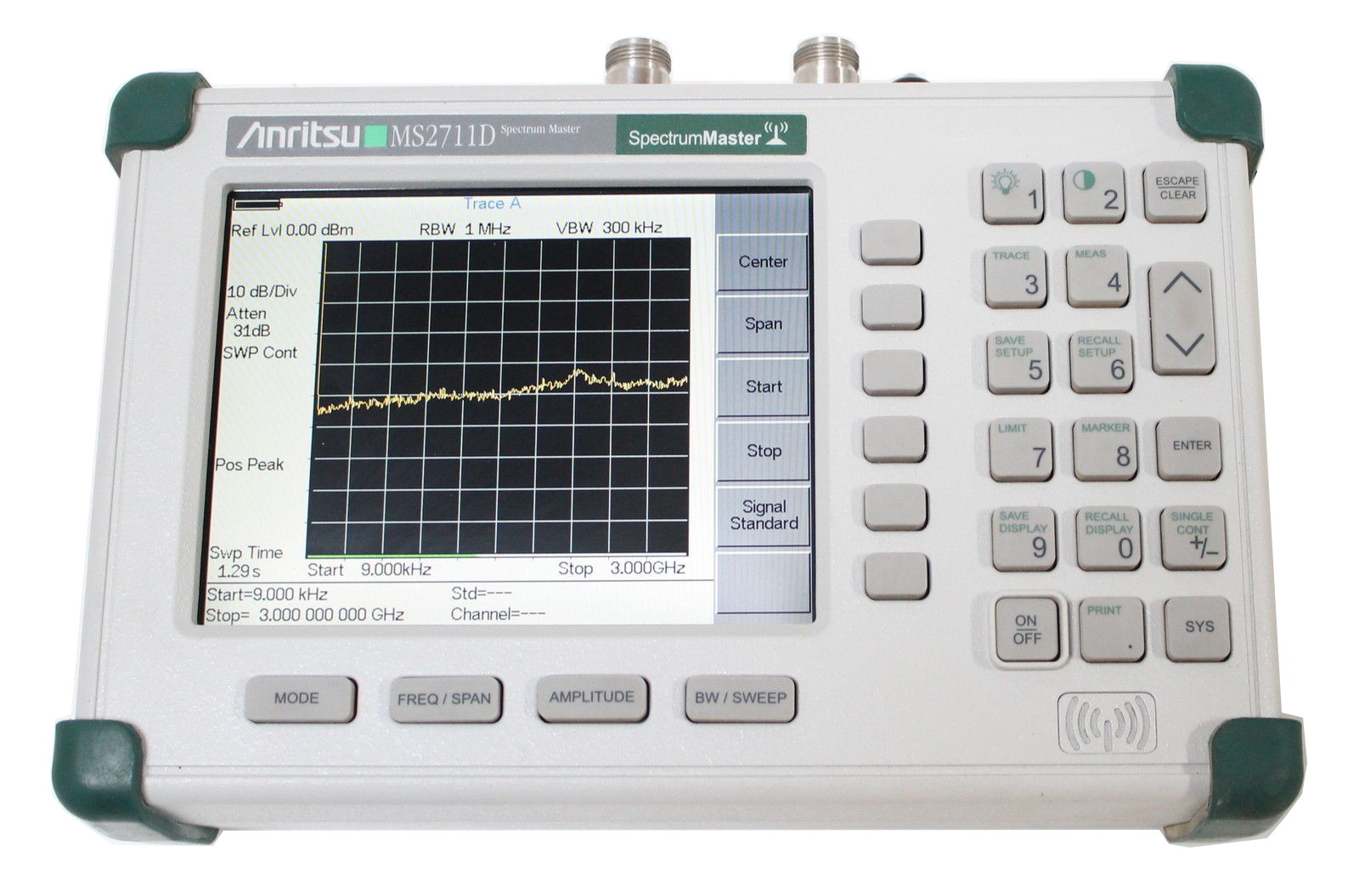

Anritsu Handheld Spectrum Analyzer MS2711D
The Anritsu Handheld Spectrum Analyzer MS2711D covers the 100 kHz to 3.0 GHz frequency range and comes with an integrated standard pre-amplifier. This model is known as a proven solution for planning, installation, maintenance, and troubleshooting of wireless networks. The MS2711D is a durable, light, battery operated handheld portable spectrum analyzer that can go "anywhere, anytime" without a backpack, thus it is a perfect product for applications like on-site system testing and site surveys. The notable features of the MS2711D are: its <5 lb. weight, auto, manual, and dynamic attenuator control, its ability to trace overly and averaging, it possesses 6 markers, and it can store as many as 15 test set-ups and 200 traces.
This Spectrum Analyzer is the lightest fully-functional one available in the market. Working with this analyzer is easy because measurements are obtained through a user-friendly, menu-driven interface. Its large, high-resolution and daylight readable TFT display makes interpreting of test results quick and efficient.
In addition to this, a comprehensive range of market capabilities including, center, delta and peek functions, provide users quick and in-depth analysis of displayed signals. For a simplified view of amplitude measurements, there are Limit Lines. Features like span, frequency, and amplitude can easily be configured for optimum performance
To meet today`s challenges around wireless systems, the MS2711D incorporates a pre-amp for an increased analyzer sensitivity and dynamic range. It also improves measurement time. The built-in pre-amplifier makes this model an effective one in measuring low-level signals. It has dedicated routines for one-button measurement of parameters like channel power, field strength and occupied bandwidth, etc.
| Model | MS2711D |
|---|---|
| Manufacturer | Anritsu |
| Series | Anritsu Handheld Spectrum Analyzers |
| Type | Handheld Spectrum Analyzer |
| Frequency | 100 kHz to 3.0 GHz |
| Dynamic Range | >65 dB |
| Sweep speed | < 1.1 seconds |
| Memory | 200 stored traces and 15 test setups |
| MS2711D Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for MS2711D:
MS2711D Anritsu Handheld Spectrum Analyzer FAQ-
Question:
What are some of the options for the MS2711D?
Answer:
The options include, but are not limited to: a built-in bias tee (option 10), an internal signal source (option 21), a channel scanner (option 27), a GPS receiver (option 31), and a CW signal generator (option 28).
Question:
What is the highest safe input level for the MS2711D?
Answer:
The highest input level that the MS2711D can stand is +43 dBm, which is the highest input level withstood by any type of spectrum analyzer.
Question:
Does the MS2711D have its own carrying case?
Answer:
Yes, the soft carrying case is part number 48258.
Question:
What is the sweep speed in full span for the MS2711D?
Answer:
The sweep speed in full span is the fastest of any portable spectrum analyzer at <1.1 seconds.
